Summary of Contents for IDTECK Star RF30

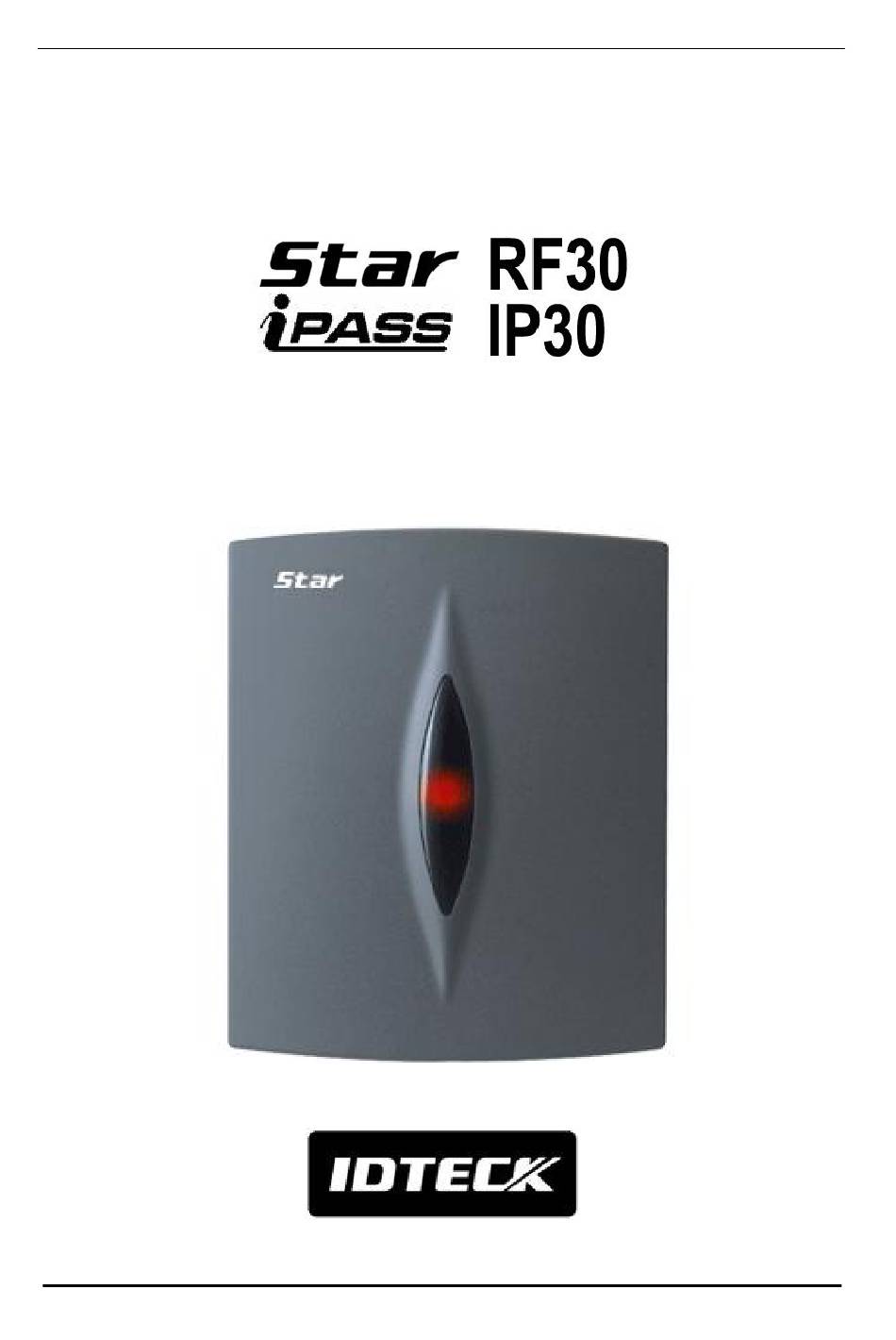

- Page 1 User’s Manual Proximity Card Reader...
-
Page 2: Table Of Contents
Table of Contents 1. Important Safety Instructions ..............3 2. General ....................3 3. Features ....................4 4. Specification ..................4 5. Identifying Supplied Parts ..............5 6. Installation ..................... 5 7. Wire Color Table of the Reader ............. 6 8. -
Page 3: Important Safety Instructions
If the product exhibits a distinct change in performance. 2. General The Star RF30 / iPASS IP30 is an elegant looking and attractive 12"(30cm) read range proximity reader which can be mounted on any flat wall surface. The Star RF30 / iPASS IP30 uses the electronics module in epoxy potting that ensures successful operations even in harsh environments. -
Page 4: Features
3. Features - 125KHz Proximity Card Reader - Star RF30: PSK Modulation (IDTECK Format) iPASS IP30: ASK[EM] Format - Read Range: 12 inches (30cm) - User Format Available - 26bit Wiegand (Default) / ABA Track II and RS232 (Optional) Output Format... -
Page 5: Identifying Supplied Parts
5. Identifying Supplied Parts Please unpack and check the contents of the box. Reader Module RF30 / IP30 Bezel User’s Manual (1ea) (1ea) (1copy) 6. Installation 6-1. Wall Mount Drill two 6-32 or M3 holes 3.3"(8.38cm) apart in vertical and drill one 1/2" hole for the reader cable 1.7"(4.31cm) apart from the top hole. -
Page 6: Wire Color Table Of The Reader
7. Wire Color Table of the Reader SIGNAL COLOR Main Power (+12V) Power Ground (GND) Black ABA Track II CP Out Orange Wiegand Data 0 Out / Green ABA Track II Data Out Wiegand Data 1 Out / White ABA Track II Clock Out Buzzer Control In Blue LED Control In... -
Page 7: Operation
9. Operation 9-1. Once power is applied, you should hear three beeping sounds and LED changes color to red-green-red indicating that the reader is in standby mode after a successful initialization and diagnostics. 9-2. Present proximity card to the reader until you hear the beeping sound and see the LED changes color to Green. -
Page 8: Fcc Registration Information
10. FCC Registration Information FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the equipment. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions;... -
Page 9: Warranty Policy And Limitation Of Liability
4) to any losses, defects, or damages caused by lightning or other electrical discharge, natural disaster, misuse, accident or neglect. This Limited Warranty is in lieu of all other warranties, obligations, or liabilities on the part of IDTECK, and IDTECK DISCLAIMS ANY AND ALL WARRANTY, WHETHER EXPRESS OR IMPLIED, OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.IDTECK does not, and cannot,... - Page 10 (Please refer to the IDTECK webpage for more details.) 2. RMA Code will be issued after the RMA Center reviews the RMA request form. 3. Enclose the product along with the RMA Code and send it to IDTECK RMA Center. (Product without RMA Code is not accepted.) If you have any questions or problems regarding the RMA services, please contact us using the contact information below.
- Page 11 MEMO...
- Page 12 The specifications contained in this manual are subject to change without notice at any time. 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong, Gangseo-Gu, Seoul, 157-030, Korea Tel : +82-2-2659-0055 Fax : +82-2-2659-0086 E-mail : webmaster@idteck.com MARRF30HE2X Sep. 2008 Copyright © IDTECK Co., Ltd.
