IDTECK STAR RFK101 Instruction

Proximity reader with keypad
Hide thumbs Also See for STAR RFK101:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

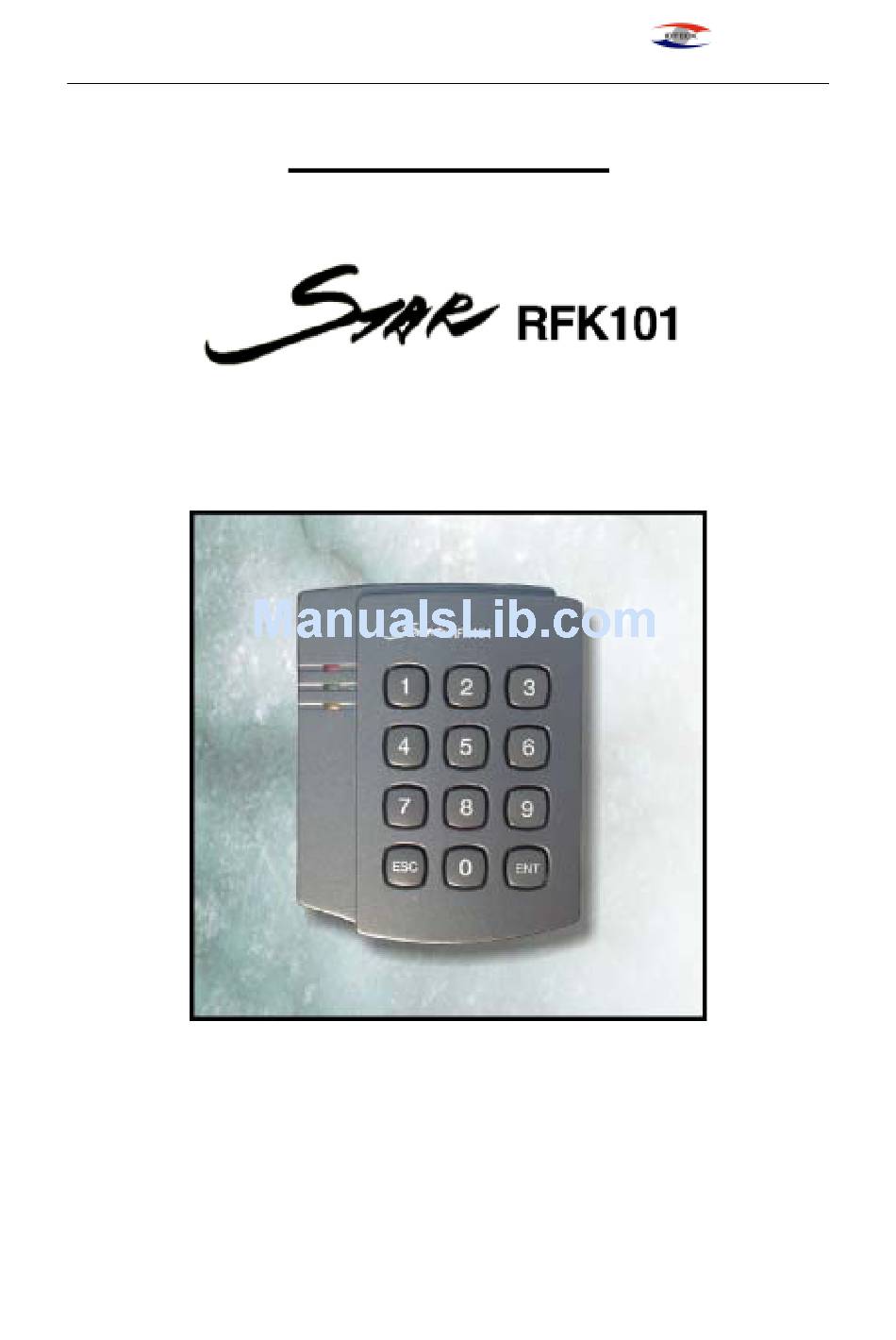

ID-TECK
PROXIMITY READER
STAR RFK101
INSTRUCTION
Proximity Reader with KEYPAD
ID TECK Co. Ltd.
RFK101-20011219
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAR RFK101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDTECK STAR RFK101

Summary of Contents for IDTECK STAR RFK101

  • Page 1 ID-TECK PROXIMITY READER STAR RFK101 INSTRUCTION Proximity Reader with KEYPAD ID TECK Co. Ltd. RFK101-20011219 - 1 -...

  • Page 2: Table Of Contents

    ID-TECK PROXIMITY READER STAR RFK101 CONTENTS 1. Introduction page 3 2. Identifying supplied parts page 3 3. Specification page 3 4. Installation page 4 5. Wire Color Table of the Reader page 5 6. Wire Connection to Controller page 6 7.

  • Page 3: Introduction

    STAR RFK101 1. Introduction The STAR RFK101 is an elegant looking and built in an attractive 4" read range proximity reader with KEYPAD. The RFK101 has back lighting on the KEYPAD that ensure you successful operation even the night operating. The KEYPAD allows you to access door with proximity card and personal PIN numbers.

  • Page 4: Installation

    ID-TECK PROXIMITY READER STAR RFK101 Color Dark Pearl Gray Operating Environment -35℃ ~ +65℃, 10~90% Humidity Overall Size(WxHxD) 3.40"x3.94"x1.22"(487x100x31mm) Weight 0.412 lbs(190 g) Output Format 26bit Wiegand, RS-232, ABA Track II Magstripe Output Format with 8bit Burst or 3x4 Matrix Format for PIN 4.

  • Page 5: Wire Color Table Of The Reader

    ID-TECK PROXIMITY READER STAR RFK101 5. Wire Color Table of the Reader POWER Power(DC 12V) +12V Red wire Power(DC 12V) 0V(GND) Black wire OUTPUT ABA Track II(Card Present) Yellow wire ABA Track II(Clock), Wiegand Data1 White wire ABA Track II(Data), Wiegand Data0...

  • Page 6: Wire Connection To Controller

    ID-TECK PROXIMITY READER STAR RFK101 6. Wire Connection to Controller 6-1. 26bit Weigand+RS232(for Card) and 8bit Burst format(for PIN) . The Reader transmits Card data to Wiegand Data0,Data1 and RS-232 TX line. . The Reader transmits PIN data to Wiegand Data0 and Data1.(8bit Burst format.) 6-2.

  • Page 7: Operation

    ID-TECK PROXIMITY READER STAR RFK101 7. Operation . Connector Layout 7-2. Output mode Setting Table 1. Jumpers Setting Card Output format Keypad Output format close close 26bit Wiegand + RS232 8bit Burst (or 3x4 Matrix) open close 26bit Wiegand + RS232...
  • Page 8 ID-TECK PROXIMITY READER STAR RFK101 7-3. Operation 1. Once the power is applied, you should hear 3 times of initial beep sounds and red And yellow LEDs on indicating that the reader is in standby mode after a successful initialization and diagnostics.

  • Page 9: Output Format

    ID-TECK PROXIMITY READER STAR RFK101 8. Output Format 8-1. 26bit Wiegand output format 1. Data format Bit 1 : Even parity of bit 2 ~ bit 13 Bit 2～9 : Facility code (000 ~ 255) Bit 10～25 : ID number (00000 ~ 65,535)
  • Page 10 ID-TECK PROXIMITY READER STAR RFK101 2. Data format(for PIN) 3. Timing diagram RFK101-20011219 - 10 -...
  • Page 11 ID-TECK PROXIMITY READER STAR RFK101 8-3. 8bit Burst output format(for PIN) 1. Data format 2. Timing diagram RFK101-20011219 - 11 -...
  • Page 12 ID-TECK PROXIMITY READER STAR RFK101 8-4. RS-232 output format 1. Data format(Baud rate : 9600bps) +15V Space (=0) Indeterminate Region Mark (=1) 8 Data Bits -15V 2 Stop Bits Start Bit Data packet corresponding to ASCII character 'A' 2. Data structure...

  • Page 13: Fcc Registration Information

    ID-TECK PROXIMITY READER STAR RFK101 9. FCC REGISTRATION INFORMATION FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the equipment.

  • Page 14: Warranty And Service

    ID-TECK PROXIMITY READER STAR RFK101 10. Warranty and Service The following warranty and service information applies only to the United States of America and Republic of Korea. For the information in other countries, please contact your local distributor. To obtain in or out of warranty service, please prepay shipment and return the unit to the service facility listed below.
