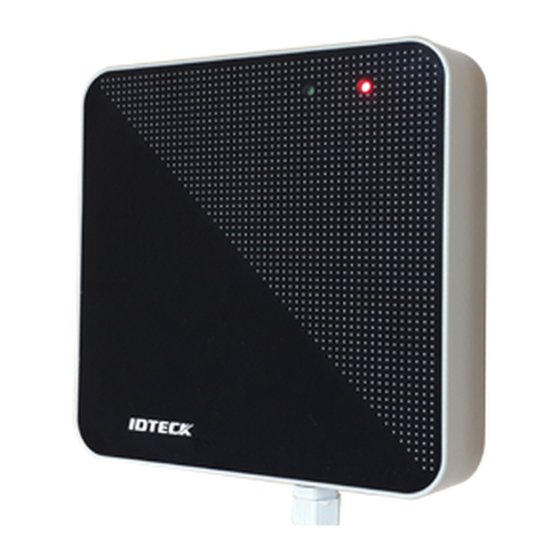

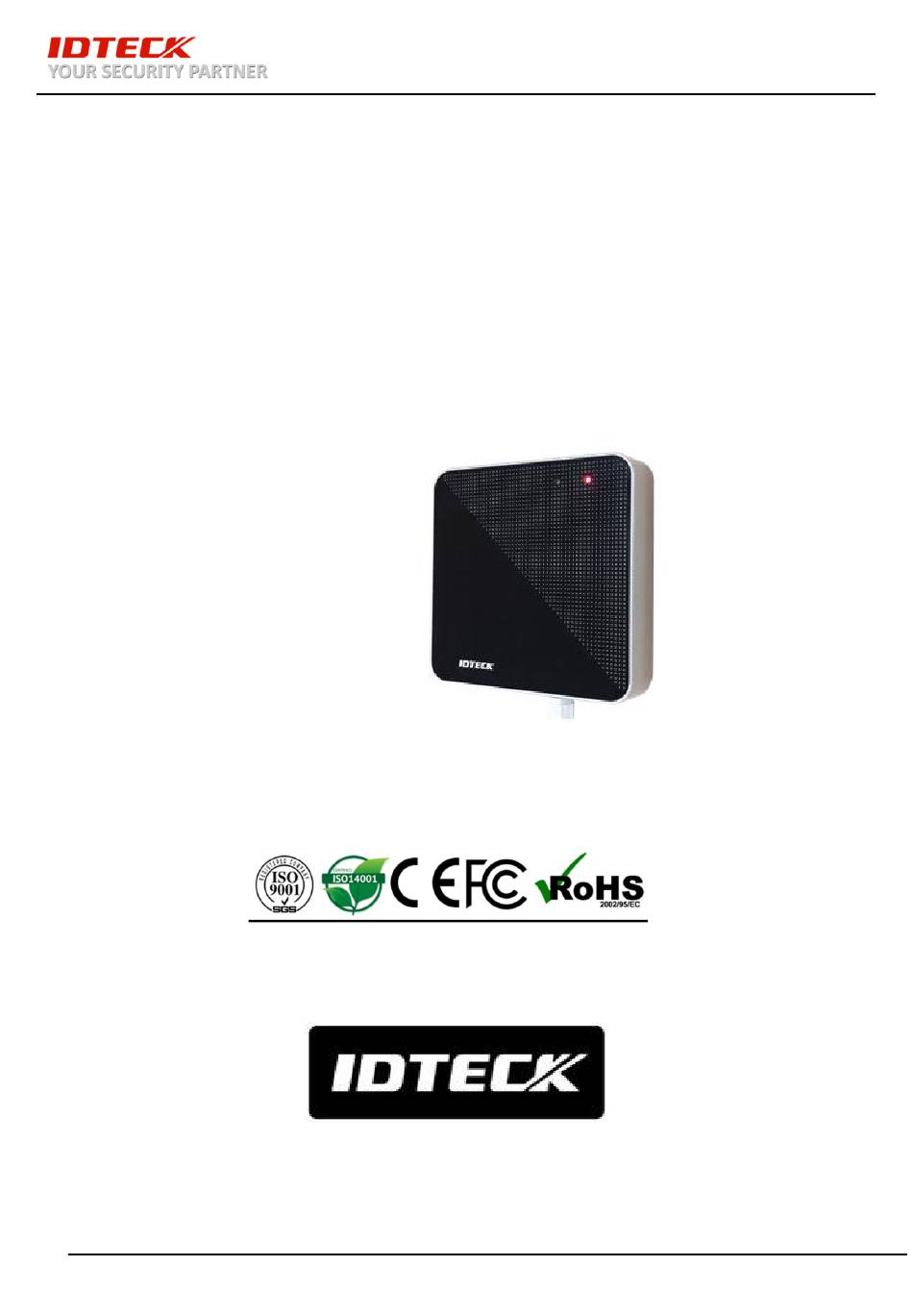

- Page 1 Quick Installation Guide NEO RF245 LONG RANGE READER FFQG112S December. 2016 Copyright IDTECK Co., Ltd.
-
Page 2: Table Of Contents
1. IDENTIFYING SUPPLIED PARTS ································································································ 3 2. INSTALLATION OF THE PRODUCT ··························································································· 4 3. CABLE COLOR ······························································································································ 7 4. WIRE CONNECTION TO CONTROLLER ··················································································· 8 5. OPERATION ·································································································································· 9 6. PRODUCT MANUAL DOWNLOAD INFORMATION ····························································13 FFQG112S December. 2016 Copyright IDTECK Co., Ltd. -
Page 3: Identifying Supplied Parts
1. Identifying Supplied Parts Unpack and check the contents. If any of these parts are missing, contact your distributor. NEO RF245 Quick Installation Guide Mounting Bolts Mounting Bracket ON/OFF Switch for Reading range setting FFQG112S December. 2016 Copyright IDTECK Co., Ltd. -
Page 4: Installation Of The Product
Quick Installation Guide 2. Installation of the Product FFQG112S December. 2016 Copyright IDTECK Co., Ltd. - Page 5 Quick Installation Guide Extra Purchase Reader hood, bargate, loop coil and speed bump are for extra purchase. (IDTECK doesn’t offer these contents) Reading Angle of NEO RF245 The reading angle of RF245 is approximately 90 degree at the front side of the reader. However the reader has about 10% of the maximum reading distance at the rear side of the reader.
- Page 6 F.2 Multiple Gates with OTR & HOLD Control ※ Note: 1. NEO RF245 is applicable in a various way as it shows in F.1 and F.2. However, because of the characteristic of a long range reader, we recommend to have enough space between each of them when installing multiple RF245 (ex: F.1 : 3m, F.2 : 5m at least).
-
Page 7: Cable Color
The maximum current drain rate is 1 Amps. HOLD input is used to force NEO RF245 to read a tag when loop sensor detects any approaching vehicle. When a vehicle is detected, NC contact should be used, and the input should also be disconnected from GND completely. -
Page 8: Wire Connection To Controller
Connect both yellow (OTR, one time reading) and white (WIEGAND-1) cable to the ON/OFF switch (the switch must be ON when setting up reading range). Turn ON the switch when setting up reading range. Make sure to turn it OFF after a desired range is setup. FFQG112S December. 2016 Copyright IDTECK Co., Ltd. -
Page 9: Operation
When the HOLD Control Input (Blue wire) is grounded, it will prevent the reader from reading the tag. This can be used for vehicle detectors such as Loop Coil Sensor. Hold Input with OTR function will only detect on tag ID. Please refer to the following figure. FFQG112S December. 2016 Copyright IDTECK Co., Ltd. - Page 10 Quick Installation Guide - Reading range setting method ☞ NEO RF245 is suitable for any installation environment that the users can freely set the reading range at the desired distance. Power off NEO RF245. Connect yellow (OTR, one time reading) and white (Wiegand_D1) cables together.
- Page 11 (Bee Bee Beep) will be generated. Now the distance of that 10 time of scanning will be programmed as a new reading distance. When finished, the reading range setup will be finalized and green LED will turn off. FFQG112S December. 2016 Copyright IDTECK Co., Ltd.
- Page 12 ※ Note: 1. Reading range can have a margin of error that depends on installation circumstances. 2. The default reading range of NEO RF245 is set to maximum. (Reading Range is definable according to each site's properties.) FFQG112S December. 2016 Copyright IDTECK Co., Ltd.
-
Page 13: Product Manual Download Information
Please contact us as below if you have any enquiries or issues arise. IDTECK Headquarter 5F, Ace Techno Tower B/D, 468, Gangseo-ro, Gangseo-Gu, Seoul, 07573, Korea Tel: +82 2 2659 0055 Fax: +82 2 2659 0086 E-mail: webmaster@idteck.com Website: www.idteck.com FFQG112S December. 2016 Copyright IDTECK Co., Ltd. - Page 14 The specifications contained in this manual are subject to change without notice at any time. 5F, Ace Techno Tower B/D, 468, Gangseo-ro, Gangseo-Gu, Seoul, 07573, Korea Tel : +82-2-2659-0055 Fax : +82-2-2659-0086 E-mail : webmaster@idteck.com FFQG112S December. 2016 Copyright IDTECK Co., Ltd.
