AN2834
How to get the best ADC accuracy
This amplifier can adapt the input signal range to the ADC range. It can also insert offsets
between the input signal and the ADC input. When designing the preamplifier, care must be
taken not to generate additional errors (such as additional offset, amplifier gain stability or
linearity, frequency response).

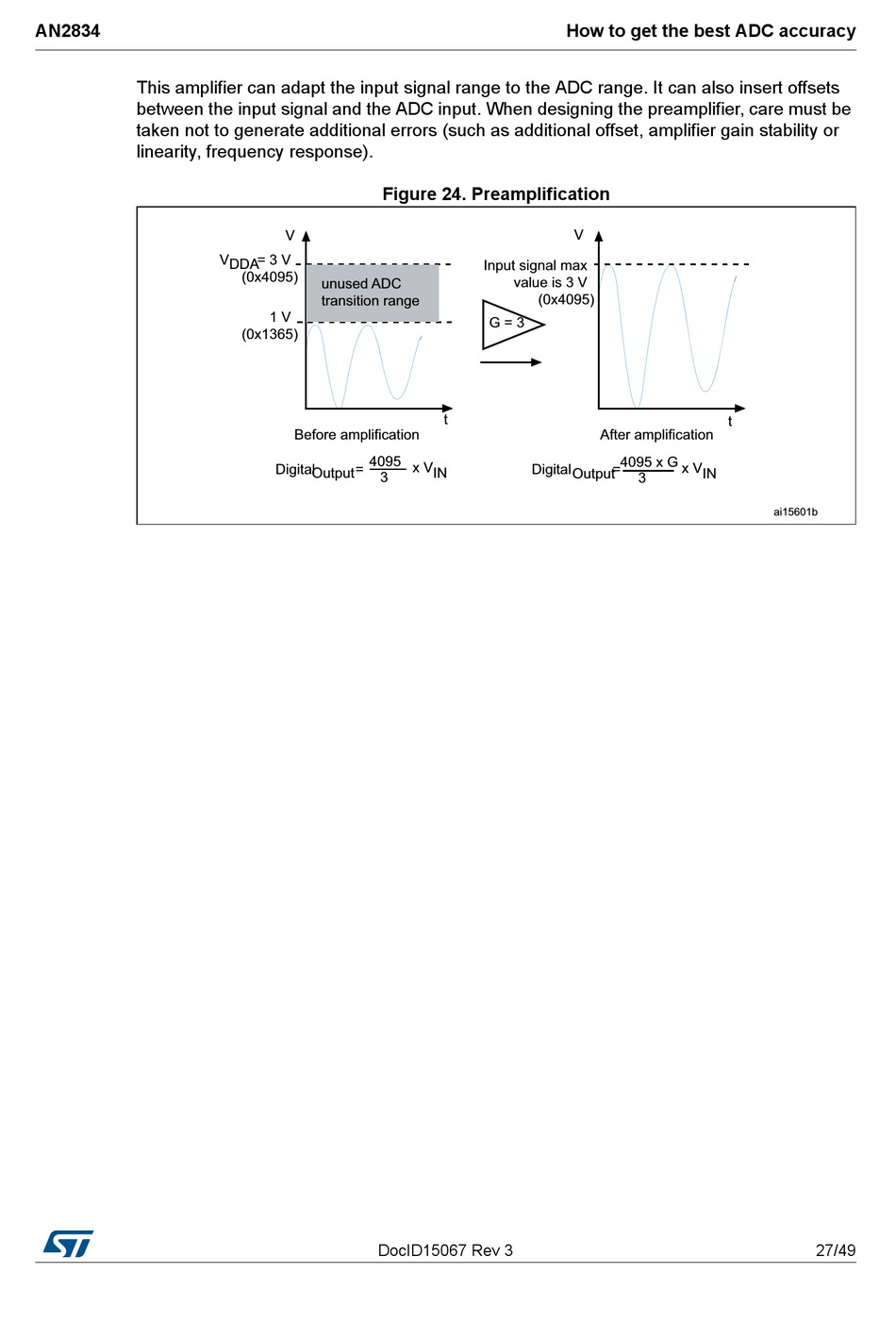

Figure 24. Preamplification
DocID15067 Rev 3
27/49
48
