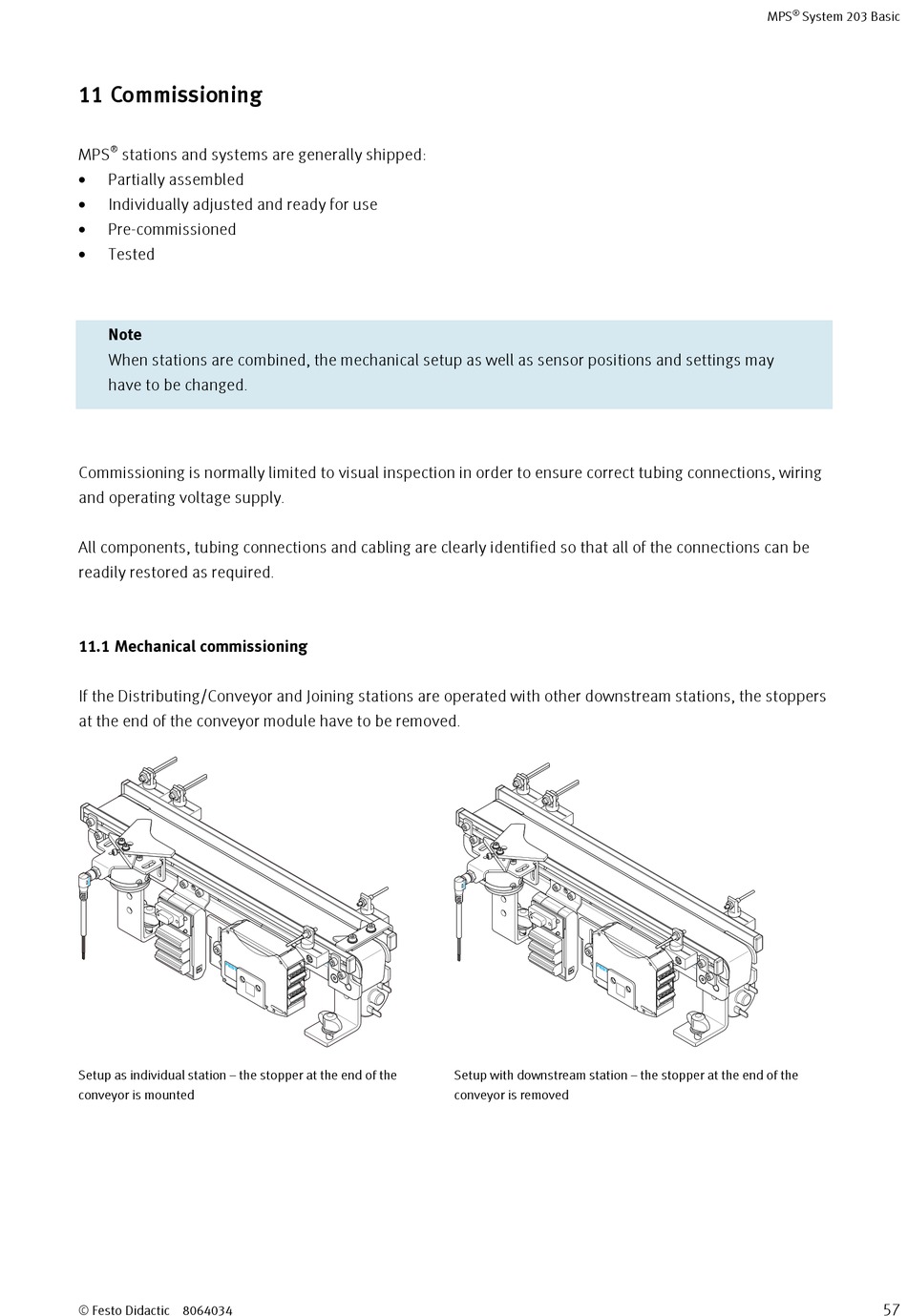

11 Commissioning


MPS stations and systems are generally shipped:

Partially assembled

Individually adjusted and ready for use

Pre-commissioned

Tested
Note
When stations are combined, the mechanical setup as well as sensor positions and settings may
have to be changed.
Commissioning is normally limited to visual inspection in order to ensure correct tubing connections, wiring
and operating voltage supply.
All components, tubing connections and cabling are clearly identified so that all of the connections can be
readily restored as required.

11.1 Mechanical commissioning

If the Distributing/Conveyor and Joining stations are operated with other downstream stations, the stoppers
at the end of the conveyor module have to be removed.
Setup as individual station – the stopper at the end of the
conveyor is mounted
© Festo Didactic 8064034
Setup with downstream station – the stopper at the end of the
conveyor is removed
®
