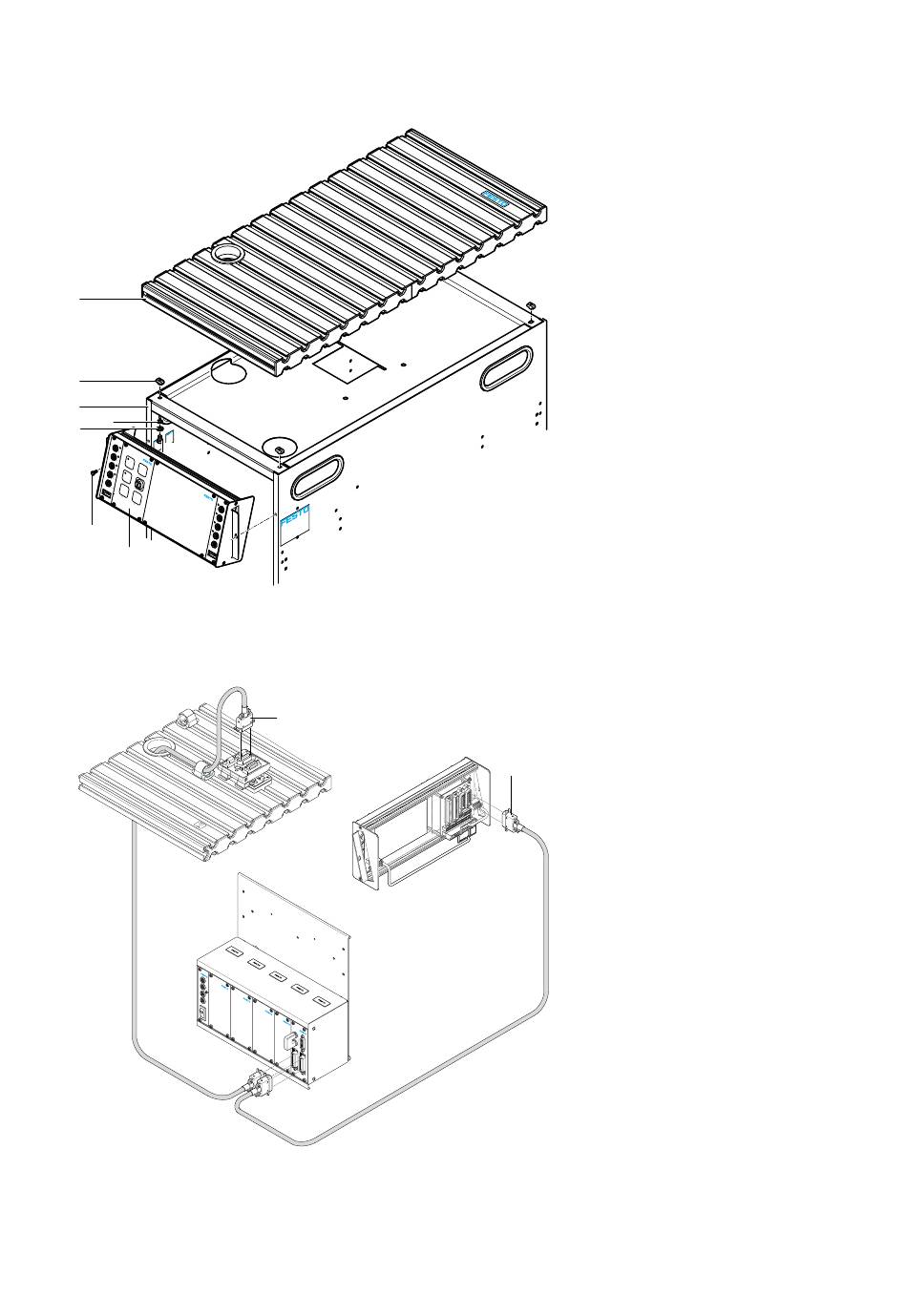

11.6 Mounting the profile plate and the control console

1
2 (4x)
3
4 (4x)
5 (4x)
6 (4x)
7 (2x)
8

11.7 Cable connections

60
1
C
A
B
1 Profile plate
2 Hammer head nut, M6-32 (4 ea.)
3 Trolley
4 Serrated washer, J6.4 (4 ea.)
5 Washer, B-6.4 (4 ea.)
6 Socket head screw, M6x10 (4 ea.)
7 Sheet metal screw, 3.5x9 (2 ea.)
8 Control console
1
PLC board to station
If the SysLink 19" system plug module
is used: connect socket A to the SysLink
socket on the C interface using a
2
SysLink cable, or the SysLink socket at
the station's digital I/O terminal.
2
PLC board to control console
If the SysLink 19" system plug module
is used: using a SysLink cable, connect
socket B to the SysLink socket on the
control console.
PLC board to power pack
Insert the 4 mm safety plugs into the
sockets on the power pack.
PC to PLC
Connect your PC to the PLC via a
programming cable.
PLC to bus node
Connect the PLC to the bus node using a
bus line.
