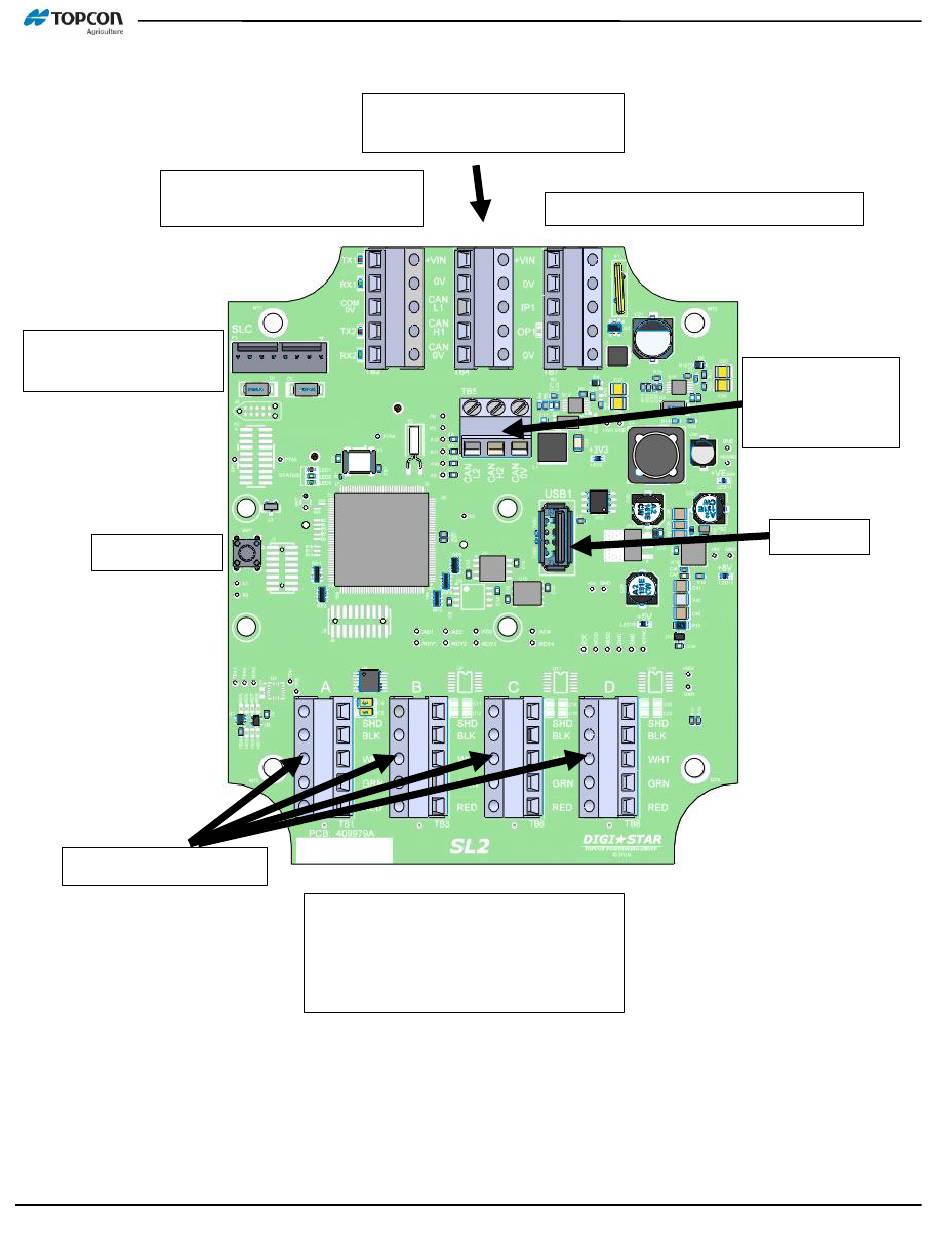

PCB AND WIRING CONNECTIONS

PCBA

RS232 COM1 & COM2, COM
Ground (current limited)
SLC/ Remote Port
(SPI bus - proprietary)
Reset button
Load Cell connections
8
Power, CAN1/ ISOBUS,
CAN Ground (current limited)
Single scale models: All 4 terminal
connections are SCALE A
Multi-scale models: Each terminal is
a different scale; A, B, C, D
Scale Link 2 Technical Manual
ACC Power, Sensor Input, 3A Output
CAN2 port,
CAN2 Ground
(current limited)
USB port
