Icom IC-9700 Reference Manual page 26

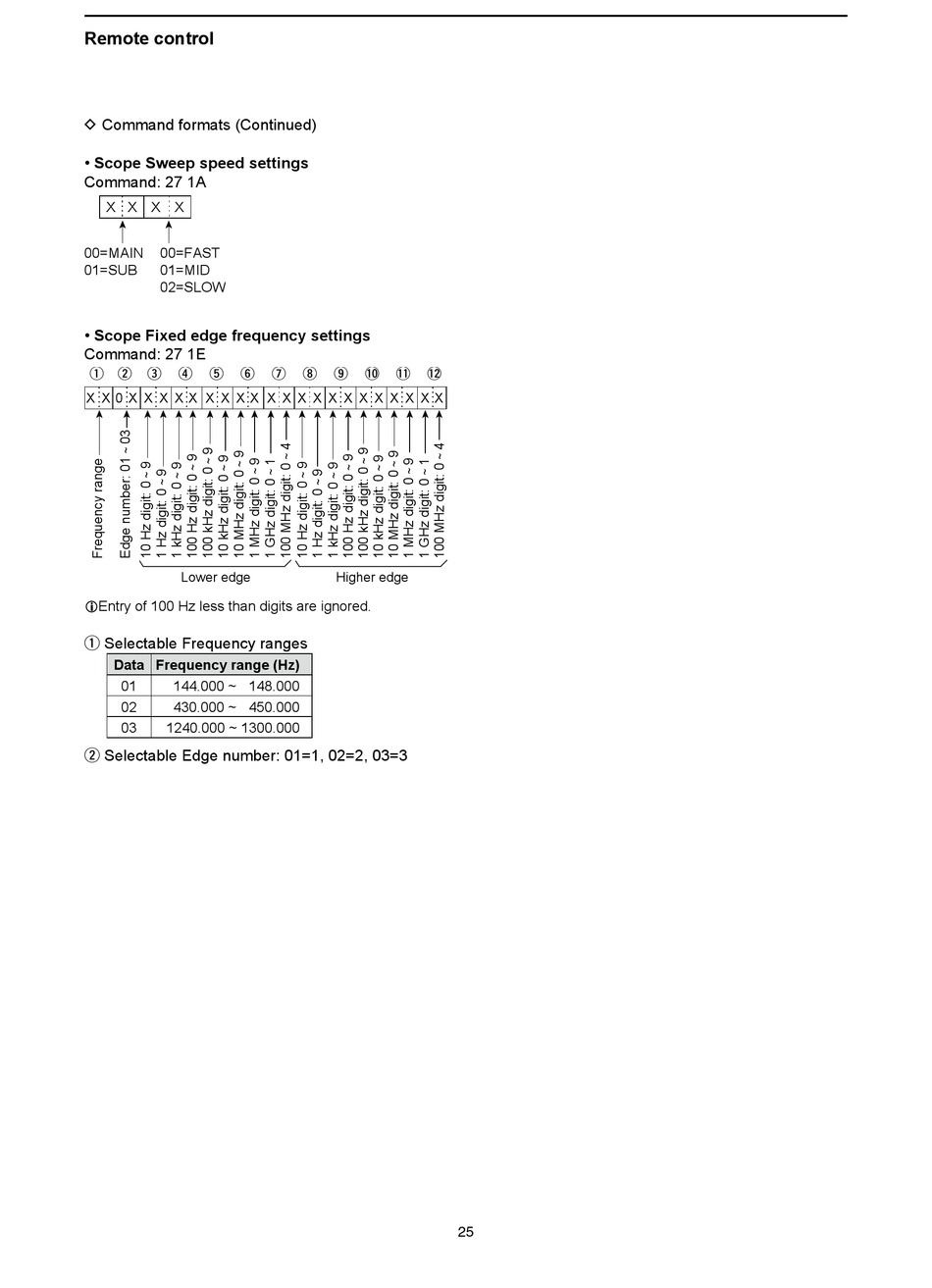

Remote control
D Command formats (Continued)
• Scope Sweep speed settings
Command: 27 1A
X X X X
00=MAIN 00=FAST
01=SUB 01=MID
02=SLOW
• Scope Fixed edge frequency settings
Command: 27 1E
q w e r t y
X X 0 X X X X X X X X X X X X X X X X X X X X X
Lower edge
L Entry of 100 Hz less than digits are ignored.
q Selectable Frequency ranges
Data Frequency range (Hz)
01 144.000 ~ 148.000
02 430.000 ~ 450.000
03 1240.000 ~ 1300.000
w Selectable Edge number: 01=1, 02=2, 03=3
u i o !0 !1 !2
Higher edge
25
