Icom IC-9700 Reference Manual page 19

Remote control
D Command formats (Continued)

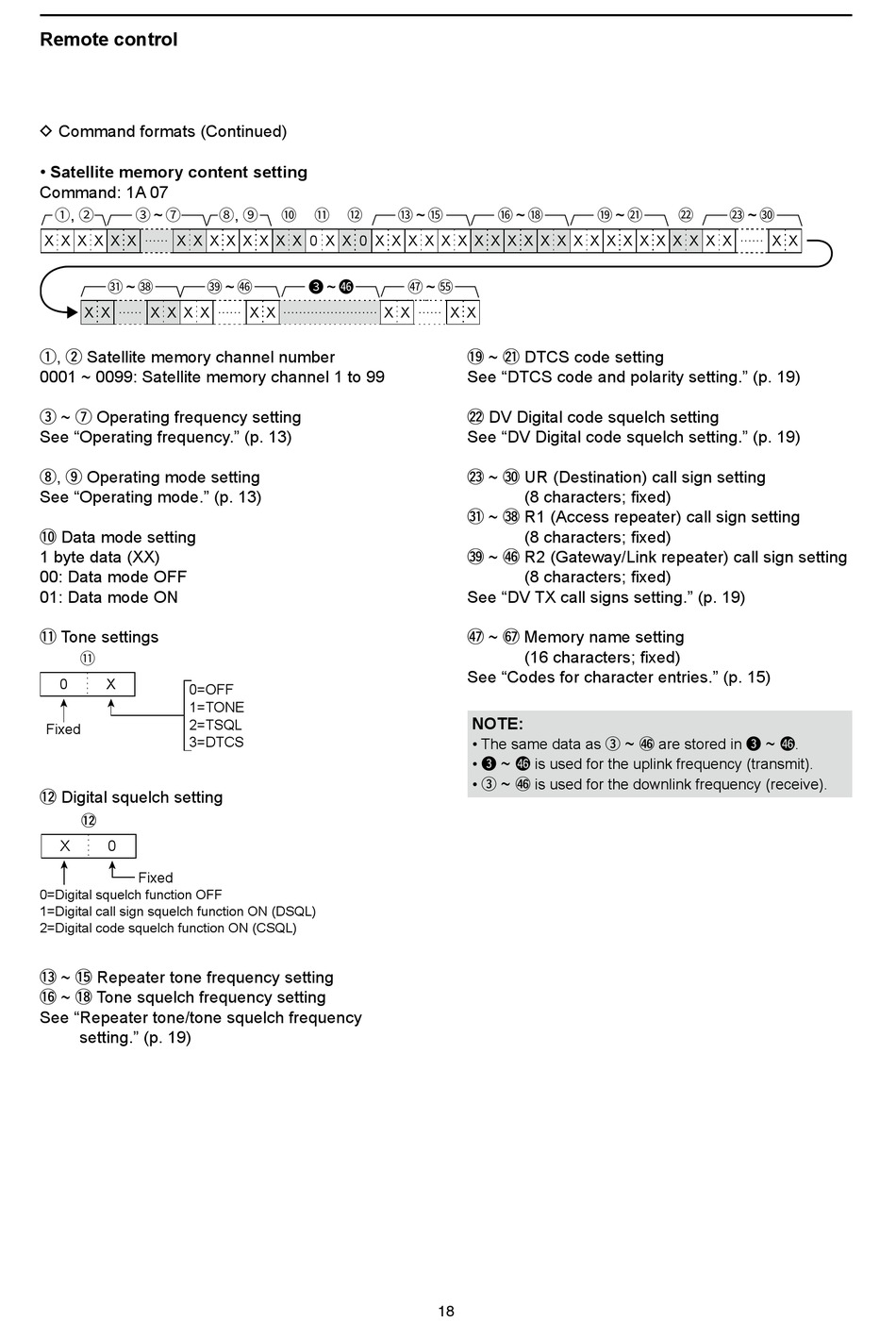

• Satellite memory content setting
Command: 1A 07
3 ~ 7
1, 2
X X X X X X ∙∙∙∙∙∙ X X X X X X X X 0 X X 0 X X X X X X
31 ~ 38 39 ~ 46
X X ∙∙∙∙∙∙ X X X X ∙∙∙∙∙∙ X X ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙
q, w Satellite memory channel number
0001 ~ 0099: Satellite memory channel 1 to 99
e ~ u Operating frequency setting
See "Operating frequency." (p. 13)
i, o Operating mode setting
See "Operating mode." (p. 13)
!0 Data mode setting
1 byte data (XX)
00: Data mode OFF
01: Data mode ON
!1 Tone settings
11
0 X
0=OFF
1=TONE
2=TSQL
Fixed
3=DTCS
!2 Digital squelch setting
!2
X 0
Fixed
0=Digital squelch function OFF
1=Digital call sign squelch function ON (DSQL)
2=Digital code squelch function ON (CSQL)
!3 ~ !5 Repeater tone frequency setting
!6 ~ !8 Tone squelch frequency setting
See " Repeater tone/tone squelch frequency
setting." (p. 19)
8, 9 10 11 12
3 ~ 46
X X
13 ~ 15 16 ~ 18
X X X X X X
47 ~ 55
∙∙∙∙∙∙ ∙∙∙∙∙∙
∙∙∙∙∙∙ X X
!9 ~ @1 DTCS code setting
See " DTCS code and polarity setting." (p. 19)
@2 DV Digital code squelch setting
See "DV Digital code squelch setting." (p. 19)
@3 ~ #0 UR (Destination) call sign setting
(8 characters; fixed)
#1 ~ #8 R1 (Access repeater) call sign setting
(8 characters; fixed)
#9 ~ $6 R2 (Gateway/Link repeater) call sign setting
(8 characters; fixed)
See "DV TX call signs setting." (p. 19)
$7 ~ ^7 Memory name setting
(16 characters; fixed)
See "Codes for character entries." (p. 15)
NOTE:
• The same data as e
~
• e $6 is used for the uplink frequency (transmit).
~
• e $6 is used for the downlink frequency (receive).
18
19 ~ 21 23 ~ 30
22
X X X X X X X X X X ∙∙∙∙∙∙ X X
~
$6 are stored in e
~
$6 .
