Remote control

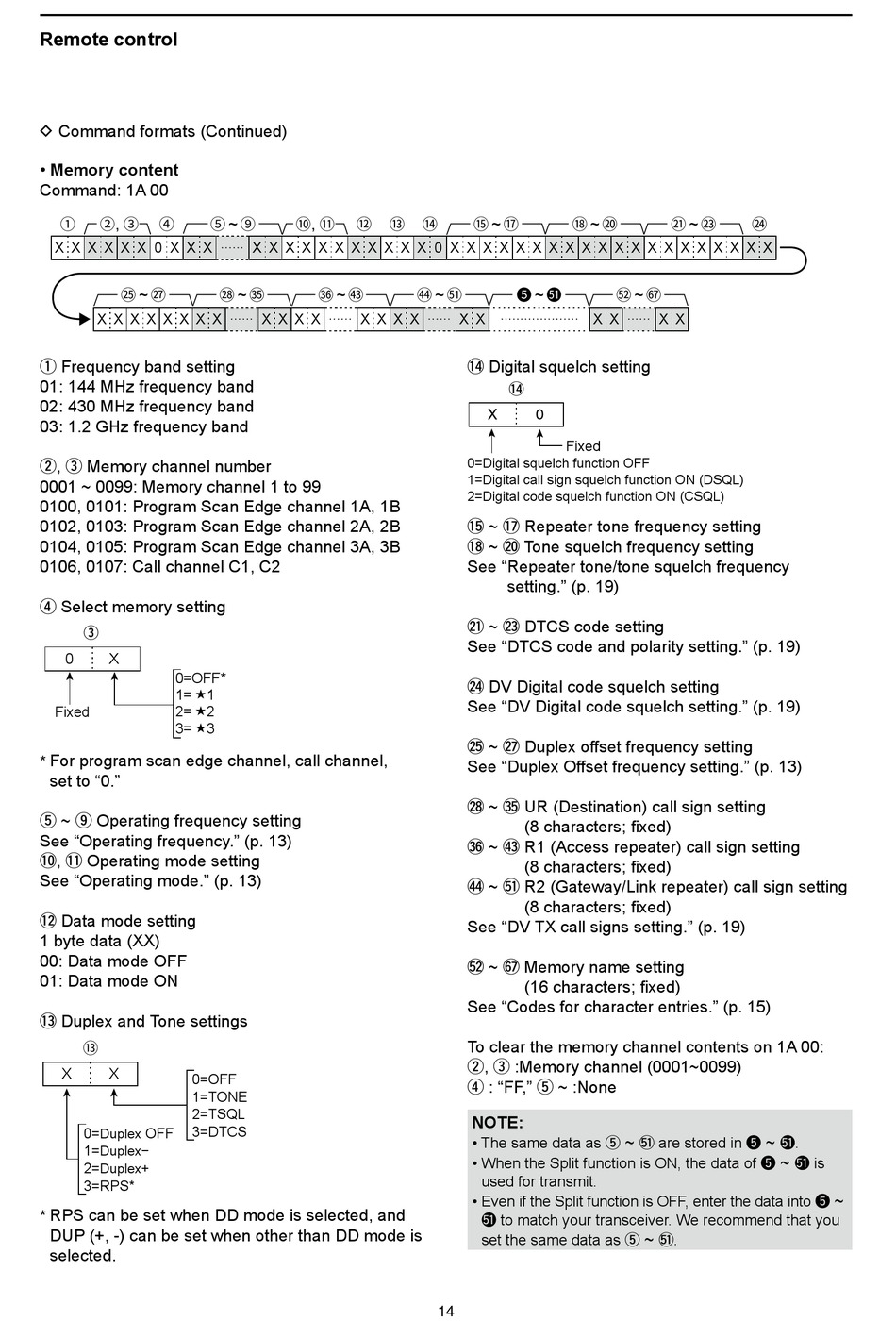

D Command formats (Continued)
• Memory content
Command: 1A 00
1
2, 3
4
X X
X X
X X
0
X X X ∙∙∙∙∙∙ X X X X X X X X X X X 0 X X X X X X
25 ~ 27
X
X
X
X
X
X
X X ∙∙∙∙∙∙ X X
q Frequency band setting
01 : 144 MHz frequency band
02 : 430 MHz frequency band
03 : 1.2 GHz frequency band
w, e Memory channel number
0001 ~ 0099: Memory channel 1 to 99
0100, 0101: Program Scan Edge channel 1A, 1B
0102, 0103: Program Scan Edge channel 2A, 2B
0104, 0105: Program Scan Edge channel 3A, 3B
0106, 0107: Call channel C1, C2
r Select memory setting
e
0
X
0=OFF*
1= 1
Fixed
2= 2
3= 3
For program scan edge channel, call channel,
*
set to "0."
t ~ o Operating frequency setting
See "Operating frequency." (p. 13)
!0 , !1 Operating mode setting
See "Operating mode." (p. 13)
!2 Data mode setting
1 byte data (XX)
00: Data mode OFF
01: Data mode ON
!3 Duplex and Tone settings
13
X
X
0=OFF
1=TONE
2=TSQL
3=DTCS
0=
OFF
Duplex
1=
Duplex−
2=
Duplex+
3=RPS*
RPS can be set when DD mode is selected, and
*
DUP (+, -) can be set when other than DD mode is
selected.
5 ~ 9
10, 11
12
28 ~ 35
36 ~ 43
X X ∙∙∙∙∙∙ X X
15 ~ 17
13
14
X X
44 ~ 51
5 ~ 51
X X ∙∙∙∙∙∙ X X
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙
!4 Digital squelch setting
!4
X
0
0=Digital squelch function OFF
1=Digital call sign squelch function ON (DSQL)
2=Digital code squelch function ON (CSQL)
!5 ~ !7 Repeater tone frequency setting
!8 ~ @0 Tone squelch frequency setting
See " Repeater tone/tone squelch frequency
setting." (p. 19)
@1 ~ @3 DTCS code setting
See " DTCS code and polarity setting." (p. 19)
@4 DV Digital code squelch setting
See "DV Digital code squelch setting." (p. 19)
@5 ~ @7 Duplex offset frequency setting
See "Duplex Offset frequency setting." (p. 13)
@8 ~ #5 UR (Destination) call sign setting
(8 characters; fixed)
#6 ~ $3 R1 (Access repeater) call sign setting
(8 characters; fixed)
$4 ~ %1 R2 (Gateway/Link repeater) call sign setting
(8 characters; fixed)
See "DV TX call signs setting." (p. 19)
%2 ~ ^7 Memory name setting
(16 characters; fixed)
See "Codes for character entries." (p. 15)
To clear the memory channel contents on 1A 00:
w, e :Memory channel (0001~0099)
r : "FF," t ~ :None
NOTE:
• The same data as t
• When the Split function is ON, the data of t
used for transmit.
• Even if the Split function is OFF, enter the data into t
%1 to match your transceiver. We recommend that you
set the same data as t
14
18 ~ 20
21 ~ 23
X X
X X
X X
X X
X X
52 ~ 67
X X
∙∙∙∙∙∙
X X
Fixed
~
%1 are stored in t
~
%1 .
24
X X
~
%1 .
~
%1 is
~
