Back Of Machine - National Flooring Equipment 5280 Series Service Manual

Parts List and Diagrams

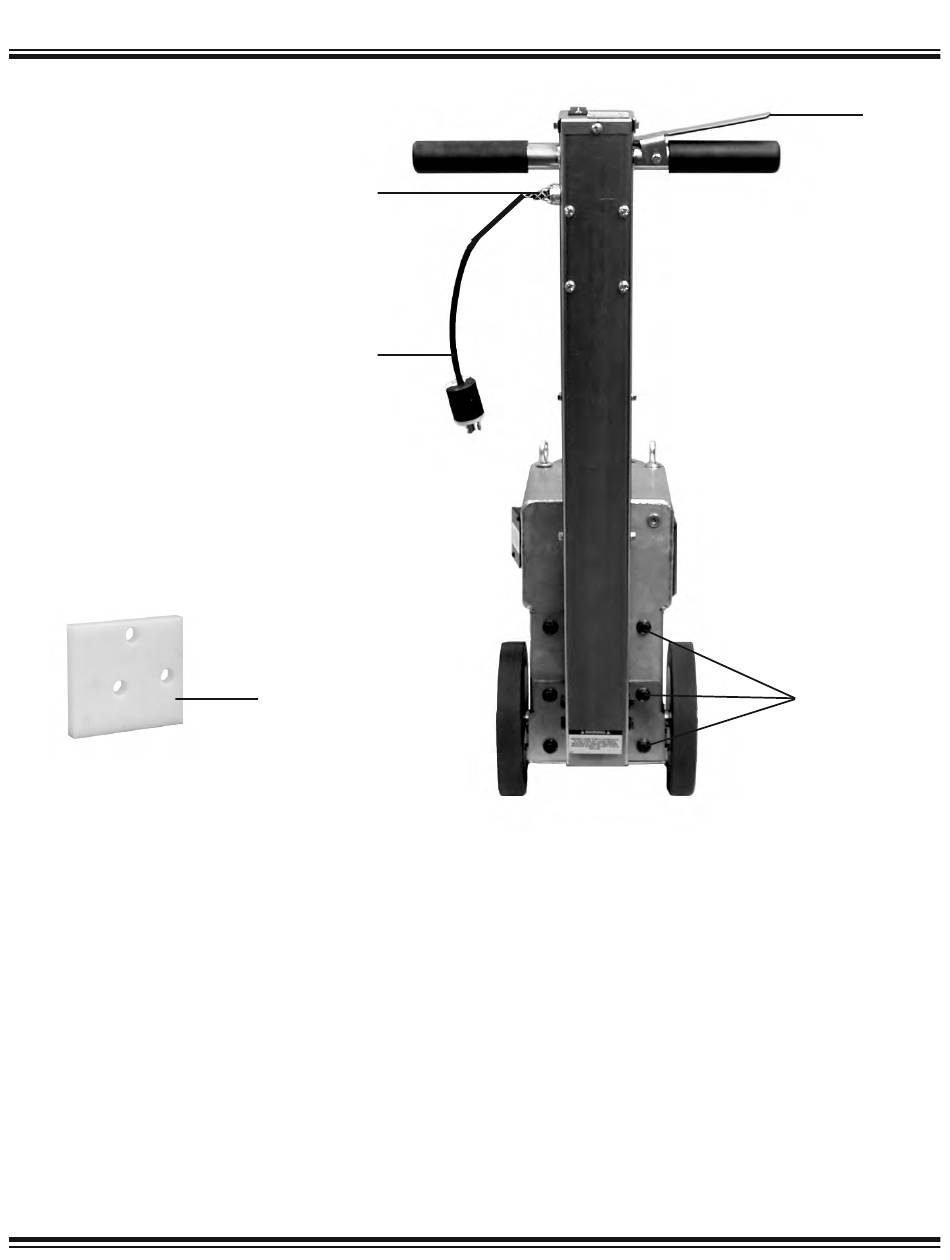

BACK OF MACHINE

PART# DESCRIPTION
1 5280-139C ISOLATOR, HANDLE VIBRATION
2 6280-168 CORD, POWER, NEW STYLE (DOMESTIC
ONLY)
72612 ASSEMBLY, 120V HANDLE CORD
(DOMESTIC ONLY)
72612-W CORD, HANDLE, 200V (INTERNATIONAL
ONLY)
3 5280-172A LEVER, HANDLE
4 74650 BOLT, HEX FLANGE M10-25
5
2
6
1
QTY
2
1
1
1
1
?
PART# DESCRIPTION
5 73502 STRAIN RELIEF, STRAIGHT 1/2 INCH, .3376-
.5686
6 401438 PLUG, MALE, EU1-16P, 250V, 16A, EUROPE
(INTERNATIONAL ONLY, EXCLUDING
5280-20XXXX)
401486 PLUG, MALE, IEC 60309, 110-130V, 32A, 3W,
YELLOW (5280-20XXXX ONLY)
14
3
4
QTY
2
1
1
