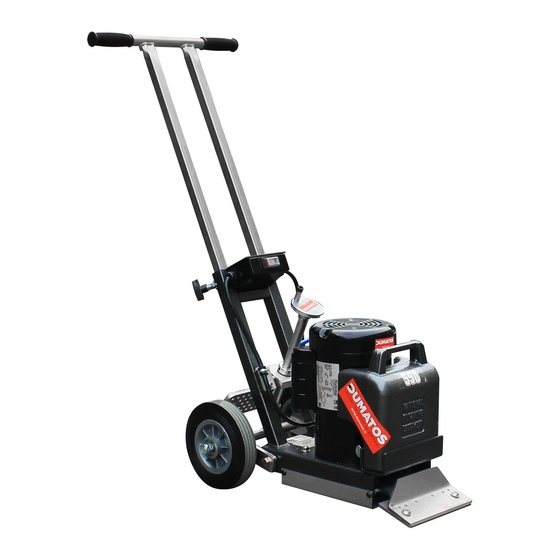

- Page 1 550 ADJUSTABLE HANDLE SCRAPER SERVICE MANUAL Read Manual Before Servicing Machine 402990 Rev H...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ................................3 Specifications ................................4 Safety ....................................5 General Rules for Safe Operation ......................... 5 Walk-Behind Scraper Safety Guidelines ........................ 6 Recommended Electrical Practices ........................7 Troubleshooting Guide ..............................9 Maintenance ................................. 10 Maintaining Equipment ............................10 Parts List and Diagrams ..............................11 Overall Machine ..............................11 Frame and Wheel Assembly .......................... -
Page 4: Specifications
Specifications Product Specifications Vibration Weight Width Max.Length Height Speed (Machine Only) X Axis Y Axis Z Axis 42.5” (108 cm) with handle 17.75” (45 cm) 32.5” (83 cm) 123 lb (55.8 kg) Manual 5.5 m/s 11.1 m/s 11.6 m/s 21” (53 cm) without handle Machine Variants Region... -
Page 5: Safety
Read the manual carefully to learn equipment applications and limitations, as well as potential hazards associated with this type of equipment. Keep manual near machine at all times. If your manual is lost or damaged, contact National Flooring Equipment (NFE) for a replacement. PERSONAL MAINTENANCE &... -
Page 6: Walk-Behind Scraper Safety Guidelines
Safety Safety WALK-BEHIND SCRAPER SAFETY GUIDELINES Before use, anyone operating this equipment must read and understand these safety instructions. SCRAPING Beware of hidden obtrusions. Watch out for hidden dangers and protrusions in flooring. Do not use on largely uneven surfaces. Observe location of electrical supplies and extension cords. -
Page 7: Recommended Electrical Practices
Safety RECOMMENDED ELECTRICAL PRACTICES CAUTION: ALWAYS FOLLOW APPLICABLE ELECTRICAL CODES, STANDARDS AND/OR REGULATIONS. CONSULT YOUR LOCAL ELECTRICAL AUTHORITY OR A LICENSED ELECTRICIAN BEFORE ATTEMPTING TO MODIFY AN ELECTRICAL INSTALLATION. ENSURE THAT CIRCUIT AND GROUND FAULT PROTECTION DEVICES AND ALL OTHER ELECTRICAL SAFETY EQUIPMENT ARE FUNCTIONING PROPERLY. - Page 8 Safety RECOMMENDED ELECTRICAL PRACTICES—CONTINUED Single-Phase Equipment 100V Supply 20ft (6m) 40ft (12m) 60ft (20m) 80ft (25m) 120V Supply 25ft (7.5m) 50ft (15m) 75ft (25m) 100ft (30m) Length 230V Supply 50ft (15m) 100ft (30m) 150ft (45m) 200ft (60m) Max Amps Minimum Wire Size 16 AWG (1.5mm 16 AWG (1.5mm 14 AWG (2.5mm...
-
Page 9: Troubleshooting Guide
Troubleshooting Guide Problem Cause Solution No power Insufficient power Inspect electrical cord for damage. Switch/Circuit Check if circuit breaker and/or switch are tripped. Motor noise Fan guard is malfunctioning. Ensure fan guard is not bent. Machine is hard to handle. Machine is too heavy. -
Page 10: Maintenance
Maintenance MAINTAINING EQUIPMENT WARNING: ALWAYS UNPLUG MACHINE BEFORE MAINTAINING. NEVER DISASSEMBLE THE TOOL OR TRY TO DO ANY REWIRING ON THE TOOL’S ELECTRICAL SYSTEM. FAILURE TO DO SO COULD CAUSE DAMAGE TO MACHINE OR SERIOUS INJURY. CONTACT NFE FOR ALL REPAIRS. Keep equipment in good repair by adopting a regular maintenance program. -
Page 11: Parts List And Diagrams
OVERALL MACHINE Parts List and Diagrams OVERALL MACHINE SWITCH UPPER HANDLE MOTOR COUNTERWEIGHT ADJUSTMENT SHAFT WHEEL ASSEMBLY FRAME CUTTING HEAD... -
Page 12: Frame And Wheel Assembly
Parts List and Diagrams FRAME AND WHEEL ASSEMBLY FRAME AND WHEEL ASSEMBLY ITEM PART NUMBER DESCRIPTION QTY. ITEM PART NUMBER DESCRIPTION QTY. BASE, WELDMENT, SILVER VEIN BASE, WELDMENT, GREEN Frame, Base, Silver Vein (550-10XXXX, 550-23XXXX, 550- BASE, WELDMENT, ORANGE 11XXXX, 550-13XXXX, 550-20XXXX, 550-29XXXX ONLY) 550-11 Frame, Base, Green (550-12XXXX ONLY) ASSEMBLY, WHEEL ADJUSTMENT... -
Page 13: 550-11 Wheel Adjustment Assembly
Parts List and Diagrams 550-11 WHEEL ADJUSTMENT ASSEMBLY 550-11 WHEEL ADJUSTMENT ASSEMBLY ITEM PART NUMBER DESCRIPTION QTY. ITEM PART 404823 WHEEL, ADJUSTMENT, 3” DESCRIPTION QTY. NUMBER 550-4 T-BAR, ADJUSTMENT 550-12D Wheel, Adjustment 550-5B COLLAR, SHAFT 7/8 550-4 T-BAR, ADJUSTMENT 550-6 SHAFT, ADJUSTMENT 550-5B Collar, Shaft 7/8... -
Page 14: Cutting Head
Parts List and Diagrams CUTTING HEAD CUTTING HEAD (FRAME) Angle Shank (Optional) ITEM PART ITEM DESCRIPTION QTY. NUMBER PART NUMBER DESCRIPTION QTY. 73259 Bolt, Wizlock, 3/8-16X3/4 73259 BOLT, WIZLOCK, 3/8-16X3/4 70810 Isolator, Vibration 70810 ISOLATOR, VIBRATION 5280-8 Cutting Head 5280-8 HEAD, CUTTING 71131 Bearing 1-1/4 ID, SBLF 206-20... -
Page 15: Motor
Parts List and Diagrams MOTOR 550-11XXXX 550-10XXXX 550-13XXXX ITEM 550-12XXXX 550-15XXXX DESCRIPTION QTY. 550-23XXXX 550-20XXXX 550-29XXXX 550-23 CAPACITOR, 540-648µF, 125VAC, 50/60HZ 404928 CAPACITOR, START, 50HZ 400001 COVER, MOTOR FAN, TOP MOUNT SCREWS, PAINTED 62181 FAN, MOTOR 62182 COVER, CAPACITOR, LEESON 401698 BOX, JUNCTION, MOTOR, 3”... -
Page 16: Switch-Domestic Machines
Parts List and Diagrams SWITCH—DOMESTIC MACHINES SWITCH - DOMESTIC MACHINES ITEM PART NUMBER DESCRIPTION QTY. 550-10XXXX ITEM 500-12 Cord, Power, Molded 5-15P Plug, 19" 550-12XXXX DESCRIPTION QTY. 550-23XXXX 550-15 Box, Electrical without Cover 404769 CORD, POWER, MOLDED 5-15P PLUG, 15.5” 73502 Strain Relief, Straight 1/2 in 550-15... -
Page 17: Switch-International Machines
Parts List and Diagrams SWITCH—INTERNATIONAL MACHINES SWITCH - INTERNATIONAL MACHINES ITEM PART NUMBER DESCRIPTION QTY. 404175 Assembly, Electrical Box, UK ITEM 550-11XXXX 550-20XXXX 550-13XXXX 550-29XXXX DESCRIPTION QTY. 404176 Assembly, Electrical Box, EUR 550-15XXXX 404177 Assembly, Electrical Box, AUS 404175 ASSEMBLY, ELECTRICAL BOX, UK 404176 404178 Assembly, Electrical Box, SIN... - Page 18 Parts List and Diagrams SWITCH—INTERNATIONAL MACHINES (CONTINUED) ITEM 550-11XXXX 550-20XXXX 550-13XXXX 550-29XXXX DESCRIPTION QTY. 550-15XXXX ITEM 550-20XXXX 550-11XXXX 550-13XXXX 550-29XXXX DESCRIPTION QTY. 404158 BOX, SWITCH, ON/OFF, CE 404158 Box, Switch, On/Off, CE 404144 SWITCH, ROCKER BREAKER, 18A, 90-120V, UVR 404144 Switch, Rocker Breaker, 18A, 90-120V, UVR 404180 SWITCH, ROCKER BREAKER, 10A, 220-240V, UVR...
-
Page 19: Counterweight
Parts List and Diagrams COUNTERWEIGHT COUNTERWEIGHT COUNTERWEIGHT ITEM PART DESCRIPTION QTY. NUMBER Counterweight, Front, Cast, Silver Vein (550-10XXXX, 550-28-SV 550-23XXXX 550-11XXXX, 550-13XXXX, 550-20XXXX, 550-10XXXX 550-29XXXX ONLY) 550-11XXXX 550-28-G Counterweight, Front, Cast, Green (550-12XXXX ONLY) ITEM 550-13XXXX 73273 Screw, Thumb, 3/8-16x3/4 550-12XXXX 550-15XXXX DESCRIPTION... -
Page 20: Labels
Parts List and Diagrams LABELS 550-11XXXX ITEM 550-10XXXX 550-13XXXX 550-23XXXX 550-20XXXX DESCRIPTION QTY. 550-12XXXX 550-15XXXX 550-29XXXX 403356-XX KIT, LABELS, 550 [LANGUAGE] 402627 LABEL, 1.5 X 2 403866 LABEL, CE, 550, 230V, 50HZ 403867 LABEL, CE, 550, 110V, 50HZ *Suffix denotes language: None=English; -FR=French; -NL=Dutch; -DE=German. ACCESSORIES ITEM PART NUMBER... -
Page 21: Wiring Diagrams
Parts List and Diagrams WIRING DIAGRAM—120V DOMESTIC 550 Wiring Diagram 120V Domestic 120V SUPPLY MOTOR CONTROL BOX JUNCTION BOX T-R3 T-R1 T-R2 14-GRN GROUND GROUND T-F10 T-F30 14-BLK T-F20 T-F40 14-WHT ON/OFF SWITCH MOTOR... - Page 22 Parts List and Diagrams WIRING DIAGRAM—230V INTERNATIONAL 550 Wiring Diagram 230V International 230V SUPPLY MOTOR CONTROL BOX JUNCTION BOX T-R3 T-R1 T-R2 2.5MM-GRN/YEL GROUND GROUND T-F10 T-F30 2.5MM-BRN T-F20 T-F40 2.5MM-BLU ON/OFF SWITCH UNDER VOLTAGE PROTECTED MOTOR...
- Page 23 Parts List and Diagrams WIRING DIAGRAM—110V INTERNATIONAL 550 Wiring Diagram 110V International 110V SUPPLY MOTOR CONTROL BOX JUNCTION BOX T-R3 T-R1 T-R2 2.5MM-GRN/YEL GROUND GROUND T-F10 T-F30 2.5MM-BRN T-F20 T-F40 2.5MM-BLU ON/OFF SWITCH UNDER VOLTAGE PROTECTED MOTOR...
- Page 24 Parts List and Diagrams NOTES...
-
Page 25: Warranty
Warranty National Flooring Equipment Inc. (referred to as “The Company”) warrants that each new unit manufactured by The Company to be free from defects in materials and workmanship in normal use and service for a period of twelve (12) months from date of shipment from The Company to the end user. - Page 28 9250 Xylon Avenue N • Minneapolis, MN 55445 • U.S.A. Toll-free 800-245-0267 • Phone 763-315-5300 • Fax 800-648-7124 • Fax 763-535-8255 Web Site: www.nationalequipment.com • E-Mail: info@nationalequipment.com...
