Handle - National Flooring Equipment 5280 Series Service Manual

2
PART# DESCRIPTION
1 6280-117 FITTING, PUMP
2 5280-167 HANDLE BODY
3 5280-167B COVER, HANDLE BODY
4 5280-167C PLATE, HANDLE SWITCH
5 73401 NUT, STRAIN RELIEF, STEEL, 1/2" (NOT
SHOWN)
6 72804 STRAIN RELIEF, STRAIGHT, 1/2''
7 6280-208 CONTROL, SPEED
8 6280-208A KNOB, SPEED CONTROL
9 70651 PLUG, VALVE BODY (NOT SHOWN)
10 5280-216 CARTRIDGE, VALVE
11 73023 BOLT, HEX HEAD CAP 1/4-20X2 (NOT
SHOWN)
12 6280-209 VALVE, PRESS CARTRIDGE
13 6280-170A GRIP, HANDLE BAR
14 6280-180 HOSE, HYDRAULIC, 1/4 X 24.25, F/F
15 6280-181 HOSE, HYDRAULIC, 1/4 X 32, F/90F
NOTE: SEE PAGE 16 FOR INTERNATIONAL VARIANT
3
14 23
16
15

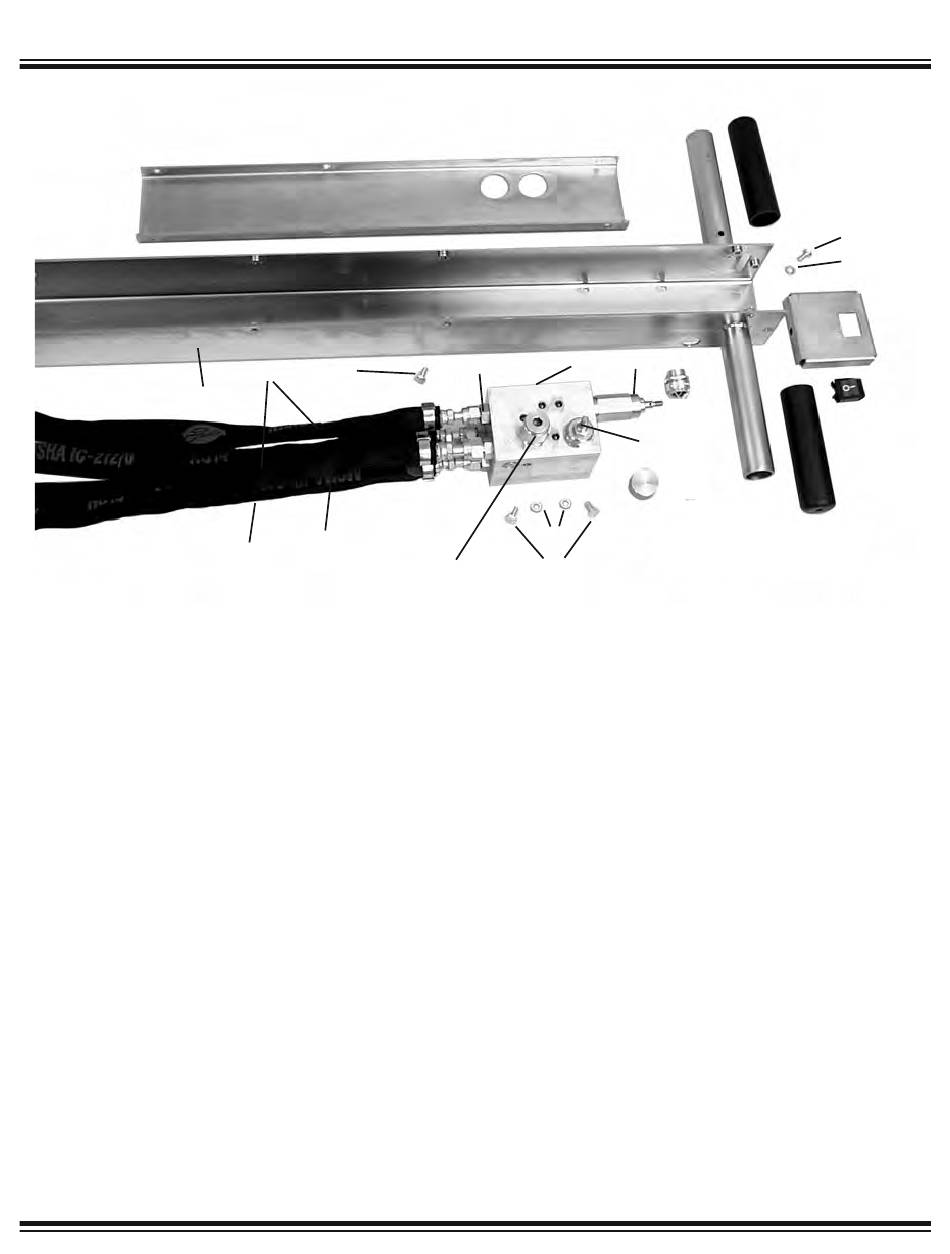

Parts List and Diagrams
18
1
19
20
12
QTY PART#
1 16 5700-76
1 17 6280-207
1 18 6280-215
1 19 73002
20 73005
1 21 73032
1
1 22 74619
1 23 74630
1 24 400306
1 25 400340
26 6280-162E
1 27 72812
1
1 28 72817
2
1 29 73008
13
24
10
6
7
8
DESCRIPTION
HOSE, HYDRAULIC, 3/8 X 26, F/F
SWITCH, ON-OFF
VALVE BLOCK ASSEMBLY
WASHER, SPLIT LOCK 1/4
SCREW, HEX HEAD CAP 1/4-20X1/2
NUT, LARGE FLANGE LOCK 1/4-20 (NOT
SHOWN)
WASHER, LOCK, M6
BOLT, HEX HEAD CAP M6-12 8.8
GRIP, HAND, CUT
SCREW, 6-32 X 3/16 SSS CP (NOT SHOWN) 1
PLUG, DRAIN, OIL LEVER (NOT SHOWN) 1
DISCONNECT, 12-10 GAUGE, FEMALE,
NYLON (NOT SHOWN)
CONNECTOR, CLOSED END (NOT SHOWN)
NUT, NYLOCK 1/4-20 (NOT SHOWN)

HANDLE

23
22
4
17
13
QTY
1
1
1
4
4
1
11
11
1
2
1
1
