Maintenance

The Separation Roller Assembly and the Feed Roller Assembly in your scanner are
designed to make document feeding smooth. After usage for a period of time, the
Separation Roller and Feed Rollers may become worn out, and problems such as
document double-feed may occur. In this case, check either the Separation Roller
Assembly or the Feed Roller Assembly, and replace them if needed. Follow the
procedure below for replacement of the Separation Roller and Feed Roller
Assembly.
Replacing the Separation Roller

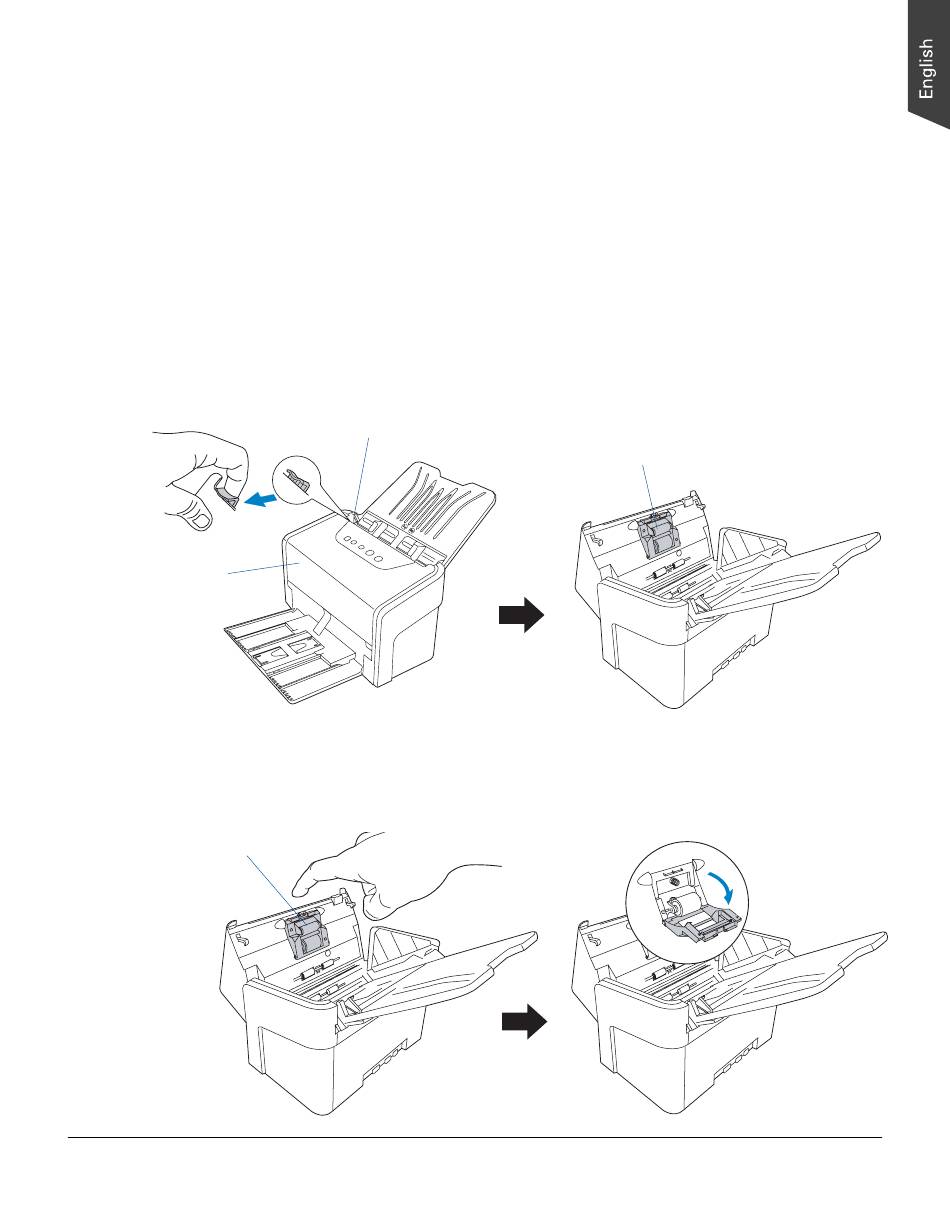

1. Lift up the Release button in the direction as shown in the graph to open the
Scanner cover
2. Find a hollow space at the top of the Separation Roller Assembly. Use it as
A space at the top of
the compartment
scanner cover. Locate the Separation Roller Assembly at the top of the inner
side of the scanner cover.
Release button
an exerting handle to pull down the cover of the Separation Roller Assembly
vertically. The opening direction is shown as the graph below.
ArtixScan DI 6240S/6250S/6260S & ArtixScan TS 630S User's Manual
Separation Roller Assembly
Pull down the
cover with
your finger
carefully
