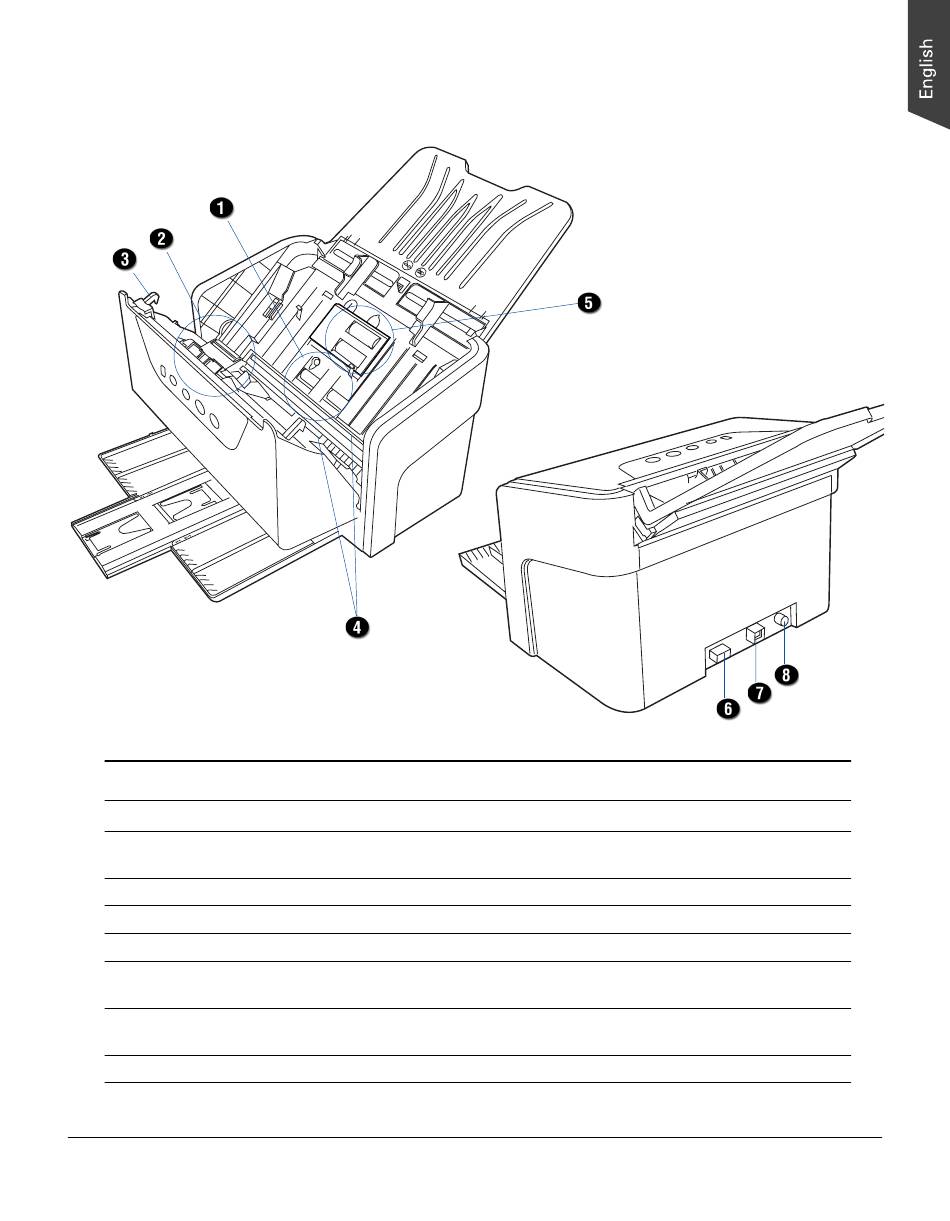

Open/Back View
No.
Names of Parts
1
Output Rollers
2
Separation Roller Assembly
3
Release button
4
Glass Surfaces
5
Feed Roller Assembly
6
Hi-Speed USB Port (2)
7
Hi-Speed USB Port (1)
8
Power Connector
Functions of Parts
Used to eject documents after scanning.
Used to separate each sheet of documents when a
stack of documents are fed into the feeder.
Lifts up to open the scanner cover.
The places where the CCD cartridges are stored.
Used to feed documents into the feeder.
Connects the Hi-Speed USB (USB 2.0) cable to another
flatbed scanner.
Connects the Hi-Seed USB (USB 2.0) cable to the
computer.
Connects the scanner to the power adapter.
ArtixScan DI 6240S/6250S/6260S & ArtixScan TS 630S User's Manual
11
