Maintenance

After usage for a period of time, the Separation Pad and Feed Rollers may become worn out,
and problems such as document double-feed may occur. In this case, check either the
Separation Pad or the Feed Roller Assembly, and replace them if needed.

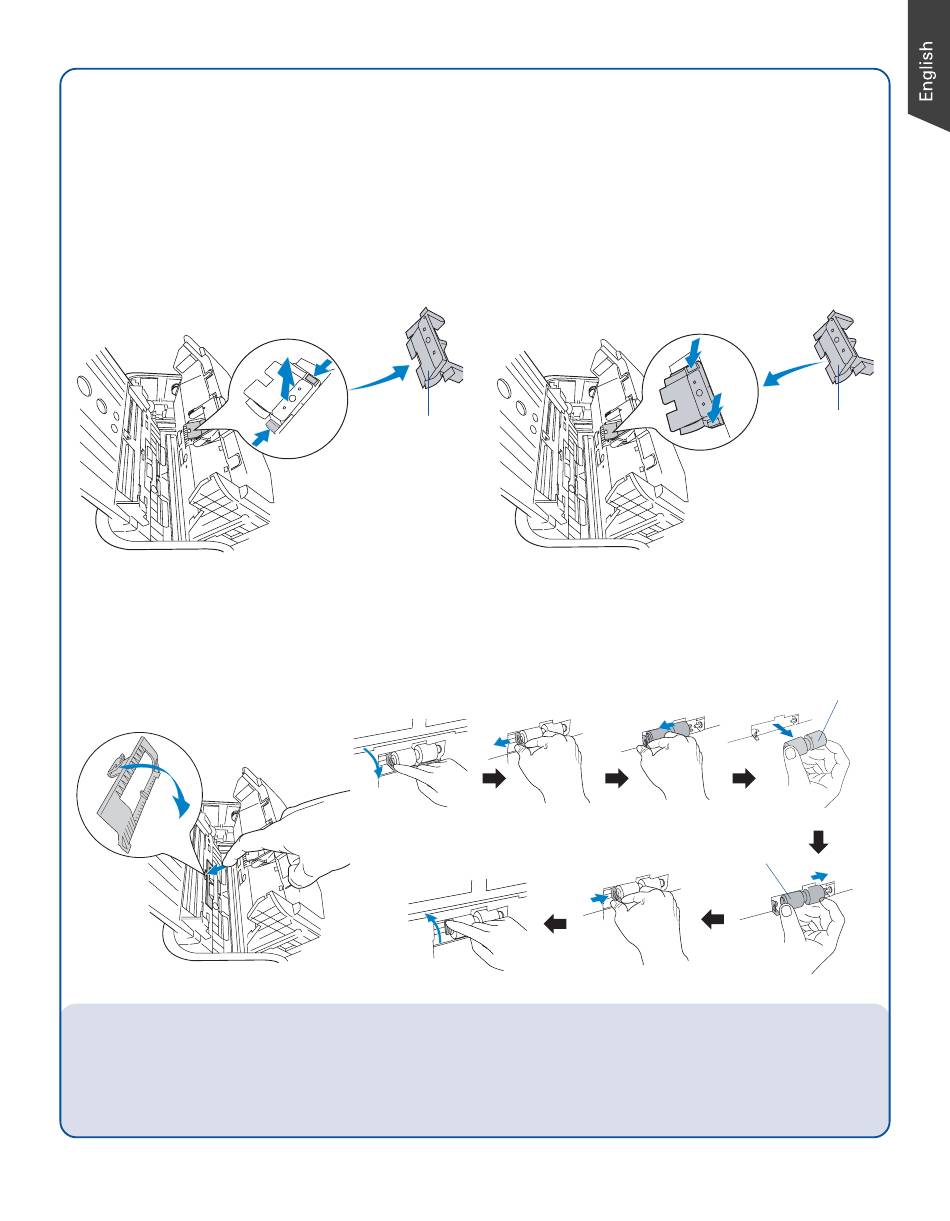

Replacing Separation Pad
With the ADF cover opened, a) press the two arms of the Separation Pad inward with your
fingers; b) then pull it out from its compartment and replace it with new one .
Replacing the Feed Roller Assembly
With the ADF cover opened, a) press the tab on the top of the roller cover with your finger to
pull it out, b) then remove the Feed Roller Assembly from its compartment and replace it with
new one.
NOTE:
• The recommended replacement point for the Separation Pad is approximate after 30,000 scans; for
Feed Roller Assembly is around 150,000 scans.
• Please contact your local resellers for purchasing new pad and new feed roller.
• For more details of replacement, refer to the scanner's User's Manual in the Microtek Software CD/DVD
and see the "Maintenance" section.
