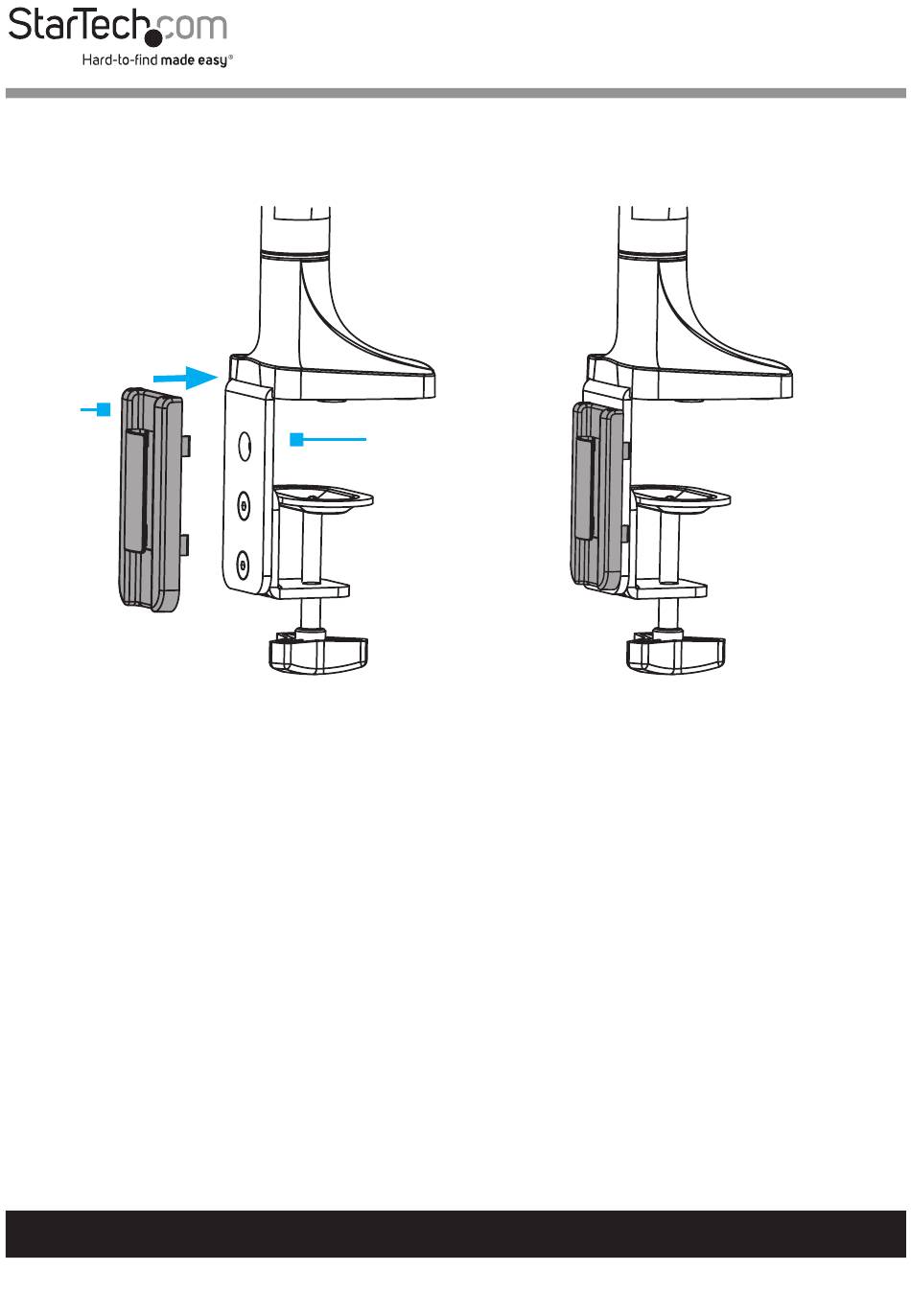

Snap the Hex Key Holder (11) onto the L Bracket. (Figure 5)
6.
Hex
Key
Holder
Turn the knob on the Desk Clamp counterclockwise until
7.
you reach the thickness of the mounting surface that the
Arm Mount is attached to.
Slide the Desk Clamp over the edge of the mounting
8.
surface.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
L Bracket
Figure 5
