1. From the Main Menu, go to the EEPROM configuration menu and verify the relevant EEPROM
configuration parameters.
2. From the concentrator EEPROM Configuration Menu display the configuration. Scroll down the
page that starts with "+Asap store&forward evt group size [0..65535;default=14]: 14".
3. Verify that the following highlighted parameters are set to 0.
4. Scroll down to the page which starts with the configuration item "Gateway Concentrator Num of
Cal objects stored in Flash [default=0]: 0".
5. Verify that the following highlighted parameters are set to the values as shown below.

LAN Health Check

The LAN health is determined from the concentrator's RAMLOG.
1. From the Concentrator Main Menu select option 'd'. The Concentrator Debug Menu appears.
Series IV Concentrator U and I Guide

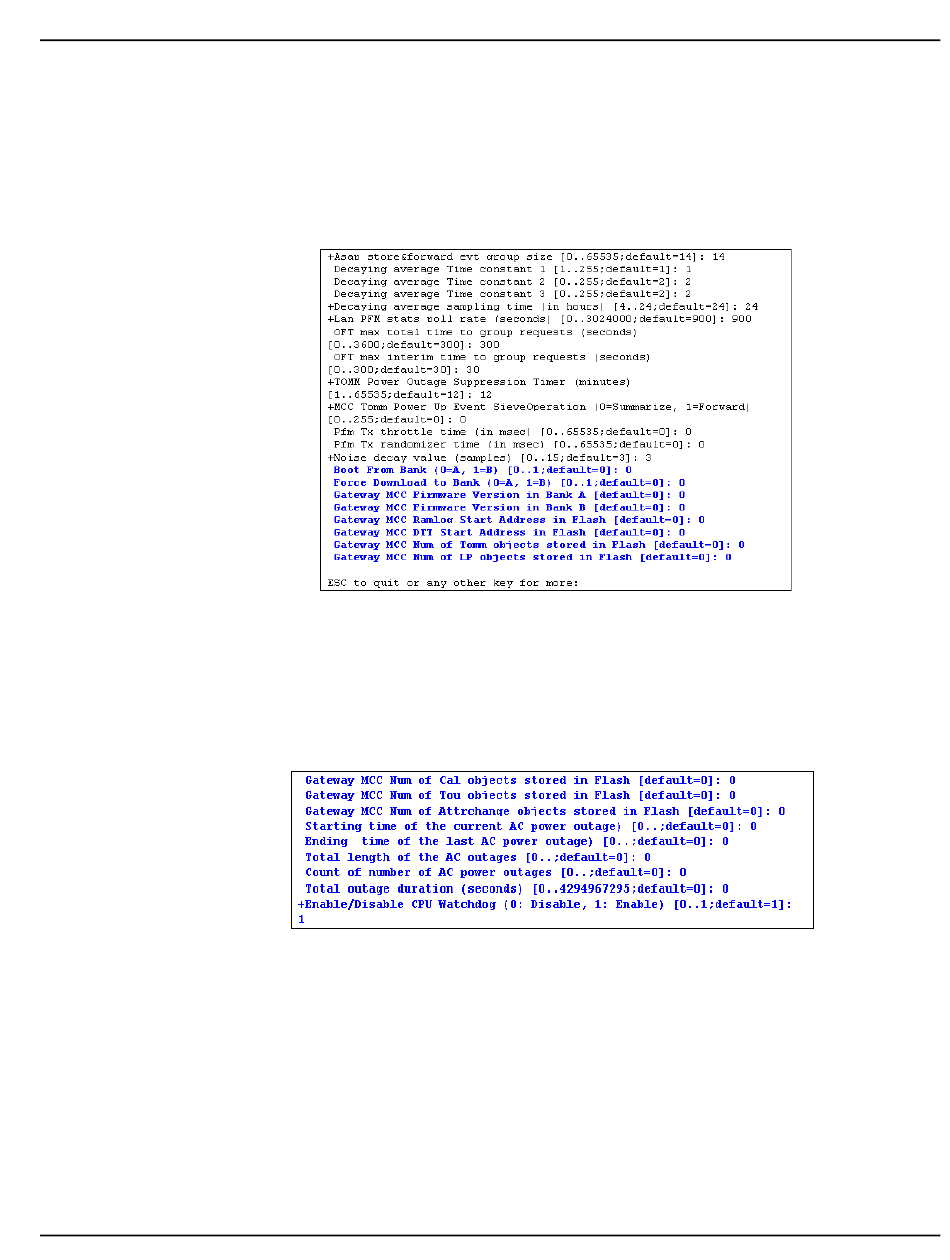

Figure C.6 CPU Configuration Check
Figure C.7 Concentrator Parameters
