Chapter 6 - Performing System Upgrades

Testing the Concentrator

Test the concentrator to verify that it has been programmed correctly.
1. Unplug the ethernet cable from the router.
2. In the Diagnostics menu, type b to reboot the concentrator system.
3. Hyperterminal reboot
4. Type y to Yes, reset the system.Wait for the system to boot into normal operation.
5. Type i to display firmware version information.
74

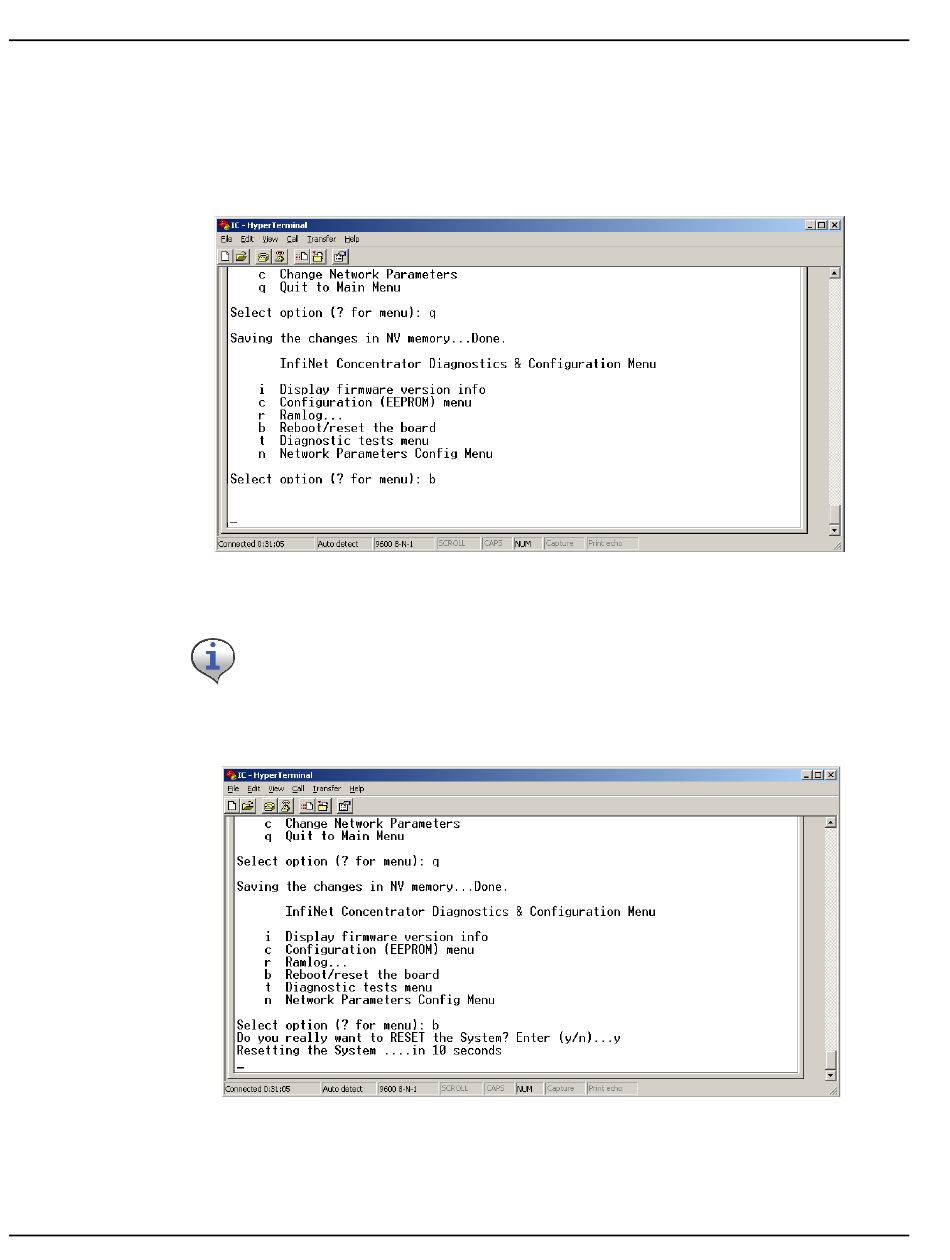

Figure 6 - 31. Diagnostic Menu
If the Diagnostics Menu does not display, then start over again from the first
step in this section.
Figure 6 - 32. Hyperterminal rebooting message
98-1031 Rev AA Concentrator User and Installation Guide
