6. Attach the AC power cable to the concentrator. Use any of the approved power cable options.
Metal Pole vertical Mount Installation
The utility or municipality determines the final guidelines of where to install the concentrator. Know
and follow the utility or municipality guidelines before installing the concentrator and antennas.
Concentrator Metal Pole Mounting Kit
In addition to your chosen concentrator assembly kit, you need a mounting kit
•
Kit number 45-1050 includes 8" rods for poles 3.5" to 5".
•
Kit number 45-1055 includes 12" rods for poles 5" to 7.5".
These kits are identical except for the rod length, so only kit number 45-1050 is described below.
Series IV Concentrator U and I Guide

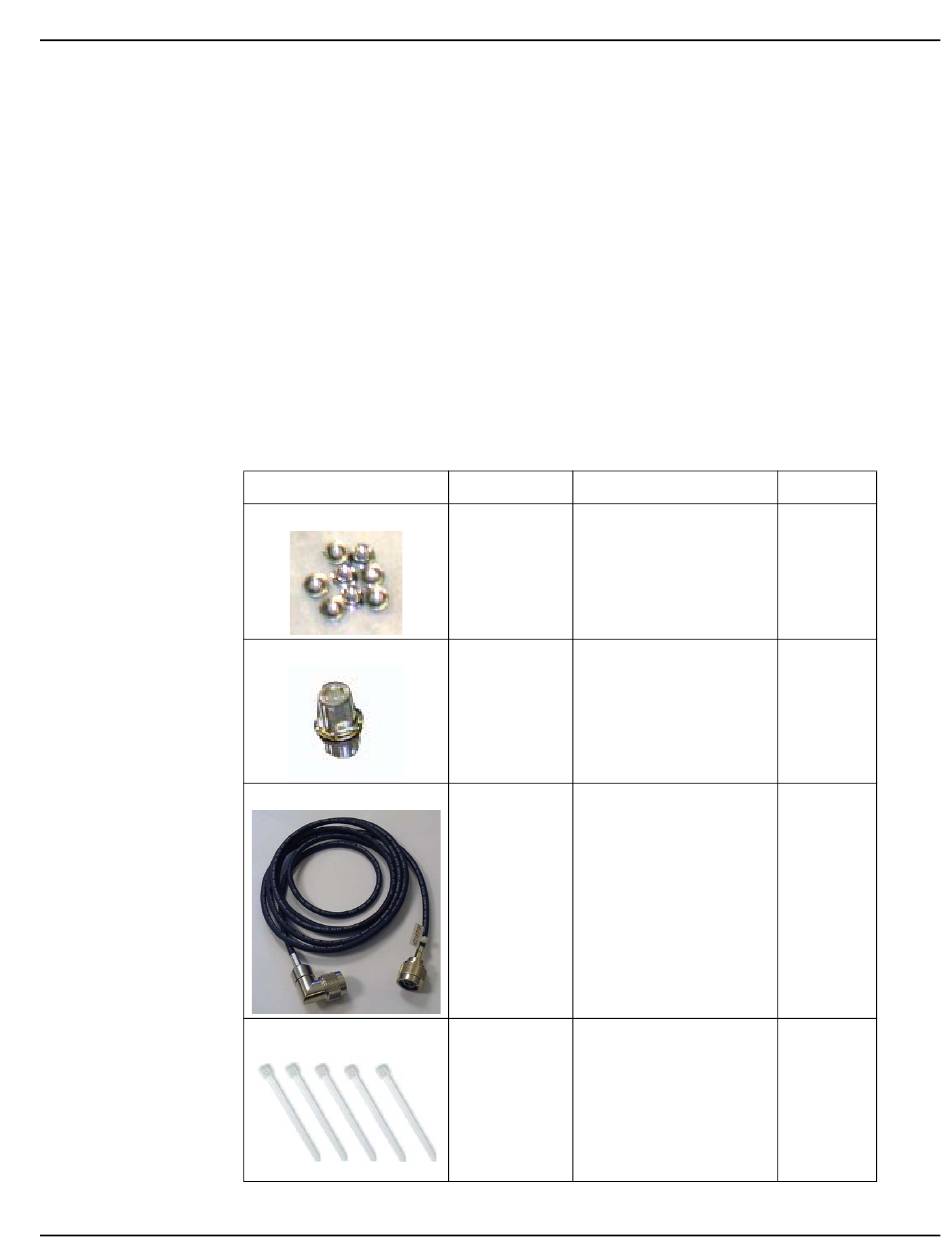

Table 4-6. 45-1050 Kit, Mounting, Light Pole, Concentrator
98-1031 Rev AA
Part Number
Name
NUT, HEX, FLANGE 1/4-
101983-025
20UNC, SS
CONN, BULKHEAD, F/
16-0214
F, TYPE N
CBL ASSY,CYLINK
19-2215
MALE-MAL E B,B
5.5 feet
TIE WRAP, 28 INCH,
22-0375
NYLON, WHITE
Chapter 4 - Concentrator Installation
Quantity
8
1
3
5
35
