Adding Drip Loops to Cables

For any cables in an assembly, allow some slack to rest below metal parts. The slack is called a "drip
loop." With a drip loop, water from rain and condensation drips from the cable without damaging
associated mechanical equipment
.

Kit Part Numbers

Different kinds of installs may require different mounting and install kits. The following table
contains a list of part numbers (PN) by install type. This document details each kit in the appropriate
install description.
Kit Number
Mounting Kit
PN 45-1091
Mounting Kit
PN 45-1050, 8"
rod
Mounting Kit
PN: 45-1049
Mounting Kit
PN: 45-1055, 12"
rod
Programming Kit
PN 45-1046
For information about installation types not listed here, contact Landis+Gyr Customer Operations
ëçäìíáçåëìééçêíKå~]ä~åÇáëÖóêKÅçã
via
Series IV Concentrator U and I Guide

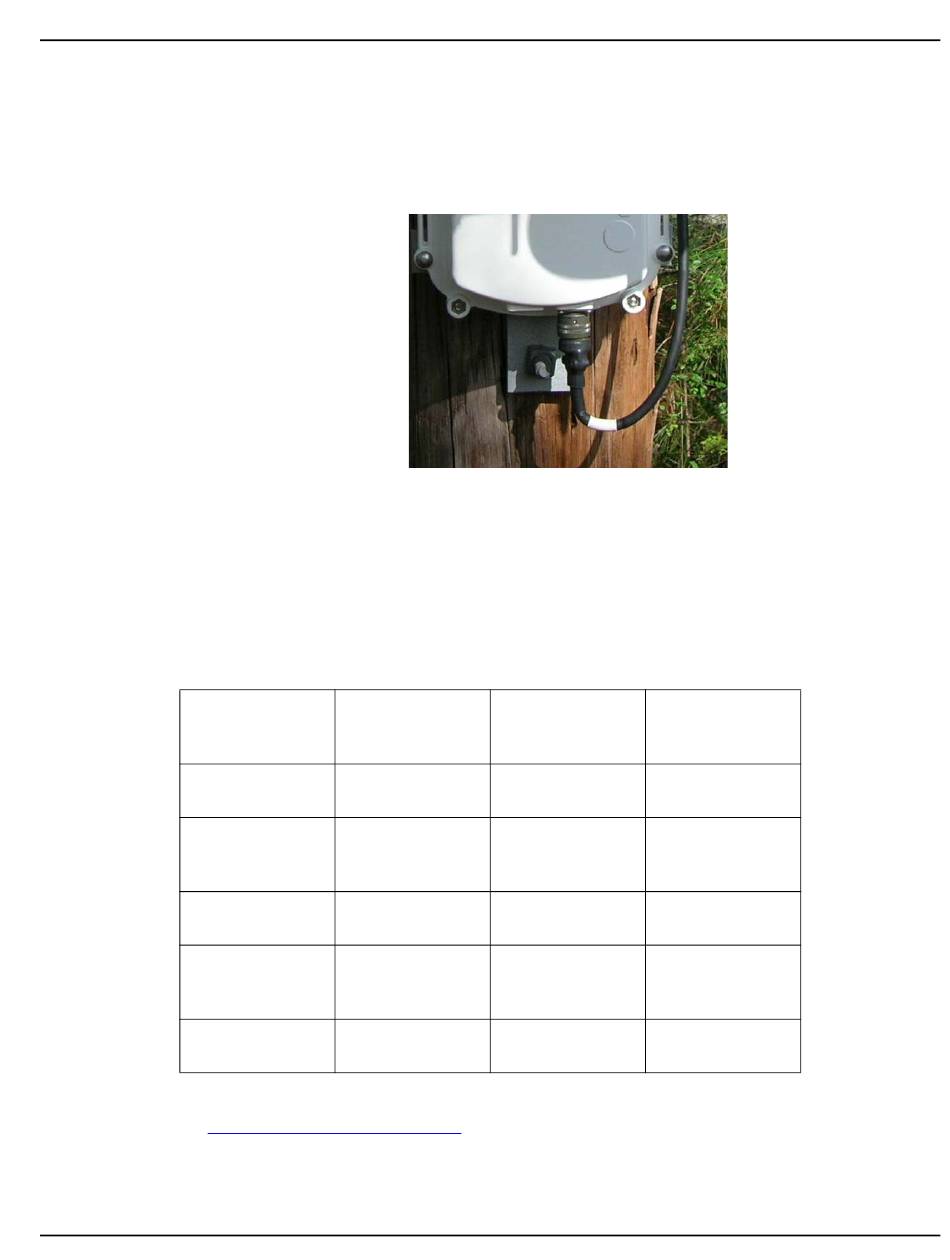

Figure 4 - 1. Cable with drip loop
Table 4-2. Mounting and Programming Kits
Wood Pole Install
x
x
.
98-1031 Rev AA
Chapter 4 - Concentrator Installation
Light Pole Metal Pole
Horizontal Vertical Mount
Mount Install Install
x
x
x
x
x
29
