Chapter 1　
1.5 Installing the Heater
PCB
1.5.1
Unpacking
Checking the Contents
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i

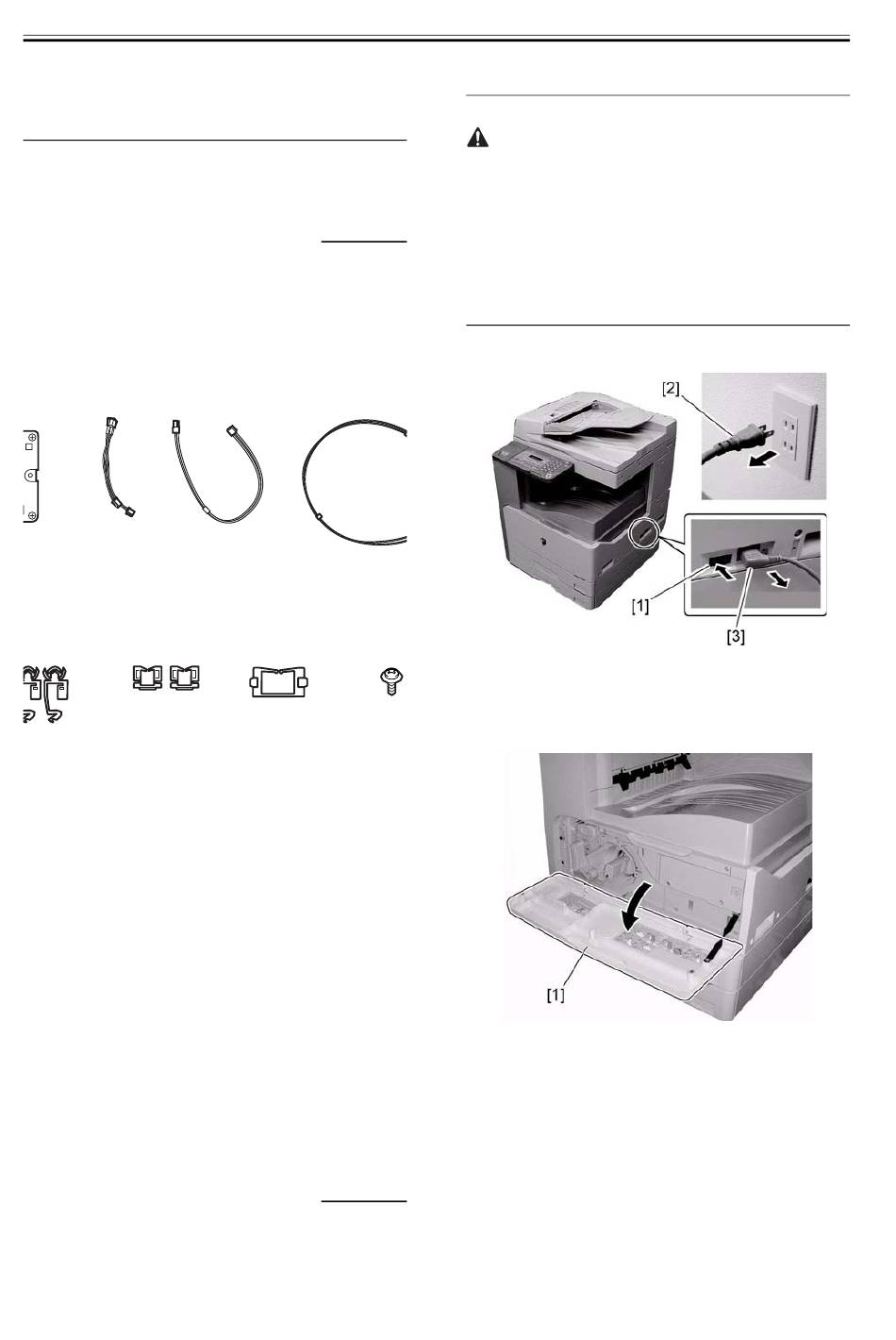

1) Prepare the following parts.
[2]
[6]
F-1-56
[1]
Heater PCB unit
[2]
Heater switch harness
[3]
Cassette heater harness
[4]
Heater PCB harness
[5]
Clamp
[6]
Edge saddle (small)
[7]
Edge saddle (large)
[8]
P screw (M3x8)
1.5.2 Preparing the Host
Machine
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
24
and
0011-3362
[3]
[4]
[7]
1 pc.
1 pc.
1 pc.
1 pc.
4 pcs.
2 pcs.
1 pc.
2 pcs.
0011-3363
Before installing, make sure the host machine is
turned off. If it is turned on, go through the following:
1. Turn off the main power switch.
2. Disconnect the power cable (from the power out-
let).
3. Disconnect the power cable.
[8]
1) Open the front cover [1].
2) Remove the four screws [1], and then detach the
rear cover [2].
3) Remove the five screws [3]. Remove the two hooks
[4], and then detach the lower-right cover [5].
4) Remove the screw [6], and then detach the upper-
right cover [7].
F-1-57
F-1-58
