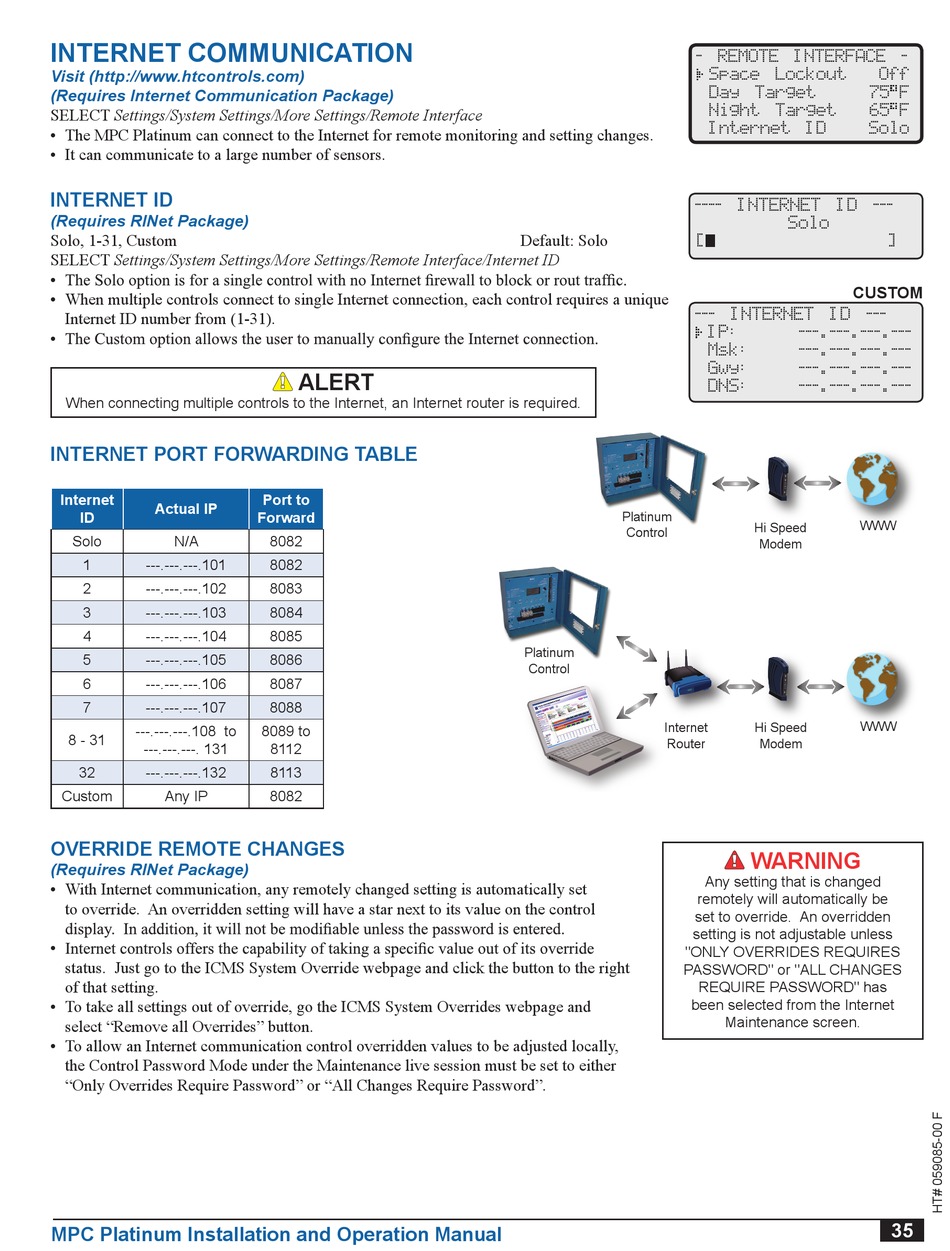

INTERNET COMMUNICATION

Visit (http://www.htcontrols.com)
(Requires Internet Communication Package)
SELECT Settings/System Settings/More Settings/Remote Interface
• The MPC Platinum can connect to the Internet for remote monitoring and setting changes.
• It can communicate to a large number of sensors.

INTERNET ID

(Requires RINet Package)
Solo, 1-31, Custom
SELECT Settings/System Settings/More Settings/Remote Interface/Internet ID
•
• When multiple controls connect to single Internet connection, each control requires a unique
Internet ID number from (1-31).
•
When connecting multiple controls to the Internet, an Internet router is required.

INTERNET PORT FORWARDING TABLE

Internet
Actual IP
ID
Solo N/A
1 ---.---.---.101
2 ---.---.---.102
3 ---.---.---.103
4 ---.---.---.104
5 ---.---.---.105
6 ---.---.---.106
7 ---.---.---.107
---.---.---.108 to
8 - 31
---.---.---. 131
32 ---.---.---.132
Custom Any IP
OVERRIDE REMOTE CHANGES
(Requires RINet Package)
• With Internet communication, any remotely changed setting is automatically set
to override. An overridden setting will have a star next to its value on the control
•
status. Just go to the ICMS System Override webpage and click the button to the right
of that setting.
• To take all settings out of override, go the ICMS System Overrides webpage and
select "Remove all Overrides" button.
• To allow an Internet communication control overridden values to be adjusted locally,
the Control Password Mode under the Maintenance live session must be set to either
"Only Overrides Require Password" or "All Changes Require Password".
MPC Platinum Installation and Operation Manual
ALERT
Port to
Forward
8082
8082
8083
8084
8085
8086
8087
8088
8089 to
8112
8113
8082
- REMOTE INTERFACE -
---- INTERNET ID ---
Default: Solo
[
--- INTERNET ID ---
Platinum
Control
Platinum
Control
Platinum
Control
Internet
Platinum
Router
Control
Internet
Router
remotely will automatically be
set to override. An overridden
setting is not adjustable unless
"ONLY OVERRIDES REQUIRES
Platinum
PASSWORD" or "ALL CHANGES
Control
REQUIRE PASSWORD" has
been selected from the Internet
Platinum
Server
Control
Server
Space Lockout Off
Day Target 75 F
Night Target 65 F
Internet ID Solo
Solo
CUSTOM
IP: ---.---.---.---
Msk: ---.---.---.---
Gwy: ---.---.---.---
DNS: ---.---.---.---
WWW
Hi Speed
Modem
WWW
Hi Speed
Modem
WWW
Hi Speed
Modem
WWW
Hi Speed
Modem
WARNING
Any setting that is changed
Maintenance screen.
WWW
Hi Speed
Modem
WWW
Hi Speed
Modem
]
