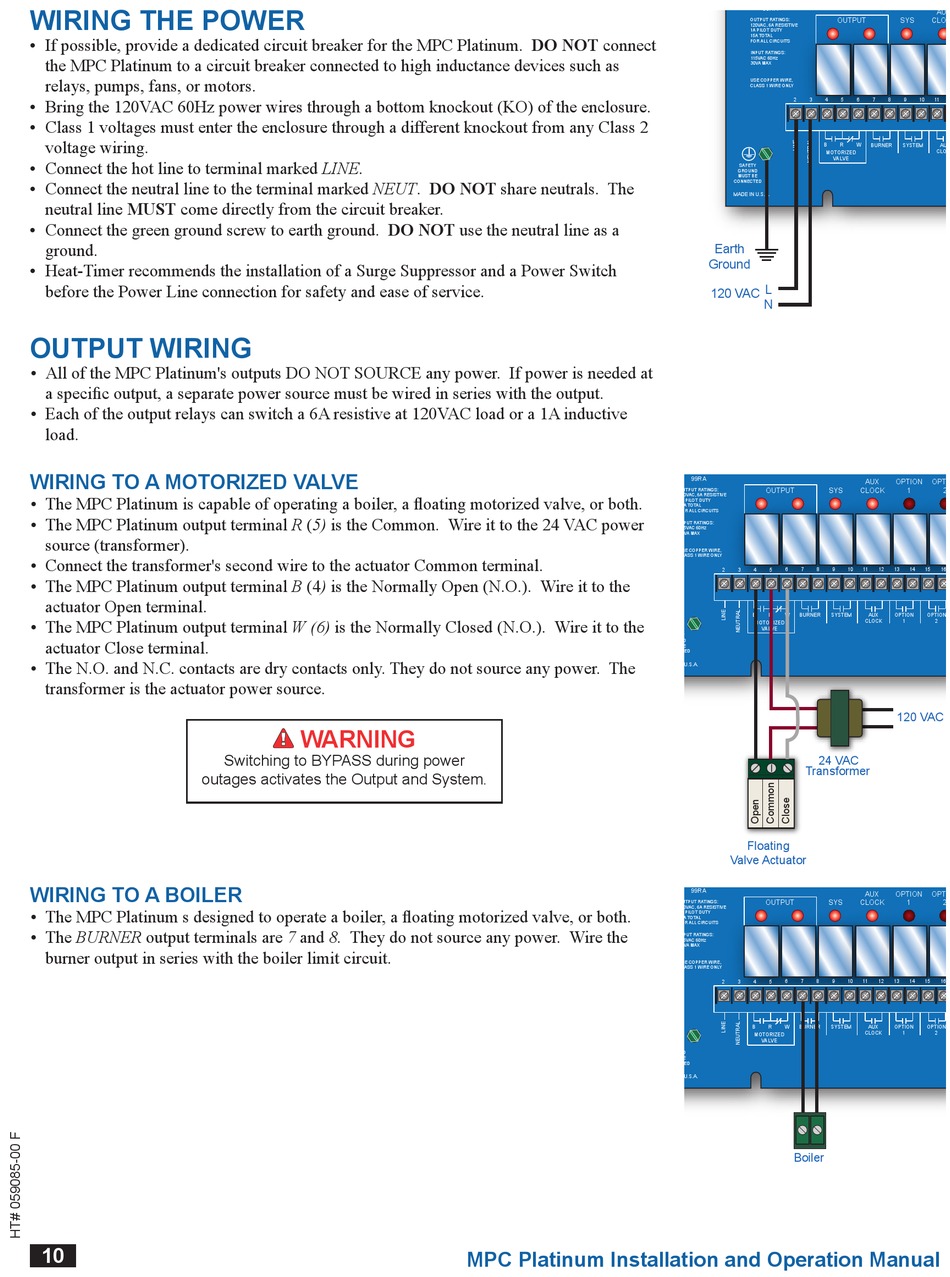

WIRING THE POWER

• If possible, provide a dedicated circuit breaker for the MPC Platinum. DO NOT connect
the MPC Platinum to a circuit breaker connected to high inductance devices such as
relays, pumps, fans, or motors.
• Bring the 120VAC 60Hz power wires through a bottom knockout (KO) of the enclosure.
• Class 1 voltages must enter the enclosure through a different knockout from any Class 2
voltage wiring.
• Connect the hot line to terminal marked LINE.
• Connect the neutral line to the terminal marked NEUT. DO NOT share neutrals. The
neutral line MUST come directly from the circuit breaker.
• Connect the green ground screw to earth ground. DO NOT use the neutral line as a
ground.
• Heat-Timer recommends the installation of a Surge Suppressor and a Power Switch
before the Power Line connection for safety and ease of service.

OUTPUT WIRING

• All of the MPC Platinum's outputs DO NOT SOURCE any power. If power is needed at
a specific output, a separate power source must be wired in series with the output.
• Each of the output relays can switch a 6A resistive at 120VAC load or a 1A inductive
load.

WIRING TO A MOTORIzED VALVE

• The MPC Platinum is capable of operating a boiler, a floating motorized valve, or both.
• The MPC Platinum output terminal R (5) is the Common. Wire it to the 24 VAC power
source (transformer).
• Connect the transformer's second wire to the actuator Common terminal.
• The MPC Platinum output terminal B (4) is the Normally Open (N.O.). Wire it to the
actuator Open terminal.
• The MPC Platinum output terminal W (6) is the Normally Closed (N.O.). Wire it to the
actuator Close terminal.
• The N.O. and N.C. contacts are dry contacts only. They do not source any power. The
transformer is the actuator power source.
outages activates the Output and System

WIRING TO A BOILER

• The MPC Platinum s designed to operate a boiler, a floating motorized valve, or both.
• The BURNER output terminals are 7 and 8. They do not source any power. Wire the
burner output in series with the boiler limit circuit.
10
WARNING
Switching to BYPASS during power
MPC Platinum Installation and Operation Manual
AUTO
ENCLOSED
BYPASS
ENERGY
MANAGEMENT
EQUIPMENT
LISTED
99RA
OUTPUT
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY
15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz
30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY
2 3 4 5
B R
MOTORIZED
VALVE
SAFETY
GROUND
MUST BE
CONNECTED
MADE IN U.S.A.
R
Earth
C O R P O R A T I O N
Ground
Platinum
L
120 VAC
N
MENU FUNCTIONS
SELECT enters menus or accepts changes
ADJUST selects menu items or changes settings MON
BACK returns to previous menu
Cycle On 13/15
DAY selects next day
Cutoff = 55
PREV./NEXT steps through output status
OD = 31
AUTO
ENCLOSED
HELP PREV.
BYPASS
ENERGY
MANAGEMENT
(DEL)
EQUIPMENT
LISTED
99RA
OUTPUT SYS
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY
15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz
30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY
2 3 4 5 6 7 8 9 10
B R W BURNER SYSTEM
MOTORIZED
VALVE
SAFETY
GROUND
MUST BE
CONNECTED R
MADE IN U.S.A.
C O R P O R A T I O N
Platinum
MENU FUNCTIONS
SELECT enters menus or accepts changes
24 VAC
ADJUST selects menu items or changes settings MON
Transformer
BACK returns to previous menu
Cycle On 13/15
DAY selects next day
Cutoff = 55
PREV./NEXT steps through output status
OD = 31
AUTO
Floating
Valve Actuator
ENCLOSED
HELP PREV.
ENERGY BYPASS
MANAGEMENT
(DEL)
EQUIPMENT
LISTED
99RA
OUTPUT SYS
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY
15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz
30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY
2 3 4 5 6 7 8 9 10
B R W BURNER SYSTEM
MOTORIZED
VALVE
SAFETY
GROUND
MUST BE
CONNECTED
MADE IN U.S.A.
Boiler
HELP PREV. DAY NEX
(DEL)
AUX OPTION OPTIO
SYS CLOCK 1 2
6 7 8 9 10 11 12 13 14 15 16
W
BURNER SYSTEM AUX OPTION OPTION
CLOCK 1 2
MPC
INPU
DO NOT APPLY ANY VOLTAG
TO SENSOR TERMINAL
ALL SENSORS MUST B
GOLD SERIES SENSOR
ADJUST
12/01/2010 10:01Am
PRESS TO
SELECT
o
F Day
o o
F SYS = 138 F
BACK
NEXT
DAY
AUX OPTION OPTION OPTION
CLOCK 1 2 3
11 12 13 14 15 16 17 18
AUX OPTION OPTION OPTION
CLOCK 1 2 3
ROUTE SENSOR AND AUXILIA
THROUGH THIS KNOCKO
MPC
INPU
DO NOT APPLY ANY VOLTAGE
TO SENSOR TERMINALS
120 VAC
ALL SENSORS MUST BE
GOLD SERIES SENSORS
ADJUST
12/01/2010 10:01Am
PRESS TO
SELECT
o
F Day
o o
F SYS = 138 F
BACK
DAY NEXT
AUX OPTION OPTION OPTION
CLOCK 1 2 3
11 12 13 14 15 16 17 18
AUX OPTION OPTION OPTION
CLOCK 1 2 3
ROUTE SENSOR AND AUXILIA
THROUGH THIS KNOCKOU
