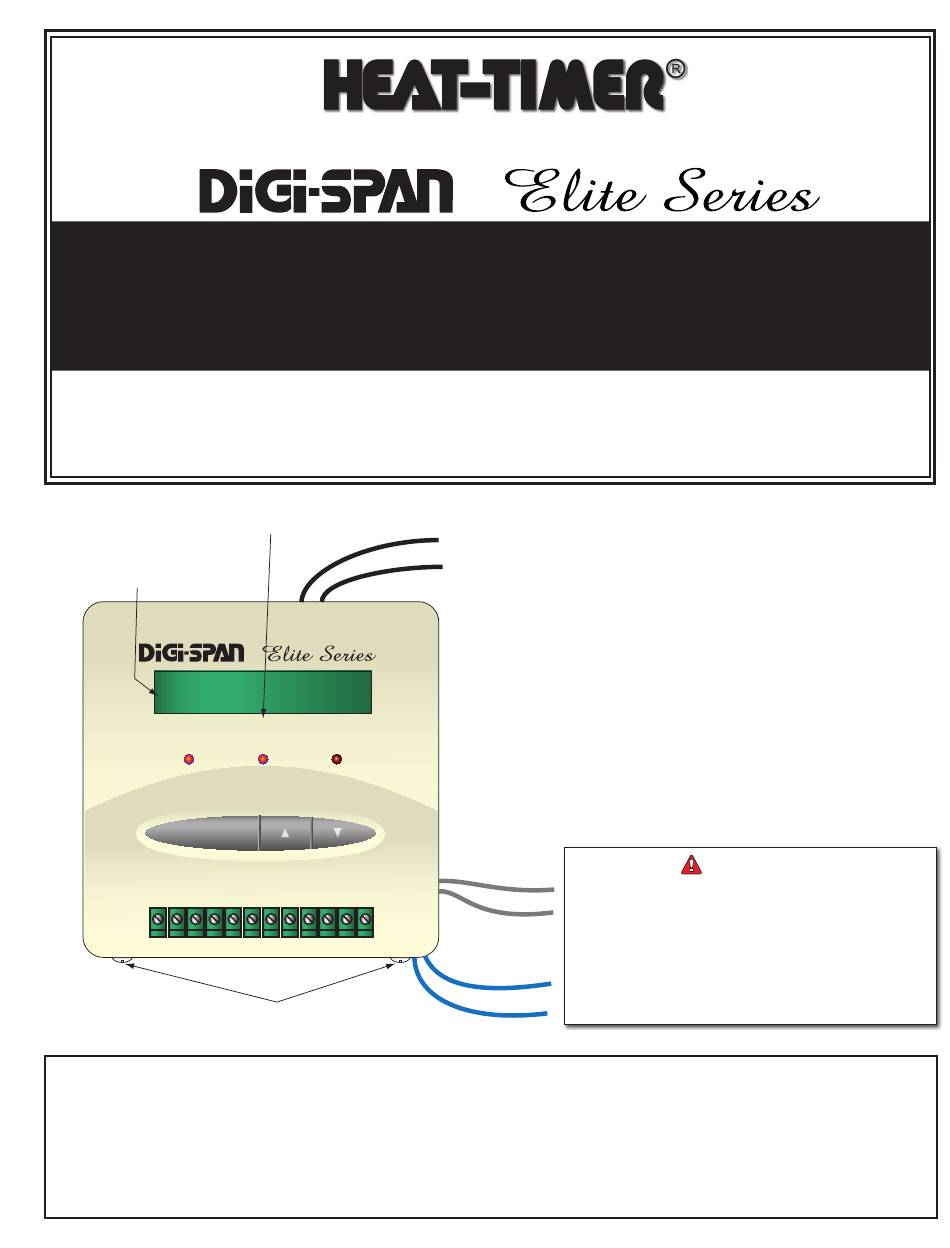

heat-timer DiGi-SPAN Elite Series Installation And Operation Instructions Manual

INSTALLATION AND OPERATION INSTRUCTIONS
Two-Stage Set Point Control
Temp -30˚F - 250˚F (-34˚C-121˚C)
Humidity 0% RH - 100% RH
Vacuum
Output Lights indicate
output status
2 Line Alphanumeric Display
Displays sensor values and
menu settings
SYSTEM =
TARGET =
OUTPUT1
Decrease
SET
Input Terminals
T1 COM T2 COM T3+
Display Section Locking Screws
This Heat-Timer device was thoroughly tested for defects and workmanship before leaving our factory. We do warrant the equipment to be free of defects under normal
use for a period of one year from the date of installation. Transportation charges for factory repairs must be prepaid. Damage to the Heat-Timer device or any of its
components due to misuse, abuse, improper installation, or caused by power failures, fire, flood, or lightning are not covered by this warranty. The company assumes
no liability for indirect or consequential damages of any nature. This Heat-Timer warranty applies only to the original purchaser/user, is not assignable or transferable,
and does not cover damage to the device occurring in shipment. Any service, repairs, modifications or alterations to the unit not expressly authorized by the company
will invalidate the warranty. This warranty is in lieu of all other warranties expressed or implied.
TSC DIGI-E
Pressure
0 Hg - 30 Hg
0mm - 760mm
Black (120VAC power)
®
o
117 F
o o
125 F/150 F
OUTPUT2
Increase System
T3- EXT+EXT- P+ P- COM24VAC
Limited one-year warranty
e'Œšˆ sˆ˜Œˆ™
®
0 PSI - 30 PSI
0 PSI - 100 PS
0 PSI - 200 PSI
0 PSI - 300 PSI
The TSC Elite is a microprocessor based Two-Stage set
point control that provides users with Digital Set Point
capability to measure and control two-stage heating,
cooling, or change-over (Heat/Cool) devices based on
a remote temperature, pressure, vacuum, or humidity
sensor Input. With built-in two Output relays, it is
capable of activating or deactivating equipment and
devices based on the two set points and differential.
Some features that are incorporated into the TSC Elite
include:
• S ensor Fault Output Status.
• E nable Disable Terminals.
• S ensor Trim to calibrate sensor.
• I ndependent or consecutive operating mode.
• B ack-lit 2-Line Alpha-Numeric LCD Display.
• V acuum sensor reading
• E nglish and Metric scales.
OUTPUT1
White N.O.
This Heat-Timer control is strictly an operating
control; it should never be used as a primary
limit or safety control. All equipment must have
its own certified limit and safety controls required
OUTPUT2
by local codes. The installer must verify proper
Blue N.O.
operation and correct any safety problems prior
to the installation of this Heat-Timer control.
lITE
Pressure 0.0 MPa - 0.250MPa
0.0 MPa - 0.600MPa
0.0 MPa - 1.000MPa
0.0 MPa - 1.600MPa
WARNING
