AUTO/BYPASS SWITCH

• The switch must be in the AUTO position for the MPC Platinum to control the heating
system.
• The BYPASS position overrides all automatic control of the MPC Platinum.
• If the MPC Platinum has power and is operational, switching to BYPASS automatically
activates the Motorized Valve, the Burner, and the System output.
• Switching the control to BYPASS manually during a power outage, activates the
Motorized Valve, Burner , and System outputs.
Switching the MPC Platinum into Bypass overrides all automatic operation In
Bypass, the boiler will run constantly on its own limits or the valve will be fully open

SETTING THE CONTROL

DISPLAY AND CHANGING SETTINGS

The MPC Platinum comes with an 80 character (20 character per row x 4
rows) digital display with simple English menus.
ADJUST/SELECT This knob turns to ADJUST and when pressed
it SELECTs. Turn the knob to scroll through
settings. Press a menu option to accept a setting,
BACK Use to go back to the previous menu,
NEXT In Schedules, goes to next schedule period,
DAY In Schedules, advances through weekdays,
PREV.(DEL) Clears a specific schedule setting.
HELP Provides help instructions regarding the current
menu function.

MENU TYPES

When powering up the MPC Platinum for the first time, it will take you through an 70
second count down followed by the System Startup Settings then another 10 second boot
setup and finally end with the default screen. Once the control is mounted and wired, set
up an initial pilot program.
• Set and adjust System Startup Settings: The contractor sets these values after installing
the control for the first time. End users should avoid changing these settings as they
will change the control operating logic. If the Startup Settings are not correct, the MPC
Platinum may operate the system incorrectly.
• Set and adjust System Settings: These settings adjust the system to the specific building
characteristics. These are general settings that control the amount of heat provided. The
default settings will generally work in most applications, but adjustments should fine-
tune the performance of your system.
• Set and adjust Maintenance: Provide calibration tools for the sensors and allow a
password to be set.
• Set and adjust Schedules: Sets the Day/Night heat schedule and the Aux clock schedule.
Four pairs of Day/Night times can be set for each day of the week. In addition, the Aux
relay is capable of following the Aux Schedule. It is programmable to turn on or off up
to eight times per day.
• Shift: Allows you to temporarily shift from Day (higher heat level) to Night (lower
heat level) settings, or vice versa, without reprogramming the times of the Day/Night
Schedule.
16
ALERT
SAFETY
GROUND
MUST BE
CONNECTED
MADE IN U.S.A.
MPC Platinum Installation and Operation Manual
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
LISTED
99RA

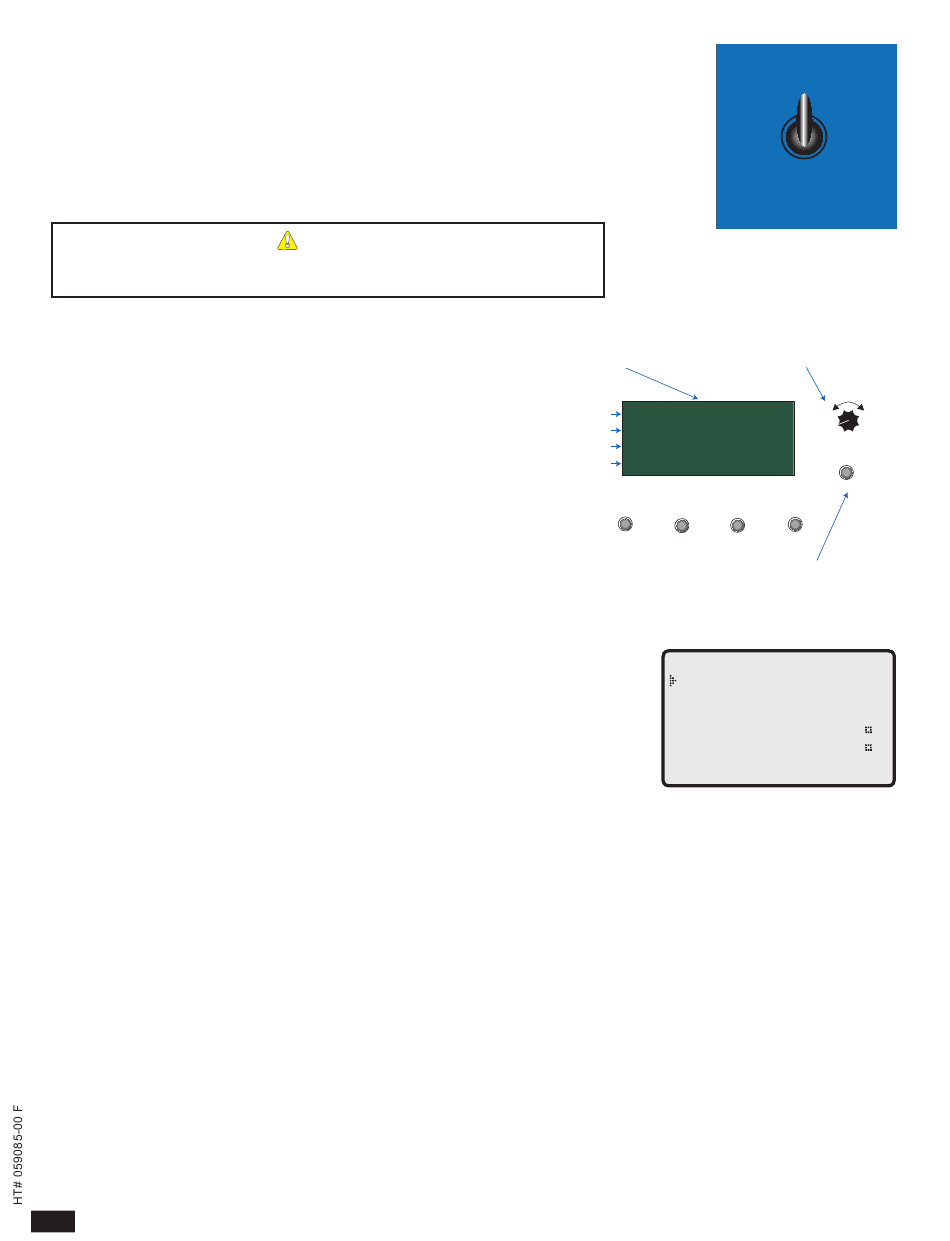

Digital display shows the date, heating
