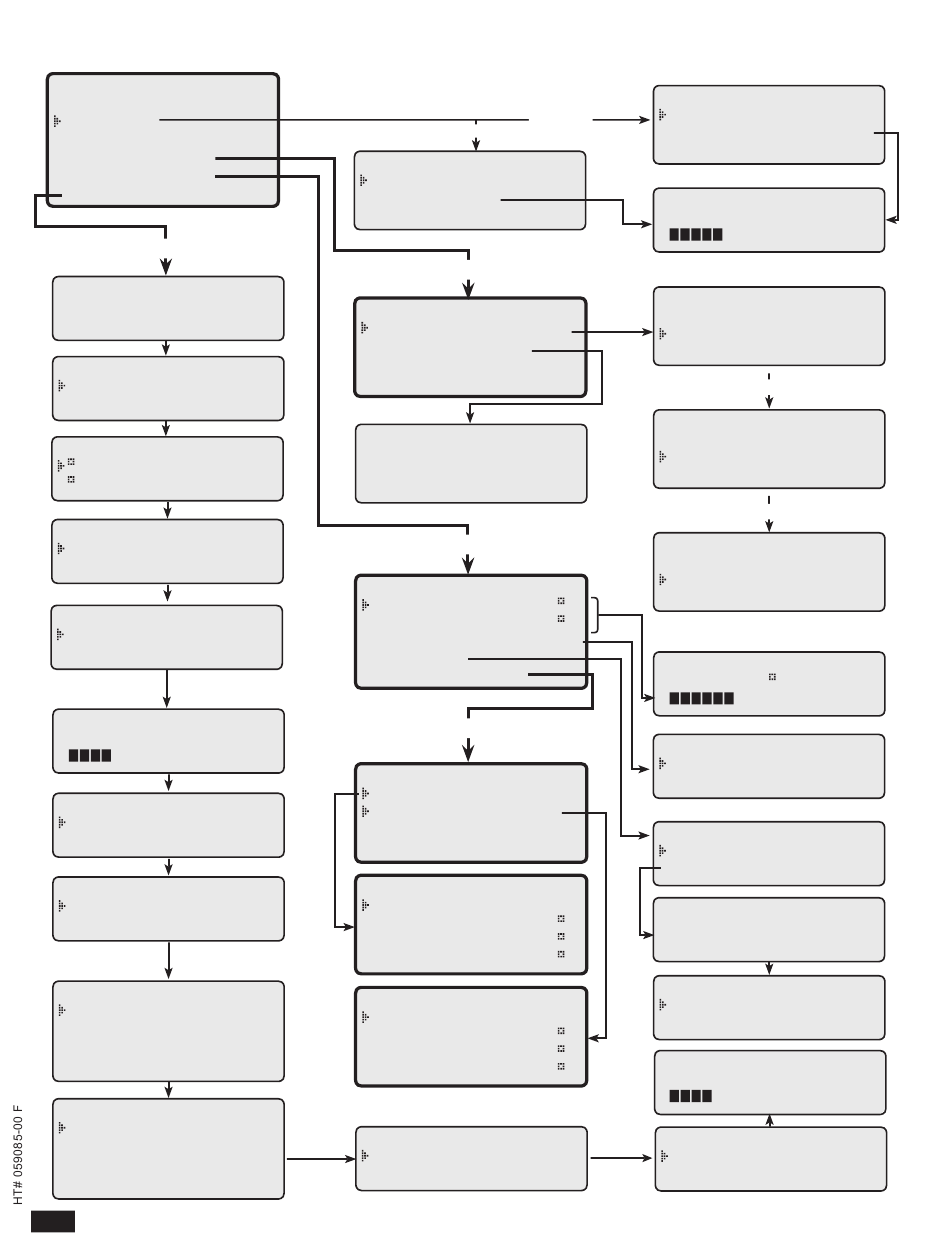

MENU SETTINGS

------ SETTINGS ------
Season Summer
Shift
<System Settings>
<Schedules>
<Maintenance>
<System Startup>
SYSTEM STARTUP pg 20
- SYSTEM STARTUP-
SELECT
To continue
- ARE YOU SURE? -
NO
YES
--- SENSOR TYPE ---
F
C
-- OPERATION MODE --
Burner or Valve
District Steam
SHUTDOWN/TSTAT
---
Shutdown/Disable
Tstat/Enable
--- CYCLE LENGTH ---
60 Min
[
--- SENSOR FAULT ---
Output On
Output Off
- DAY LIGHT SAVING
Enable
Disable
OPTION RELAY 1 MODE
Off
Inverse of Aux
Day
Below Outdoor Cut
OPTION RELAY 2 MODE
Off
Inverse of Output
Heat Established
Summer
18
SHIFT FROM DAY TO
Night
Extend Day
Schedule
SCHEDULES pg 29
----- SCHEDULES -----
Day/Night Schedule
Copy Schedule
Set Date/Time
Aux Schedule
------ SCHEDULES ------
Copy Mon Schedules
To All Other Days
(Select to Execute)
MAINTENANCE pg 31
- MAINTENANCE MENU-
System Trim
---
Outdoor Trim
Fast Cycle
Password
<DHW Settings>
DHW pg 32
]
--- DHW SETTINGS ---
<Supply Settings>
<Return Settings>
Demand Schedule
Copy Schedule
DHW SUPPLY SETTINGS
Use Sensor?
Setpoint
Peak Diff
Light Diff
DHW RETURN SETTINGS
Use Sensor?
Setpoint
Peak Diff
Light Diff
DHW SUPPLY DEFAULT
Off
On
Night
Day
+0 F
+0 F
Off
No
140 F
10 F
20 F
No
120 F
10 F
20 F
MPC Platinum Installation and Operation Manual
SHIFT pg 33
SHIFT FROM NIGHT TO
Extend Day Sched
Day
Schedule
- EXTEND DAY TIME-
90 Min
[
------ SCHEDULES ------
MON # 1
Day Time 6:00Am
Night Time 10:00Pm
Press DAY
------ SCHEDULES ------
TUE # 1
Day Time 6:00Am
Night Time 10:00Pm
Press NExT
------ SCHEDULES ------
TUE # 2
Day Time **:**
Night Time **:**
---- SYSTEM TRIM ----
+0 F
[
- FAST CYCLE TEST -
Off
On
PASSWORDS ENABLED?
No
Yes
--------- LOGIN ---------
Enter Password:
****
CHANGE PASSWORD?
No
Yes
--- SET YEAR ---
2000
[
DHW RETURN DEFAULT
Off
On
]
]
]
