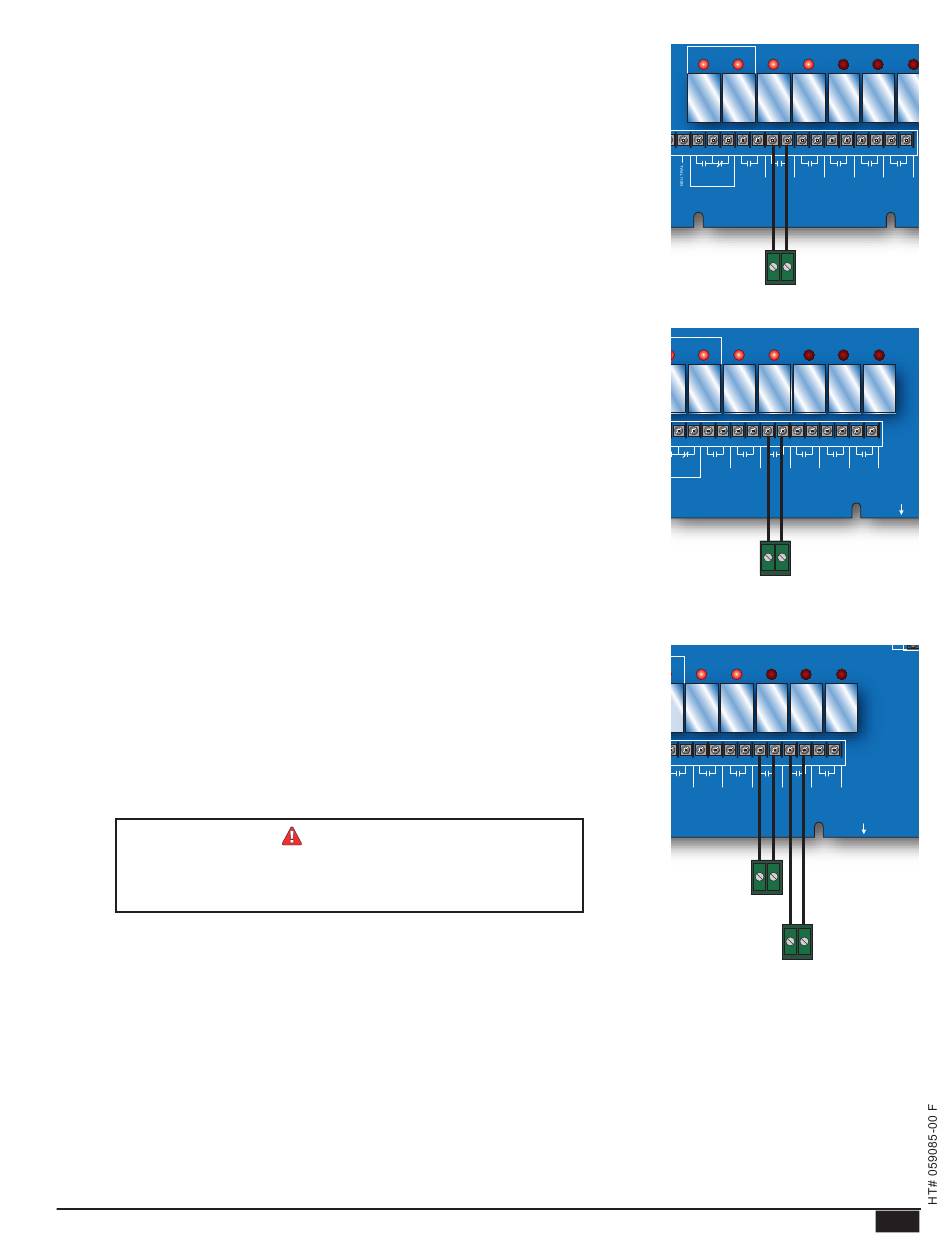

WIRING TO SYSTEM OUTPUT

• The MPC Platinum is equipped with a System output to operate additional equipment.
The most common use for this output is operating a combustion air-damper.
• The SYSTEM output terminals are 9 and 10. These terminals do not source any power.
Wire these terminals directly to the combustion air-damper activation terminals.
• The contacts can switch a 6A resistive at 120VAC load.
• A good practice is to use the MPC Platinum's Prove input terminals to connect to the
combustion air-damper End Switch. This prevents the MPC Platinum from activating
the boiler before fully opening the damper. See "Wiring The Prove" on page 12.
• The System relay energizes whenever the Output relay energizes. When the Output relay
de-energizes, the System relay remains energized for the System Run-On period before
de-energizing.

WIRING TO AUxILIARY CLOCk

• The MPC Platinum is equipped with an AUX CLOCK output (terminals 11 and 12). Use
the output to operate additional equipment based on the Aux Schedule. A common use is
to turn on and off a set of lights based on a schedule. See "Aux Relay Schedule" on page
30.
• The AUX CLOCK output terminals do not source any power. Wire the AUX CLOCK
terminals directly to the equipment activation terminals if the equipment does not require
any power.
• If the equipment controlled require powering, make sure that its power consumption does
not exceed the output relay rating. Otherwise, use an isolation relay.

WIRING TO OPTION OUTPUTS

• The MPC Platinum is equipped with three optional relay outputs (OPTION1 terminals 13
and 14, OPTION2 terminals 15 and 16, and OPTION3 terminals 17 and 18). Use these
outputs to operate additional equipment based on the control logic. Each of the Option
output relays has different logic operating choices. Select the desired choice from the
Startup Menu. See "Option Outputs Modes" on page 21.
• If the control is an Internet capable control, the OPTION3 output relay will function as a
relay to manage a cable or DSL modem's power.
On Internet capable controls, you MUST use Option 3 output to
manage the power to Cable and DSL modems However, DO NOT
use Option 3 Output to manage the power to Cellular Modems
• The OPTION output terminals do not source any power. Wire the OPTION terminals
directly to the equipment activation terminals if the equipment does not require any
power.
• If the equipment controlled require powering, make sure that its power consumption does
not exceed the output relay rating. Otherwise, use an isolation relay. In this case, use the
OPTION terminal to break the hot power wire. going to the equipment. Then, connect
the neutral wire directly the equipment second terminal.
