2.2 How to Order

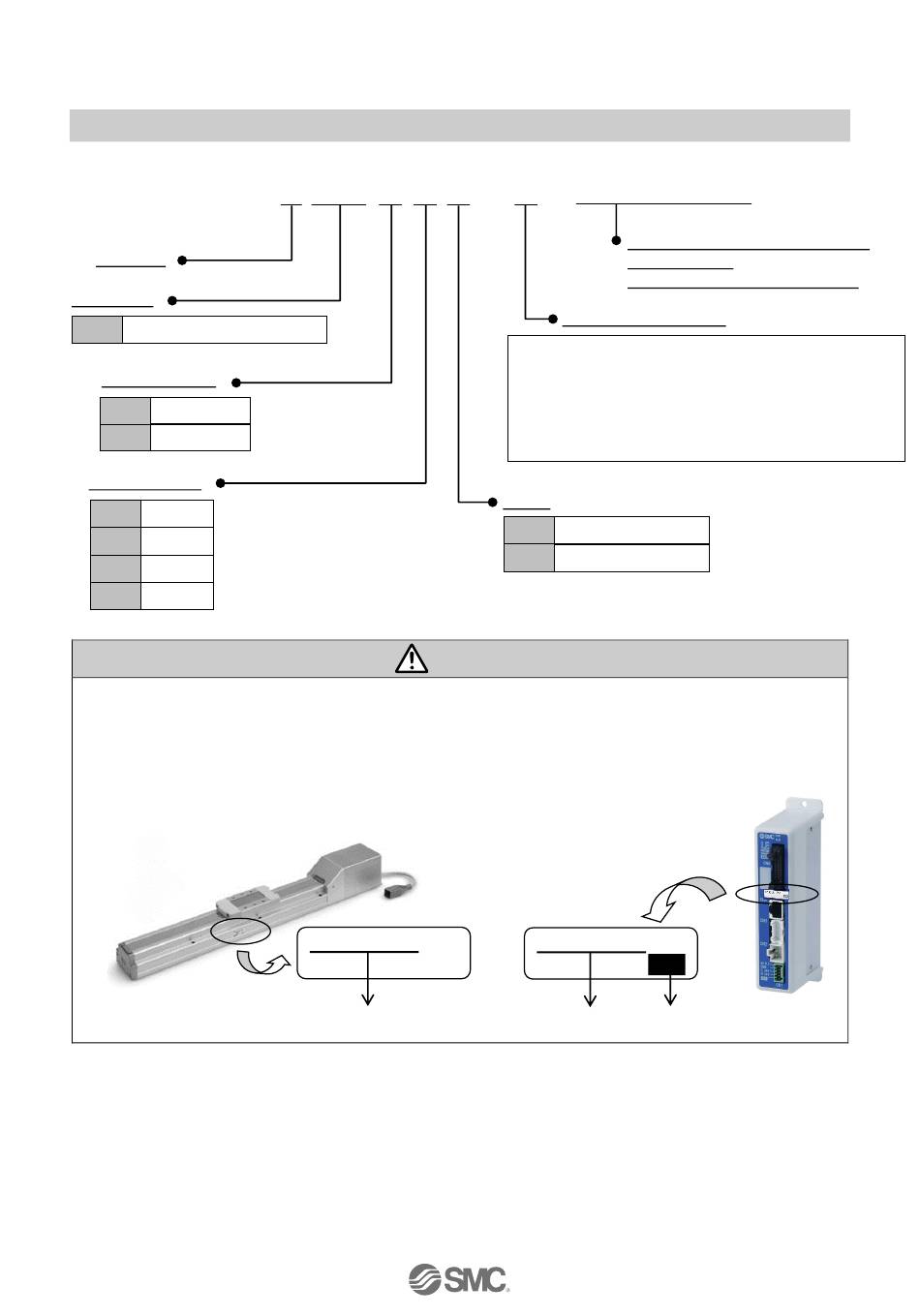

The part number construction for this product is as follows:
Ｌ Ｅ Ｃ Ｐ ６ Ｎ □ □ － □ － Ｘ Ｂ １ ２ ０
U
Controller
U C ompatible
Step motor(Servo / 24VDC)
P6
U Parallel I/O type
NPN type
N
PNP type
P
I/O cable length
Nil None
1 1.5m
3 3m
5 5m
Products are shipped after setting the electric actuator specification parameters.
Confirm the combination of the controller and the electric actuator is correct.
<Check the following before use.>
(1) Check the electric actuator label for the model number. Check that this matches the controller.
(2) Check Parallel I/O configuration matches (NPN or PNP)
Electric actuator
Caution
LEFS25B-100
(1)
- 6 -
With JOG input terminal, WAREA
output function
(Number of step data: 32 points)
Electric actuator model
Stroke example: For LEFS25B-100B-S36N1,
specify LEFS25B-100.
Rotating angle: For LER10K-2L-R16N1D,
specify LER10K-2.
(Enter from the electric actuator part number "LE" to
"stroke / rotating angle")
Option
Screw mounting
Nil
DIN rail mounting
D
Controller
LEFS25B-100
NPN
(1) (2)
No.JXC※-OMW1019-A
