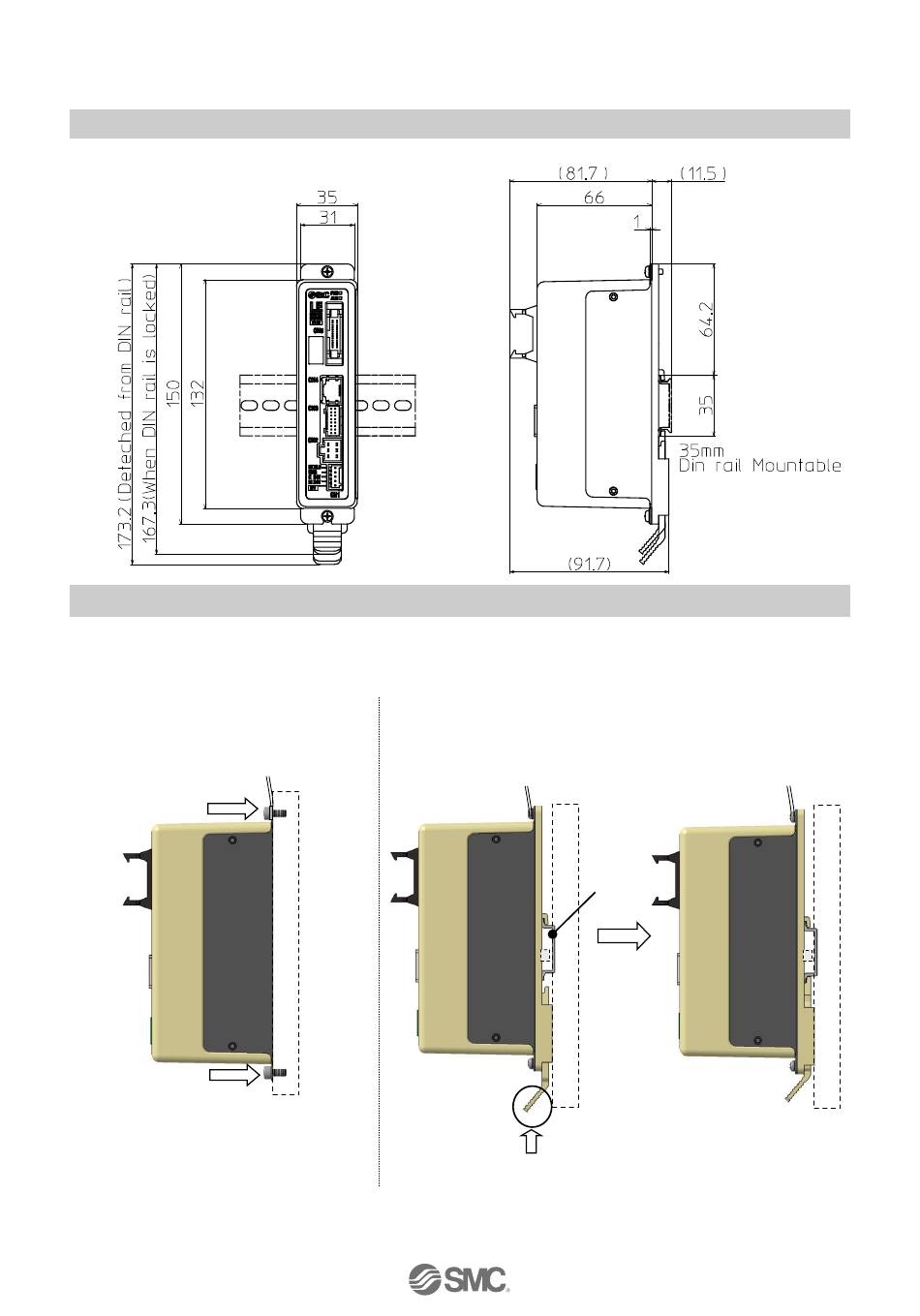

(2) DIN rail mount type (LECP6##D-#-XB120)
3.2 How to install
How to install
The controller can be direct mounted using screws or mounted on a DIN rail.
The followings are the descriptions on how to install each type:
1) Screw mount type
(LECP6##-#-XB120)
(Installation with two M4 screws)
Screw direction
Screw direction
2) DIN rail mount type
(LECP6##D-#-XB120)
(Installation with the DIN rail)
Ground wire
Hook the controller on the DIN rail and
press the lever of section A in the arrow
direction to lock it.
- 8 -
Ground wire
DIN rail
A
DIN rail is locked.
Ground wire
No.JXC※-OMW1019-A
