- Page 1 Lithium-Ion Phosphate Battery PowerCube-M1 Product Manual Information Version: 2.1...
-
Page 2: Table Of Contents
This manual introduces PowerCube-M1 from Pylontech. PowerCube-M1 is a high voltage Lithium-Ion Phosphate Battery storage system. Please read this manual before you install the battery and follow the instruction carefully during the installation process. Any confusion, please contact Pylontech immediately for advice and clarification. -
Page 3: Safe Handling Of Lithium Batteries Guide
5) In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited; 6) Please do not open, repair or disassemble the battery except staffs from Pylontech or authorized by Pylontech. We do not undertake any consequences or related responsibility which because of violation of safety operation or violating of design, production and equipment safety standards. - Page 4 Reminded 1) Please read the user manual carefully (in the accessories); 2) If the battery is stored for long time , it is required to charge them every six months, and the SOC should be no less than 80%; 3) Battery needs to be recharged within 12 hours, after fully discharged; 4) Do not expose cable outside;...
-
Page 5: Introduction

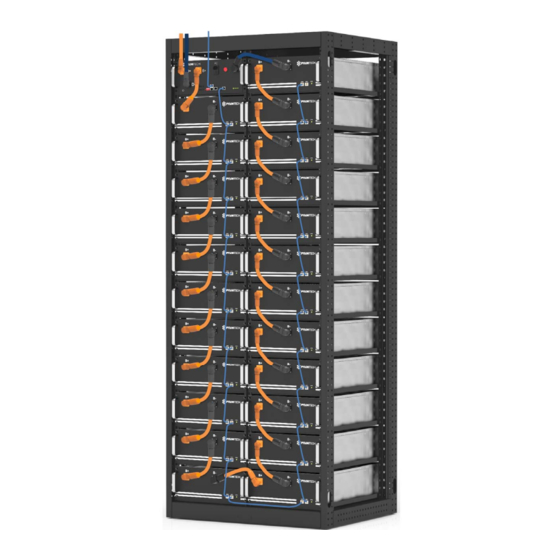

PowerCube-M1 is a high voltage battery storage system based on lithium iron phosphate battery, is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems. PowerCube-M1 is especially suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life. -
Page 6: Specifications
2.2 Specifications 5 / 15 18 PIMP0801... -
Page 7: The Parameter Of System
2.2.1 The parameter of system POWERCUBE-M1 Item (736V148AH) Cell Technology Li-ion (LFP) Battery System Capacity (kWh) 108.9 Battery System Voltage (V Battery System Capacity (Ah) Battery Controller Name SC1000-200 Battery Module Name H32148 Battery Module Quantity (pcs) Battery Module Capacity (kWh) 4.74... -
Page 8: Battery Module (H32148-10S)
2.2.2 Battery Module (H32148-10S) Product Type H32148-10S Cell Technology Li-ion(LFP) Battery Module Capacity (kWh) 4.736 Battery Module Voltage (Vdc) Battery Module Capacity (AH) Battery Module Quantity (pcs) Battery Cell Capacity (Wh) 118.4 Battery Cell Voltage (Vdc) Battery Cell Capacity (AH) Battery Module Cell Quantity in Series (pcs) Battery Module Charge Voltage (Vdc) Battery System Charge Current (Standard) -
Page 9: Battery Module (H32148) Front Interface
Battery Module (H32148) Front Interface Power Terminal +/- To connect battery series power cables. Status ● ● Status light: to show the battery module’s status ( Normal Abnormal RS232 Terminal Console Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer or professional engineer to debug or service. -
Page 10: Control Module (External Power Supply)
2.2.3 Control Module (External Power Supply) PowerCube-M1’s Control Module has only external power supply. Control Module (SC1000-200E) Front Interface External Power Terminal +/- Connect battery system with Inverter. Power Terminal +/- To connect battery power cables in series. AC Input AC Socket and Control Module Power Switch: External power supply Control Module has an Australia or Europe standard AC Power input socket and power switch. -
Page 11: Definition Of Rj45 Port Pin
Dry Contact Terminal Dry Contact Terminal: provided 2 input and 4 output dry contact signal. Reset Reset Button: Long press this button to restart the battery system. ADD: 6 bit dial switches to manually distribute the communication address of the battery system. -
Page 12: Led Indicators Instructions
Status Status light: to show the battery module’s status (RUN , Alarm and Protection ● ● LED Status Indicators Battery capacity indicator: 4 green lamps, each light represent 25% capacity. LED Indicators Instructions Protection / Capacity SOC Descriptions Battery Alarm / ●... -
Page 13: Rd Level Control Module (Mbms)
2.2.4 3 Level Control Module (MBMS) MBMS is the controller for multiple battery piles in parallel connection. If the power supply is 220Vac, an adaptor (220Vac to 12Vdc) will be provided. Serial Product Model MBMS1000 Number Operating voltage range 12 Vdc Communication interface CAN*2/RS485*2/Ethernet*2 Output dry contact interface... -
Page 14: Under Ethernet Communication Between Mbms And Bms (Battery String Qty. 1~32 Set)
Note: X address should correspond with CAN1 port, X address should correspond with CAN0 port. The BMS’s first five bits must set in below <BMS’s Address Configure Table>. The last BMS’s terminal resistance must set in “1” (X=1), and other BMS’s terminal resistance must set in “0”. The address is configured follow ASCII code: (“X”... -
Page 15: Multi Mbms Communication Mode
Battery Battery Battery Battery Address Bit Address Bit Address Bit Address Bit String String String String 10000X 10010X 10001X 10011X 01000X 01010X 01001X 01011X 11000X 11010X 11001X 11011X 00100X 00110X 00101X 00111X 10100X 10110X 10101X 10111X 01100X 01110X 01101X 01111X 11100X 11110X 11101X... -
Page 16: Definition Of Rj45 Port Pin
RS232 Console Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer or professional engineer to debug or service. Definition of RJ45 Port Pin RS485 RS232 Pin Link Port Pin CANH CANH CANL CANL RS485A RS485B Status Status light: to show the battery module’s status (RUN , Alarm and Protection ●... - Page 17 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China T+86-21-51317697 | +86-21-51317698 Eservice@pylontech.com.cn Wwww.pylontech.com.cn...
