Lithium-Ion Phosphate Battery
PowerCube-M1 Product Manual
Information Version: 2.0
No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park
Pudong, Shanghai 201203, China Zip Code: 201203
1 / 24
Pylon Technologies Co., Ltd.
Email:
service@pylontech.com.cn
Website:
http://www.pylontech.com.cn
Tel: 021-51317697
Fax: 021-51317698
17PIMV1101

Advertisement

Table of Contents
loading

Related Manuals for Pylontech PowerCube-M1

Summary of Contents for Pylontech PowerCube-M1

  • Page 1 Lithium-Ion Phosphate Battery PowerCube-M1 Product Manual Information Version: 2.0 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Zip Code: 201203 Tel: 021-51317697 Fax: 021-51317698 Email: service@pylontech.com.cn Website: http://www.pylontech.com.cn 1 / 24...

  • Page 2: Table Of Contents

    This manual introduces PowerCube-M1 from Pylontech. PowerCube-M1 is a high voltage Lithium-Ion Phosphate Battery storage system. Please read this manual before you install the battery and follow the instruction carefully during the installation process. Any confusion, please contact Pylontech immediately for advice and clarification.

  • Page 3: Safe Handling Of Lithium Batteries Guide

    5) In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited; 6) Please do not open, repair or disassemble the battery except staffs from Pylontech or authorized by Pylontech. We do not undertake any consequences or related responsibility which because of violation of safety operation or violating of design, production and equipment safety standards.
  • Page 4 eminded Please rea ad the user manual ca refully (in th he accessor ries); If the batt tery is stored d for long t ime , it is re equired to c charge them m every six months, an the SOC s hould be no o less than 8 80%;...

  • Page 5: Introduction

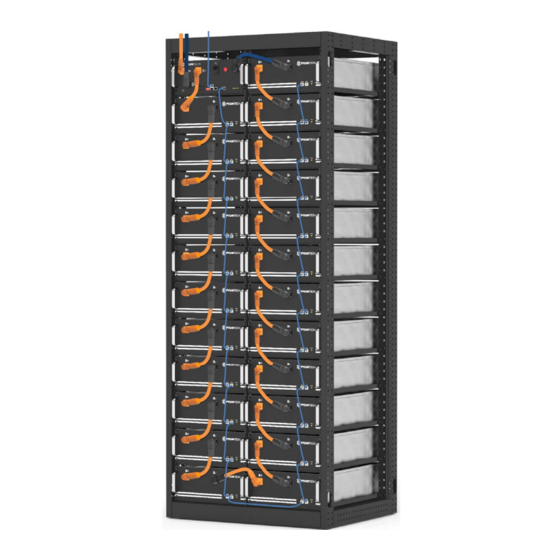

    PowerCube-M1 is a high voltage battery storage system based on lithium iron phosphate battery, is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems. PowerCube-M1 is especially suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life.
