Lithium-Iron Phosphate Battery
US2000 (Version B) Product Manual
Pylon Technologies Co., Ltd.
No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park
Pudong, Shanghai 201203, ChinaZip Code: 201203
Tel: 021-51317697
Fax: 021-51317698
Email:
service@pylontech.com.cn
Website:
http://www.pylontech.com.cn
Information Version: 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pylontech US2000
Summary of Contents for Pylontech US2000
- Page 1 Lithium-Iron Phosphate Battery US2000 (Version B) Product Manual Information Version: 1.0 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, ChinaZip Code: 201203 Tel: 021-51317697 Fax: 021-51317698 Email: service@pylontech.com.cn Website: http://www.pylontech.com.cn...
-
Page 2: Table Of Contents
This manual introducesUS2000 (VERSION B) from Pylontech. Please read this manual before you install the battery and follow the instruction carefully during the installation process. Any confusion, please contact Pylontech immediately for advice and clarification. Contents 1.SAFETY PRECAUTIONS..............................1.1 Before using................................ -
Page 3: Safety Precautions
. Safety Precautions Reminded 1) It is very important and necessary to read the user manual carefully (in the accessories) before installing or using battery. Failure to do so or to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, or death, or can damage battery, potentially rendering it inoperable. -
Page 4: In Using
5) In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited; 6) Please do not open, repair or disassemble the battery except staffs from Pylontech or authorized by Pylontech. We do not undertake any consequences or related responsibility which because of violation of safety operation or violating of design, production and equipment safety standards. -
Page 5: Introduction
2. Introduction US2000 (VERSION B) lithium iron phosphate battery is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems. US2000 (VERSION B) is especially suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life. -
Page 6: Specifications
2.2 Specifications Basic Parameters US2000 (VERSION B) Nominal Voltage（V） Nominal Capacity（Ah） Dimension（mm） 440*410*89 Weight（Kg） Discharge Voltage（V） 45 ~ 54 Charge Voltage（V） 52.5 ~ 54 Peak Discharge Power（W） 5KW@1Min Peak Charge Power（W） 5KW@1Min Communication RS232，RS485，CAN 0℃~50℃ Charge Working Temperature -10℃~50℃ Disharge Shelf Temperature -20℃~60℃... -
Page 7: Equipment Interface Instruction

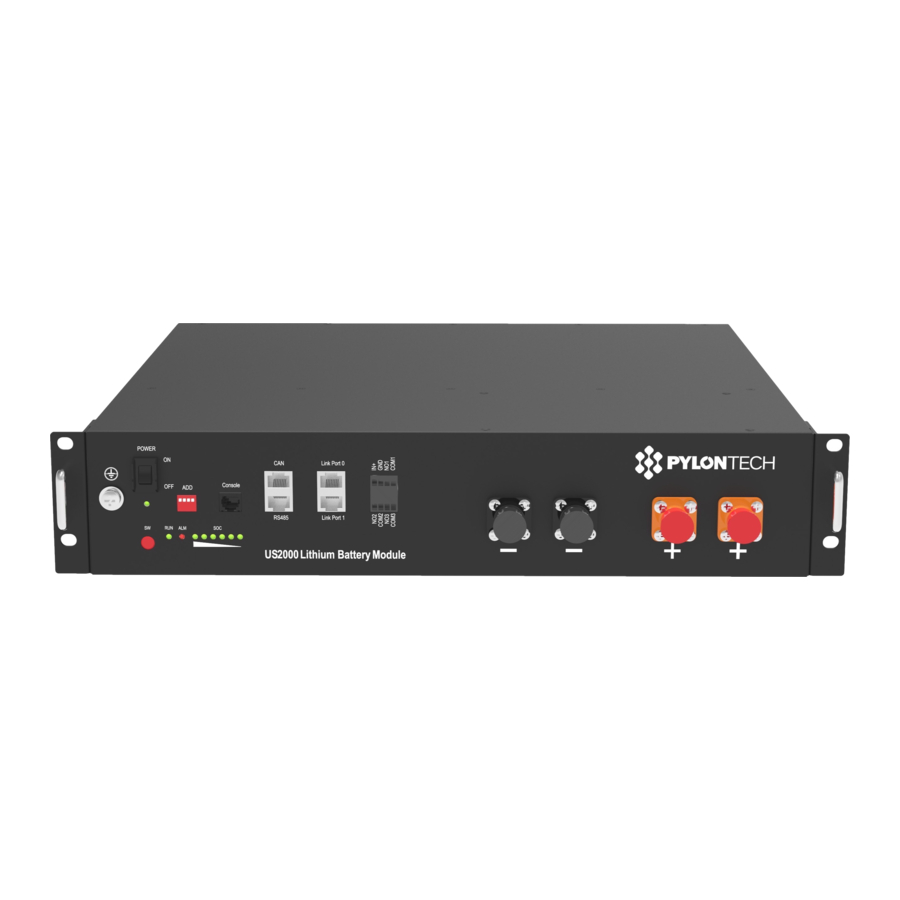

2.3 Equipment Interface Instruction This section details the front and back panel of the interface functions. US2000 (VERSION B) Product Front Interface Power Switch Power Switch: to turn ON/OFF the whole battery BMS standby, no power output. RUN light: to show the Power Switch is ON, and the BMS has electricity (No power). -
Page 8: Definition Of Rj45 Port Pin
RS485 R485 Communication Terminal: (RJ45 port) follow RS485 protocol, for output batteries information. Link Port 0, 1 Link Port 0, 1 Communication Terminal: (RJ45 port) follow RS485 protocol, for communication between multiple parallel batteries. Definition of RJ45 Port Pin RS485 Pin CAN Pin RS485B RS485A... -
Page 9: Led Indicators Instructions
Dry Contact Terminal Dry Contact Terminal: provided 1 way input and 3 ways output dry contact signal. LED Status Indicators RUN Lamp (No.6 Figure 2-1): green, long lighting when charging and flash when discharging; ALM Lamp (No.7 Figure 2-1 7): red, flashes when alarm and long bright if equipment failure or protected;... -
Page 10: Safe Handling Of Lithium Batteries Guide
BMS function: Protection and Alarm Management and Monitor Charge/Discharge End Cells Balance Charge Over Voltage Intelligent Charge Model Charge/Discharge Over Current Charge/Discharge Current Limit High/Low Temperature Capacity Retention Calculate Short Circuit Administrator Monitor Power Cable Reverse Operation Record 3. Safe handling of lithium batteries Guide 3.1 Schematic Diagram of Solution 3.2 Explanation of Symbol 16BISV0903... -
Page 11: Tools
3.3 Tools The following tools are required to install the battery pack Wire cutter Crimping Modular Plier Screw Driver NOTE Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape. -
Page 12: Installation
4. Installation 4.1 Package Items Unpacking and check the Packing List 1) For battery module package: Two power cables and one communication cable for each battery package: Grounding cable : 2) For battery system connects to inverter: Two long power cables (current capacity 120A) and one communication cable for each energy storage system: NOTE These three long cables are NOT in battery package, they are in another extra small cable... -
Page 13: Installation Location
4.2 Installation Location Make sure that the installation location meets the following conditions: The area is completely water proof. The floor is flat and level. There are no flammable or explosive materials. The ambient temperature is within the range from 0°C to 50°C. ... - Page 14 Put the battery into the cabinet; Drive the 4 pcs screws; Connect the cables between battery modules Connect the cables to inverter 16BISV0903...
- Page 15 B. Power On Double check all the power cable and communication cable. (1) Switch power on Switch on all the battery modules and the green LED light below will be on: emptyLink Port 0 is the Master Battery Module, others are slaves: (2) The one with 16BISV0903...
- Page 16 (3) Press the red button of master battery to power on, all the battery LED light will be on one by one from the Master battery: If all the battery LED lights on, and then off, which means the battery system is good and working.
- Page 17 1.Dismantle the 2 tabs on the Battery. Dismantle 8 Screws. 16BISV0903...
- Page 18 Aim at the 4 pare of Location Pin and Location Hole, stack the batteries together. And hasp the 4 agraffes together. 16BISV0903...
- Page 19 Maximum 4 batteries can be athwart stacked： One or two batteries can be sidelong stacked： Cables connection and batteries system start are same as cabinet installation. NOTE After installation, do not forget to register online for full warranty: www.pylontech.com.cn/service/registration 16BISV0903...
-
Page 20: Trouble Shooting Steps
If the battery external switch is ON, the RUN light is flashing, and the external power supply voltage is 48V or more, the battery still unable to turn on, please contact Pylontech. 2) The battery can be turned on, but red light is lighting, and cannot charge or discharge. If the red light is lighting, that means system is abnormal, please check values as following: a) Temperature: Above 50℃... -
Page 21: Emergency Situations
Damaged batteries are dangerous and must be handled with the utmost care. They are not fit for use and may pose a danger to people or property. If the battery pack seems to be damaged, pack it in its original container, and then return it to Pylontech or an authorized dealer. NOTE Damaged batteries may leak electrolyte or produce flammable gas. - Page 22 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China T+86-21-51317697 | +86-21-51317698 Eservice@pylontech.com.cn Wwww.pylontech.com.cn...
