Pylontech US3000 Plus Product Manual

Lithium-iron phosphate battery
Hide thumbs
Table of Contents

Advertisement

Quick Links

Lithium-Iron Phosphate Battery
US3000 Product Manual
Information Version: 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the US3000 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Pylontech US3000 Plus

Summary of Contents for Pylontech US3000 Plus

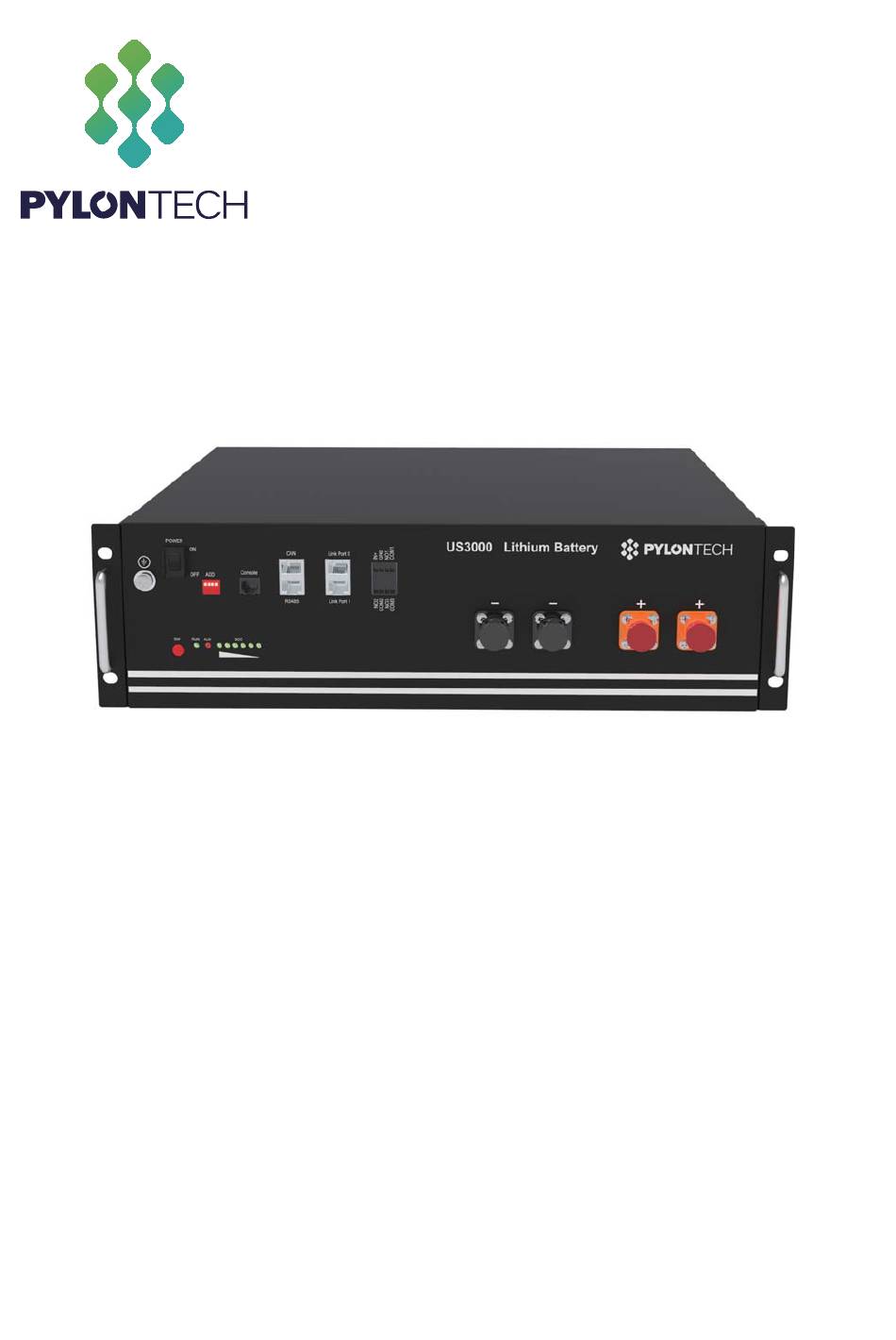

  • Page 1 Lithium-Iron Phosphate Battery US3000 Product Manual Information Version: 1.1...

  • Page 2: Table Of Contents

    This manual introduces US3000 Plus from Pylontech. Please read this manual before you to install the battery and follow the instruction carefully during the installation process. Any confusion, please contact Pylontech immediately for advice and clarification. Contents 1. SAFETY PRECAUTIONS ........................... 1 1.1 Before Connecting ........................

  • Page 3: Safety Precautions

    1. Safety Precautions Reminding 1) It is very important and necessary to read the user manual carefully (in the accessories) before installing or using battery. Failure to do so or to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, or death, or can damage battery, potentially rendering it inoperable.
  • Page 4 5) In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited; 6) Please do not open, repair or disassemble the battery except staffs from Pylontech or authorized by Pylontech. We do not undertake any consequences or related responsibility which because of violation of safety operation or violating of design, production and equipment safety standards.

  • Page 5: Introduction

    2. Introduction US3000 Plus lithium iron phosphate battery is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems. US3000 Plus is especially suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life.

  • Page 6: Specifications

    2.2 Specifications Basic Parameters US3000 Plus Recommend Charge/Discharge Current (A) Peak Charge/Discharge 0 ~50 Charge Working Temperature -10 ~50 Discharge Shelf Temperature -20 ~60 f i t Ü Design life 10+ Years (25 /77 ) Cycle Life >4,500 25 4 / 23...

  • Page 7: Equipment Interface Instruction

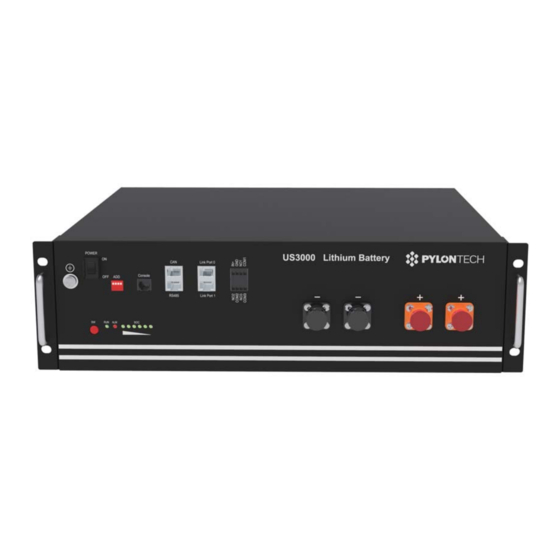

    2.3 Equipment Interface Instruction This section details the front and back panel of the interface functions. US3000 Plus Product Front Interface Power Switch Power Switch: to turn ON/OFF the whole battery BMS standby, no power output. ON/OFF ON/OFF light: green LED lighting to show the Power Switch is ON, and the BMS has electricity (No power output).

  • Page 8: Definition Of Rj45 Port Pin

    The slave battery’s address will be assigned automatically. 1 master battery can supervise 7 slave batteries (maximum 8 batteries in each battery group). Multiple battery groups should setup the master batteries’ ADD switch. (Refer to Chapter 4 / D) Dip2 Dip3 Dip4 Group Address Number...

  • Page 9: Definition Of Rj11 Port Pin

    Definition of RJ11 Port Pin 232 Pin Power Terminals Power cable terminals: there are two pair of terminals with same function, one connect to equipment, the other one paralleling to other battery module for capacity expanding. For each single module, each terminal can achieve charging and discharging function.

  • Page 10: Led Indicators Instructions

    LED Indicators Instructions Condition Power off Power on Idle/Normal Show soc; highest LED flash Charge on: 0.5s; off 0.5s Discharge Show soc Alarm ALR: ; Other LEDs are same as above. System error/Protect flash, on: 0.3s; off: 3.7s flash, on:0.5s; off: 1.5s BMS function: Protection and Alarm Management and Monitor...

  • Page 11: Safe Handling Of Lithium Batteries Guide

    3. Safe handling of lithium batteries Guide 3.1 Schematic Diagram of Solution INVERTER PV ARRAY Public Grid Local Load BATTERY MODULE 3.2 Explanation of Symbol 18BQSV0801 9 / 23...

  • Page 12: Tools

    3.3 Tools The following tools are required to install the battery pack Wire cutter Crimping Modular Plier Screw Driver NOTE Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape.

  • Page 13: Installation

    4. Installation 4.1 Package Items Unpacking and check the Packing List 1) For battery module package: Two power cables and one communication cable for each battery package: Grounding cable: 2) For Battery system connects to inverter: Two long power cables (current capacity 120A) and one communication cable for each energy storage system: NOTE These three long cables are belonging to External Cable Kit, NOT in battery package.

  • Page 14: Installation Location

    4.2 Installation Location Make sure that the installation location meets the following conditions: The area is completely water proof. The floor is flat and level. There are no flammable or explosive materials. The ambient temperature is within the range from 0°C to 50°C. The temperature and humidity is maintained at a constant level.
  • Page 15 Put the battery into the cabinet; Drive the 4 pcs screws; Connect the cables between battery modules Connect the cables to inverter 18BQSV0801 13 / 23...

  • Page 16: Power On

    B. Power On Double check all the power cable and communication cable. (1) Switch power on Switch on all the battery modules: (2) The one with empty Link Port 0 is the Master Battery Module, others are slaves (1 master battery configure with maximum 7 slave batteries): 14 / 23 18BQSV0801...

  • Page 17: Installation With Bracket

    (3) Press the red button of master battery to power on, all the battery LED light will be on one by one from the Master battery: If all the battery LED lights on, and then off, which means the battery system is good and working. C.
  • Page 18 16 / 23 18BQSV0801...
  • Page 19 Aim at the 4 pare of Location Pin and Location Hole, stack the batteries together. And hasp the 4 agraffes together. 18BQSV0801 17 / 23...
  • Page 20 Maximum 4 batteries can be athwart stacked One or two batteries can be sidelong stacked Cables connection and batteries system start are same as cabinet installation. 18 / 23 18BQSV0801...

  • Page 21: Multiple Battery Groups Can/Rs485 Communication Cable Connection

    NOTE After installation, do not forget to register online for full warranty: http://www.pylontech.com.cn/service/support NOTE To start the system, if has grid power, it should turn on the inverter at first, to avoid current pulse of the inverter add on the battery bank.
  • Page 22 20 / 23 18BQSV0801...

  • Page 23: Trouble Shooting Steps

    5. Trouble Shooting Steps 5.1 Problem determination based on: 1) Whether the battery can be turned on or not; 2) If battery is turned on, check the red light is off, flashing or lighting; 3) If the red light is off, check whether the battery can be charged/discharged or not. 5.2 Preliminary determination steps: 1) Battery cannot turn on, switch on the lights are all no lighting or flashing.

  • Page 24: Emergency Situations

    Damaged batteries are dangerous and must be handled with the utmost care. They are not fit for use and may pose a danger to people or property. If the battery pack seems to be damaged, pack it in its original container, and then return it to Pylontech or an authorized dealer. NOTE Damaged batteries may leak electrolyte or produce flammable gas.
  • Page 25 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China T+86-21-51317697 | +86-21-51317698 Eservice@pylontech.com.cn Wwww.pylontech.com.cn...
