Pylontech Phantom-S Product Manual

Lithium-ion phosphate battery
Hide thumbs Also See for Phantom-S:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Product Manual
Lithium-Ion Phosphate Battery
Phantom-S Product Manual
Information Version: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phantom-S and is the answer not in the manual?

Questions and answers

Related Manuals for Pylontech Phantom-S

Summary of Contents for Pylontech Phantom-S

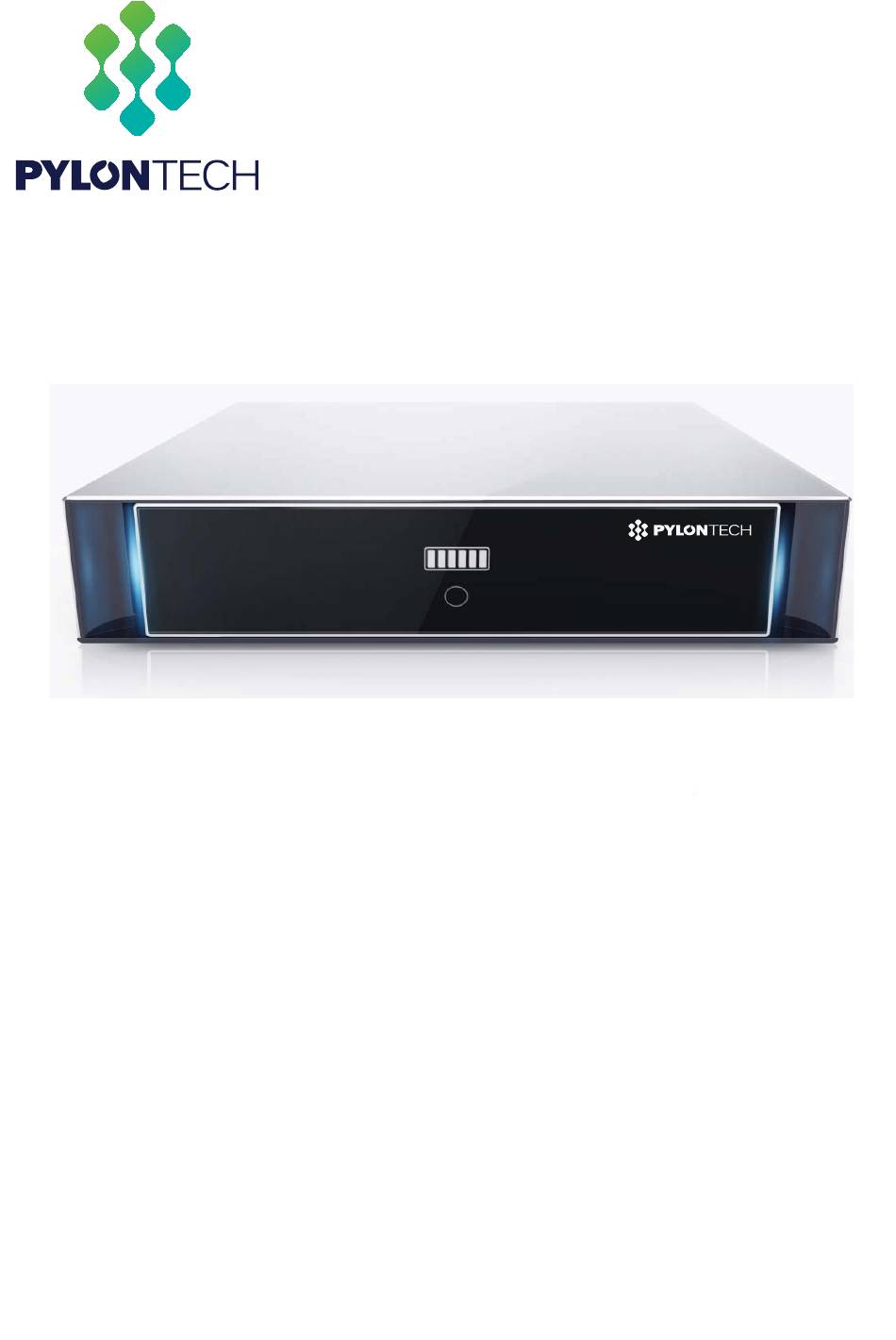

  • Page 1 Lithium-Ion Phosphate Battery Phantom-S Product Manual Information Version: 1.0...

  • Page 2: Table Of Contents

    No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China This manual introduces Phantom-S from Pylontech. Please read this manual before you install the battery and follow the instruction carefully during the installation process. Any confusion, please contact Pylontech immediately for advice and clarification.

  • Page 3: Safety Precautions

    Pudong, Shanghai 201203, China Safety Precautions These installation instructions require specific background electricity knowledge. Pylontech assumes no liability for injury or property damage due to repairs or maintenance attempted by unqualified individuals or a failure to property follow these instructions without Pylontench authorization.
  • Page 4 5) In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited; 6) Please do not open, repair or disassemble the battery except staffs from Pylontech or authorized by Pylontech. We do not undertake any consequences or related responsibility which because of violation of safety operation or violating of design, production and equipment safety standards.

  • Page 5: Introduction

    Phantom-S lithium iron phosphate battery is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems. Phantom-S is especially suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life.

  • Page 6: Specifications

    Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China 1.2 Specifications Basic Parameters Phantom-S Nominal Voltage V Nominal Capacity kWh) 2400 Usable Capacity (kWh) 2200 Dimension mm 445*428*97.5 Weight Kg Discharge Voltage V...

  • Page 7: Equipment Interface Instruction

    Pudong, Shanghai 201203, China 1.3 Equipment Interface Instruction This section details the front and back panel of the interface functions. Phantom-S Product Front Interface Folded Ears Folded Ears: used to be installed in a rack of 19” standard equipment cabinet. They also can be hided when folded.
  • Page 8 Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China LED Status Indicators LED Indicator LED Light Battery Status OFF Mode All OFF Shut Down Breathing Charging. Lamp: bule, ON LEDs indicat Capacity LEDs: the capacity.

  • Page 9: Phantom-S Product Back Interface

    Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Phantom-S Product Back Interface Power Switch Power Switch: BMS standby, no power output RUN LED: to show the Power Switch is ON, and the equipment has electricity.

  • Page 10: Definition Of Rj45 Port Pin

    Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Definition of RJ45 Port Pin RS485 Pin CAN Pin RS485B RS485A CANH CANL RS485A RS485B Definition of RJ11 Port Pin RS232 Pin Definition Description Land Veneer Reception, Computer sends...

  • Page 11: Safe Handling Of Lithium Batteries Guide

    Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China 2. Safe handling of lithium batteries Guide 2.1 Schematic Diagram of Solution Inverter PV ARRAY Public Grid Local Load Battery Module 2.2 Explanation of Symbols 11 / 22 17PISV0704...

  • Page 12: Tools

    Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China 2.3 Tools The following tools are required to install the battery pack Wire cutter Crimping modular Plier Screw driver NOTE Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape.

  • Page 13: Installation

    Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China 3. Installation 3.1 Package Items Unpacking and check the Packing List 1) For battery module package: Two power cables and one communication cable for each battery package: Grounding cable and screws: 2) For battery system connects to inverter: Two long power cables (current capacity 120A) and one communication cable for each energy...

  • Page 14: Installation Location

    Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China 3.2 Installation Location Make sure that the installation location meets the following conditions: The area is completely water proof. The floor is flat and level. There are no flammable or explosive materials.
  • Page 15 Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Put the battery into the cabinet; Drive the 4 pcs screws; Connect the cables between battery modules Connect the cables to inverter B.
  • Page 16 Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China (2) The one with emptyLink Port 0 is the Master Battery Module, others are slaves: (3) Touch the start button of master battery to power on, all the battery LED light will be on one by one from the Master battery: If all the battery LED lights on, and then off, which means the battery system is good and working.
  • Page 17 Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China C. Installation with bracket: 17 / 22 17PISV0704...
  • Page 18 Pylon Technologies Co., Ltd. No. 73, Lane 887, Zu Chongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Aim at the 4 pare of Location Pin and Location Hole, stack the batteries together. And hasp the 4 agraffes together. 18 / 22 17PISV0704...
  • Page 19 Maximum 4 batteries can be athwart stacked One or two batteries can be sidelong stacked Cables connection and batteries system start are same as cabinet installation. NOTE After installation, do not forget to register online for full warranty: www.pylontech.com.cn/service/support 19 / 22 17PISV0704...

  • Page 20: Trouble Shooting Steps

    If the battery external switch is ON, the RUN light is flashing, and the external power supply voltage is 48V or more, the battery still unable to turn on, please contact Pylontech. 2) The battery can be turned on, but red light is lighting, and cannot charge or discharge. If the...

  • Page 21: Emergency Situations

    Damaged batteries are dangerous and must be handled with the utmost care. They are not fit for use and may pose a danger to people or property. If the battery pack seems to be damaged, pack it in its original container, and then return it to Pylontech or an authorized dealer. NOTE Damaged batteries may leak electrolyte or produce flammable gas.
  • Page 22 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China T+86-21-51317697 | +86-21-51317698 service@pylontech.com.cn www.pylontech.com.cn...
