1.1

Introduction

Advantech's PPC-3100/3120-RE9A is an all-in-one lightweight panel PC equipped
with a 10.4"/12.1" TFT LCD. Powered by an Intel® Atom™ E3940 processor, PPC-
3100/3120-RE9A provides excellent performance, memory, graphics, and peripheral
I/O support in a compact, fanless, embedded system. Built for high durability, PPC-
3100/3120-RE9A features a flat touchscreen with IP65 ingress protection and die-
cast aluminum alloy enclosure. It's ideal for easy and simple integration into various
applications.
1.2

Key Features

 Robust IP65-rated true-flat color TFT LCD
 Ultra-thin fanless design with aluminum alloy front bezel
 Intel® Atom™ E3940 processor
 1 x SODIMM DDR3L 1866 MHz (max. 8 GB)
 1 x Full-size mini PCIe card slot
 4 x USB 3.0 ports
 Supports SATA 6 Gb/s interface for 2.5" SATA storage
 Optional mini PCIe 802.11b/g/n wireless module
1.3

Front Panel

The PPC-3100/3120-RE9A front panel is a true-flat color TFT LCD with resistive
touch control and an IP65 rating for resistance to dust and water (Figure 1.1).
Note! Figure 1.1 shows the PPC-3100-RE9A model. The PPC-3100/3120-
XE9X model features the same design.
PPC-3100/3120 User Manual

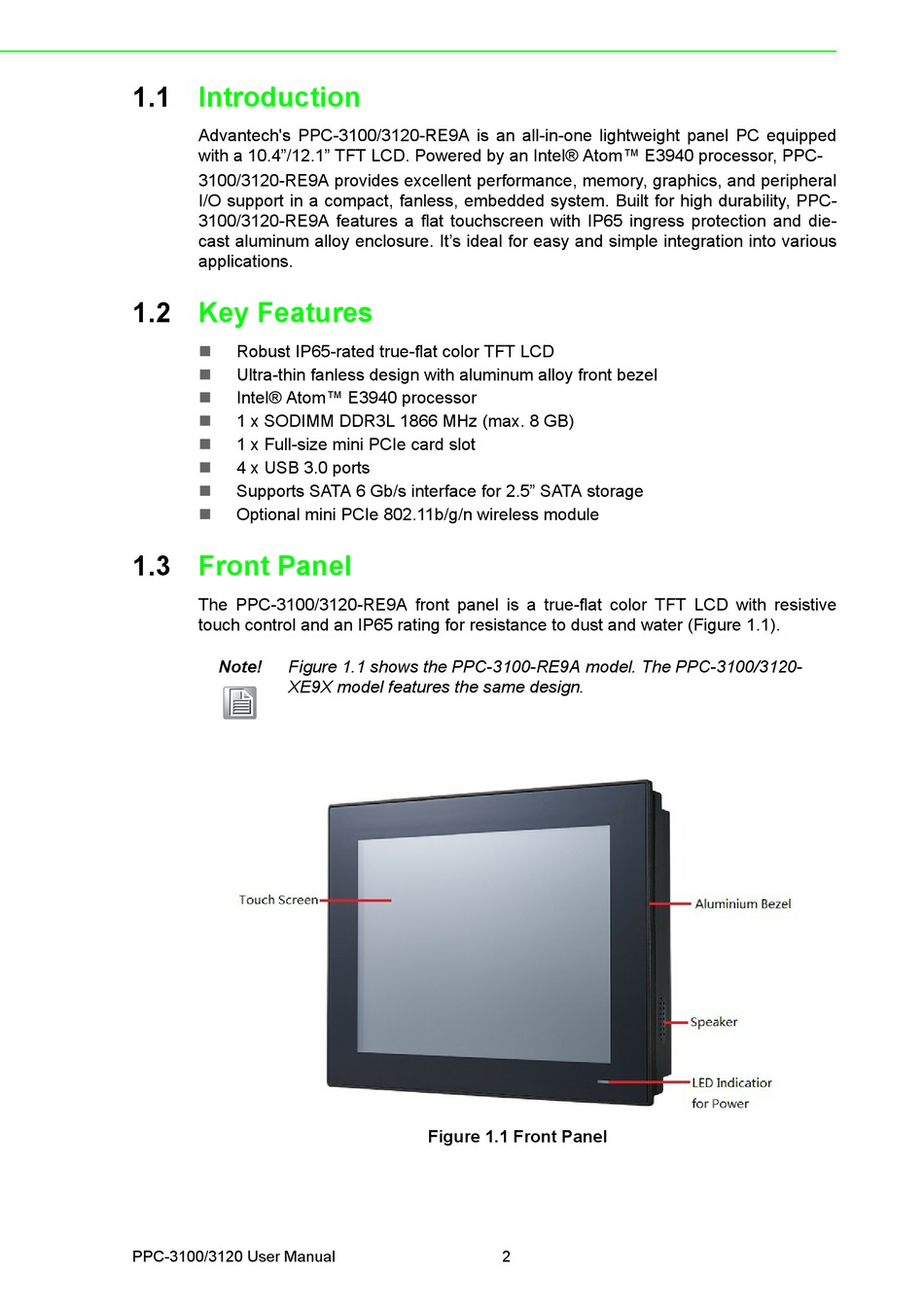

Figure 1.1 Front Panel
