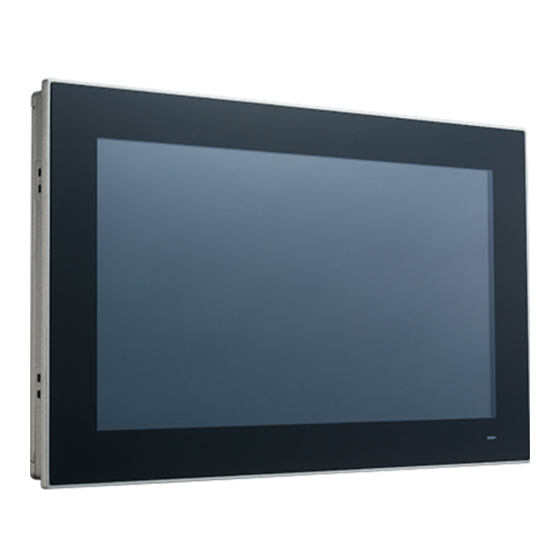

Intel core i processor based panel pc with 15.6"/18.5"/21.5"/23.8" color tft lcd display
Hide thumbs Also See for PPC-3151SW:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
PPC-3151SW/3181SW/
3211SW/324W-P7
Intel® Core™ i processor based
Panel PC with 15.6"/18.5"/21.5"/23.8"
Color TFT LCD Display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-3151SW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech PPC-3151SW

Summary of Contents for Advantech PPC-3151SW

  • Page 1 User Manual PPC-3151SW/3181SW/ 3211SW/324W-P7 Intel® Core™ i processor based Panel PC with 15.6"/18.5"/21.5"/23.8" Color TFT LCD Display...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 (ESD) or electromagnetic interference (EMI) leakage, we strongly recommend using CE-compliant industrial enclosure products. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information to hand before calling: –...
  • Page 4 In compliance with IEC 704-1:1982 specifications, the sound pressure level at the operator’s position does not exceed 70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 5 Par exemple, “Si la batterie est remplacée par un modèle inapproprié, il y a un risque d’explosion. Remplacer les produits identiques ou équiva- lents recommandés par le fabricant. Traitement des piles usagées selon les instructions du fabricant.” Note! Notes provide additional optional information. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 6 Revision Date Version Description/Change July 2018 Initial Jun 2019 add PPC-3151SW July 2020 add PPC-324W-P7 PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 7: Table Of Contents

    Figure 1.3 Panel PC underside............ 3 Dimensions ....................4 Figure 1.4 PPC-3211SW dimensions .......... 4 Figure 1.5 PPC-3181SW dimensions .......... 4 Figure 1.6 PPC-3151SW dimensions .......... 4 Figure 1.7 PPC-324W-P7 dimensions......... 5 Specifications .................... 5 Ordering Information ................. 6 Chapter System Installation and Setup ...9...
  • Page 8 Boot Options ................44 4.2.8 TPM Setup.................. 45 Appendix A BSMI RoHS ........47 BSMI RoHS..................... 48 Appendix B China RoHS ........49 China RoHS .................... 50 Appendix C Watchdog Program Example ... 51 Watchdog Program Example ..............52 PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 9: Chapter 1 General Information

    Chapter General Information This chapter provides general information regarding 3151SW/ 3181SW/3211SW/324W-P7.  Introduction  Specifications  Dimensions...

  • Page 10: Introduction

    Introduction Advantech's 3151SW/3181SW/3211SW/324W-P7 is an all-in-one light panel PC with a wide format 15.6"/18.5"/21.5"/23.8" full HD LCD. Powered by an Intel® 6th/7th Gen Core™ i processor, 3151SW/3181SW/3211SW/324W-P7 provides good perfor- mance and optimal memory, graphics and peripheral I/O support in a compact, fan- less, embedded system.

  • Page 11: Rear Panel

    Rear Panel The PPC-3151SW/3181SW/324W-P7 rear panel features four VESA mount (100 x 100 mm) holes located below figure 1.2. VESA screw: M4*12L Figure 1.2 rear panel Panel Underside The system I/O located at the panel underside (Figures 1.3) are listed below.

  • Page 12: Dimensions

    Dimensions 558.40 Figure 1.4 PPC-3211SW dimensions 477.7 Figure 1.5 PPC-3181SW dimensions Figure 1.6 PPC-3151SW dimensions PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 13: Specifications

    255 timer levels, set up by software Speaker 2 x 1W Microsoft® Win- Microsoft® Windows 7 / Windows 8.1 / Windows 10 / WES 7/ dows 10(64-bit), OS Support Linux Windows 10 IOT LTSC, Linux Power Supply 12 - 24 Vdc PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 14: Ordering Information

    8.6 kg (18.95 lb) Note! The test conditions for the power consumption values provided above were as follows: Memory: 16G DDR4 2400 HDD: 64G SSD OS: PPC-3151SW/3181SW/3211SW Windows 7(64bit); PPC-324W-P7 Windows 10(64bit) Software: Burn In Test 8.1 Ordering Information Part Number Description...
  • Page 15 PPC-ARM-A03 Arm mount VESA standard PPC-174T-WL-MTE Wall mount kit PPC-Stand-A1E Stand kit PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 16 PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 17: Chapter 2 System Installation And Setup

    Chapter System Installation and Setup  Quick System Tour  Memory Card Installation  HDD Installation  mSATA Installation  Wireless LAN Card Installation  TPM installation  Mounting the System...

  • Page 18: Quick System Tour

    Figure 2.1. Since PPC-3211SW/3181SW/3151SW/324W-P7 are series models, the following photos in the manual are PPC-3211SW examples. Figure 2.1 Panel PC front view 1. Power status indicator, power-up:blue, stand by: orange Figure 2.2 Panel PC rear view 1. Speaker 2. GND screw PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 19: Installation Procedures

    Configure the system 2.2.1 Memory Card Installation Remove four screws shown in red circle, then remove the six screws shown in the green circle and finally remove the rear cover. Figure 2.4 Retention screws on rear cover PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 20 Assurez-vous que le tampon thermique (fourni dans la boîte d'acces- soires) est placé sur la carte mémoire, comme illustré à la Figure 2.6. Note! The second disassembly and assembly needs to replace the CPU ther- mal pad. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 21: Hdd Installation

    Figure 2.7 Retention screws on HDD bracket Figure 2.8 HDD module bracket Connect the SATA cable provided in the accessory box to the SATA HDD mod- ule (Figure 2.9). Figure 2.9 SATA cable connected to SATA HDD PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 22: Msata Installation

    Figure 2.11 SATA HDD connected to the mainboard 2.2.3 mSATA Installation Insert the mSATA card into the socket. Secure the card in place using two screws provided in the accessory box (Figure 2.12). Figure 2.12 mSATA module installation PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 23: Wireless Lan Card Installation

    If a half-size PCIe is used, then use the hexagonal screws provided in the accessory box. Screws in red circles should be tightened, See Fig 2.13 Retrieve the hexagonal screw provided in the accessory box. Figure 2.14 Hexagonal screw location PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 24 Figure 2.15 Full-size mini PCIe LAN antenna cables Remove the two plugs located at the top of the rear cover. Figure 2.16 Removing plugs for the antennae Install the external antennas. Figure 2.17 Location of external antennae PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 25: Installing Tpm

    2. Insert the cable into the TPM interface. Note that the white point corresponds to the first pin of the TPM board. Add the TPM cable which needs cross under the SATA cable. Figure 2.19 Assemble TPM Cable PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 26: Mounting The System

    Drill two pilot holes at the marked locations on the wall. Align the wall mount plate screw holes with the pilot holes. Secure the mount plate to the wall by inserting screws into the two pilot holes and tightening them. Figure 2.20 Wall mount plate PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 27 To mount the panel PC on the wall, align the wall mount bracket attached to the panel PC with the wall mount plate on the wall and slide the panel PC down- wards to hang the bracket on the mount plate. Figure 2.22 Mounting the panel PC on a wall PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 28: Panel Mounting

    PPC-3211SW: 550.3 x 341.8 mm (21.66 x 13.45 in) PPC-3181SW: 479.3 x 300.3 mm (18.87 x 11.82 in) PPC-3151SW: 413 x 262 mm (16.25 x 10.31 in) PPC-324W-P7: 586.5 x 364.8 mm (23.09 x 14.36 in) Install the panel PC in the cabinet and retrieve hook brackets from the acces- sory box.
  • Page 29 Figure 2.25 and hang the panel PC. Figure 2.25 Hook brackets location Tighten the screws to affix the panel PC in place (Figure 2.26). Figure 2.26 Fasten the hook bracket Figure 2.27 Panel mount rear view (Take PPC-3151SW drawing as example) PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 30: Arm Mounting

    Warning! Ensure that the thread depth of the screws on the rear panel does not exceed 4 mm. Ensure that the thread depth of the screws on the rear panel does not exceed 4 mm. 2.4.4 Stand Mounting Before stand mounting, check that the product was shipped with the following items: PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 31 100 x 100 mm VESA mount according to their requirements. Figure 2.29 VESA mount screw holes Use the four M4 x 8L screws to secure the base plate to the mount stand. Figure 2.30 Securing the VESA mount base PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 32 Use four M4 x 6L screws to secure the mount stand to the VESA mount bracket. Figure 2.31 Securing the VESA mount bracket Use one M4 x 5L screw to secure the stand mount hinge cover. Figure 2.32 Securing the stand mount hinge cover PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 33 Figure 2.33 Completed stand mount PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 34 PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 35: Jumper Settings

    Chapter Jumper Settings  Motherboard Layout  Jumpers and Connectors  External COM Ports and Pin Definitions...

  • Page 36: Motherboard Layout

    A diagram of the motherboard layout showing the locations of the internal peripheral connectors is provided below (Figure 3.1). The internal peripheral connectors are accessible when the motherboard is outside of the chassis. Figure 3.1 Motherboard layout diagram PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 37: Internal Jumpers And Connectors

    Wafer 2x5P 2.0mm CN45 Front LED Conn Wafer 4P 1.25mm AMP1 Amplifier Speak Wafer 4P 2.0mm Panel ID Select Switch 2x4P 3.2.1 Touch Power Select Icon Resistance Touch Power Select open Touch Disable closed Touch Enable Default* PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 38: Lvds Pwm Power Select Jumper

    LVDS PWM Power Select Jumper (1-2) (2-3) 3.3V Default* 3.2.3 LVDS Enable Power Select Jumper Icon LVDS Enable Power Select Jumper (1-2) (2-3) 3.3V Default* 3.2.4 RTC Select Icon RTC Select (1-2) Normal Default* (2-3) Clear CMOS PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 39: Com1 Pin 9 Power Select

    (2-3) Default* 3.2.7 SW1 Panel ID Select Table 3.1: SW1 Panel ID Select Icon Panel ID Selection Model Number 1110 1920 x 1080 (48-bit) PPC-3211SW 0111 1366 x 768 (24-bit) PPC-3181SW 1100 1920 x 1080 (48-bit) PPC-3151SW PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 40: External Com Ports And Pin Definitions

    COM1 Pin 9 is set as “RI” by default. This setting can be changed to 5 V or 12 V out- put using a jumper. COM2: RS-232/422/485 Note! COM2 does not support ring function. COM1 COM2 RS-232 RS-232 RS-422 RS-485 DATA- DATA+ Ring or 5V/12V output RING PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 41: Software Setup

    Chapter Software Setup  Driver Installation  BIOS Setup Program...

  • Page 42: Driver Installation

    Driver Installation Before installing software on the panel PC, install the corresponding drivers to ensure full functionality. All drivers can be downloaded from the Advantech website http://www.advantech.com BIOS Setup Program 4.2.1 Entering BIOS Setup After powering on the system, press the <Del> button to access the BIOS Setup screen.

  • Page 43: Adjustment Of Lcd Brightness

    4.2.2 Adjustment of LCD Brightness Select System Agent (SA) Configuration option in the Chipset tab. Select Graphics Configuration option in the Chipset tab. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 44 Select LCD Control option to choose between six brightness levels. Select Brightness Mode Control and select SIO. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 45 Select Brightness Control to choose between five brightness levels. Brightness is controlled through Power Options in Windows OS. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 46: Com2 Mode Selection (Rs232/Rs422/Rs485)

    4.2.3 COM2 Mode Selection (RS232/RS422/RS485) Select NCT5523D Super IO Configuration in the Advanced tab. Select Serial Port 2 Configuration option. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 47 Select Serial Port 2 Mode option to set the COM2 operation mode as RS232, RS422, or RS485. If COM2 mode is set as RS485, the RS485 Auto Flow control option can be Enabled or Disabled. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 48: Bios At And Atx Setup

    If COM2 mode is set as RS485, the Serial Port2 Terminal option can be Enabled or Disabled. 4.2.4 BIOS AT and ATX Setup Select PCH-IO Configuration option in the Chipset tab. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 49: Wake-On-Lan

    Select Restore AC Power Loss and set the Power On option to AT and the Power Off option to ATX. 4.2.5 Wake-on-LAN Select PCH-IO Configuration option in the Chipset tab. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 50 Set the Wake On By PCIE Wake(I211/Ring) option to Enabled for LAN2 & COM Ring. 3. Set the Wake on By LAN1(219LM) option to Enabled. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 51: Sata Mode Selection

    4.2.6 SATA Mode Selection Select SATA Configuration option in the Advanced tab. Select SATA Mode Selection to adjust the settings. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 52: Boot Options

    4.2.7 Boot Options Select CSM Configuration option in the Advanced tab. Select Boot Option Filter to adjust the settings. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 53: Tpm Setup

    4.2.8 TPM Setup 1. Select Trusted Computing option in the Advanced tab. 2. Set the Security Device Support option to Enabled. 3. Restart after saving. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 54 PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 55: Bsmi Rohs

    Appendix BSMI RoHS...

  • Page 56: Bsmi Rohs

    Note 2. “? ”indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考 3.“ － ” 係指該項限用物質為排除項目。 Note 3. “-” indicates that the restricted substance corresponds to the exemption. PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...

  • Page 57: Appendix B China Rohs

    Appendix China RoHS...

  • Page 58: China Rohs

    China RoHS Thank you for choosing an Advantech product. In compliance with the China RoHS standard SJ/T11364, “Marking for the Restriction of the Use of Hazardous Sub- stances in Electrical and Electronic Products”, all hazardous substances present in the product are disclosed below.

  • Page 59: Appendix C Watchdog Program Example

    Appendix Watchdog Program Example...

  • Page 60: Watchdog Program Example

    OUT DX, AL MOV DX, 2FH MOV AL, 00H; bit 0: 0 = pulse mode, 1 = level mode; bit 3: 0 = second mode, 1 = minute mode OUT DX, AL; set second mode, default value PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 61 OUT DX, AL MOV DX, 2FH MOV AL, 05H OUT DX, AL; set timeout value as 5s; 00 = timeout disabled ;----------------------------------------------- ; Exit the Extended Function Mode ;---------------------------------------------- MOV DX, 2EH MOV AL, AAH OUT DX, AL PPC-3151SW/3181SW/3211SW/324W-P7 User Manual...
  • Page 62 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2020...
