Advantech PPC-310-RJ60A Startup Manual

PPC-310/312/315/321W EHL
10.4''/12.1''/15''/21.5" Fanless Panel PC with
Intel Celeron
®
Startup Manual
Packing List
Before installation, ensure that the following items are
included with the product:
• 1 x Panel PC
• 1 x PPC-310/312/315/321W EHL startup manual
• 1 x Phoenix connector
• 8/10/12 x Mount brackets (8 for PPC-310/312; 10 for
PPC-315, 12 for PPC-321W)
• 8/10/12 x Mount screws (8 for PPC-310/312; 10 for
PPC-315, 12 for PPC-321W)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Software Installation
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
For more information about this product, visit the
Advantech website at
http://www.advantech.com/products/fanless-panel-
pcs/sub_1-2jkjm3
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for the PPC-310/312/315/321W EHL
series, Rev. A0, models.
Part No. 2044031000
Printed in China
J6412 Processor
®
Edition 1
August.2022
PPC-310/312/315/321W EHL Series Startup Manual 1
Appearance
Note: PPC-321W EHL is used as examples in the images
below. The PPC-310/312/315 EHL models share the same
design.

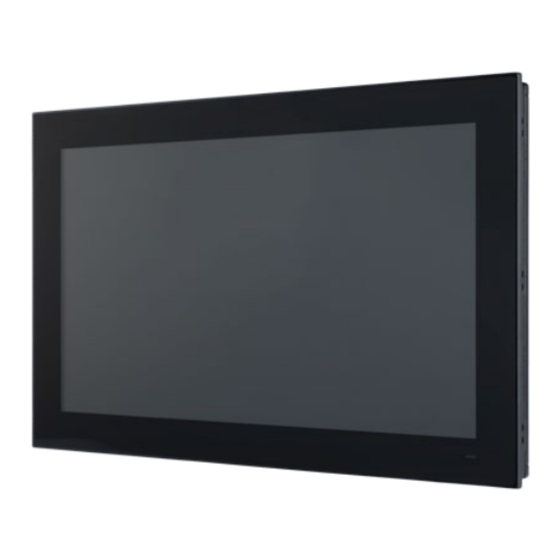

PPC-321W Front View
PPC-321W Rear View
