To avoid damage during transport, you should transport
the unit to the final installation location in its original
packaging (with packaging on the wooden pallet), using
a lifting truck.
Remove packaging and set extra box aside (will be
needed later on!)...

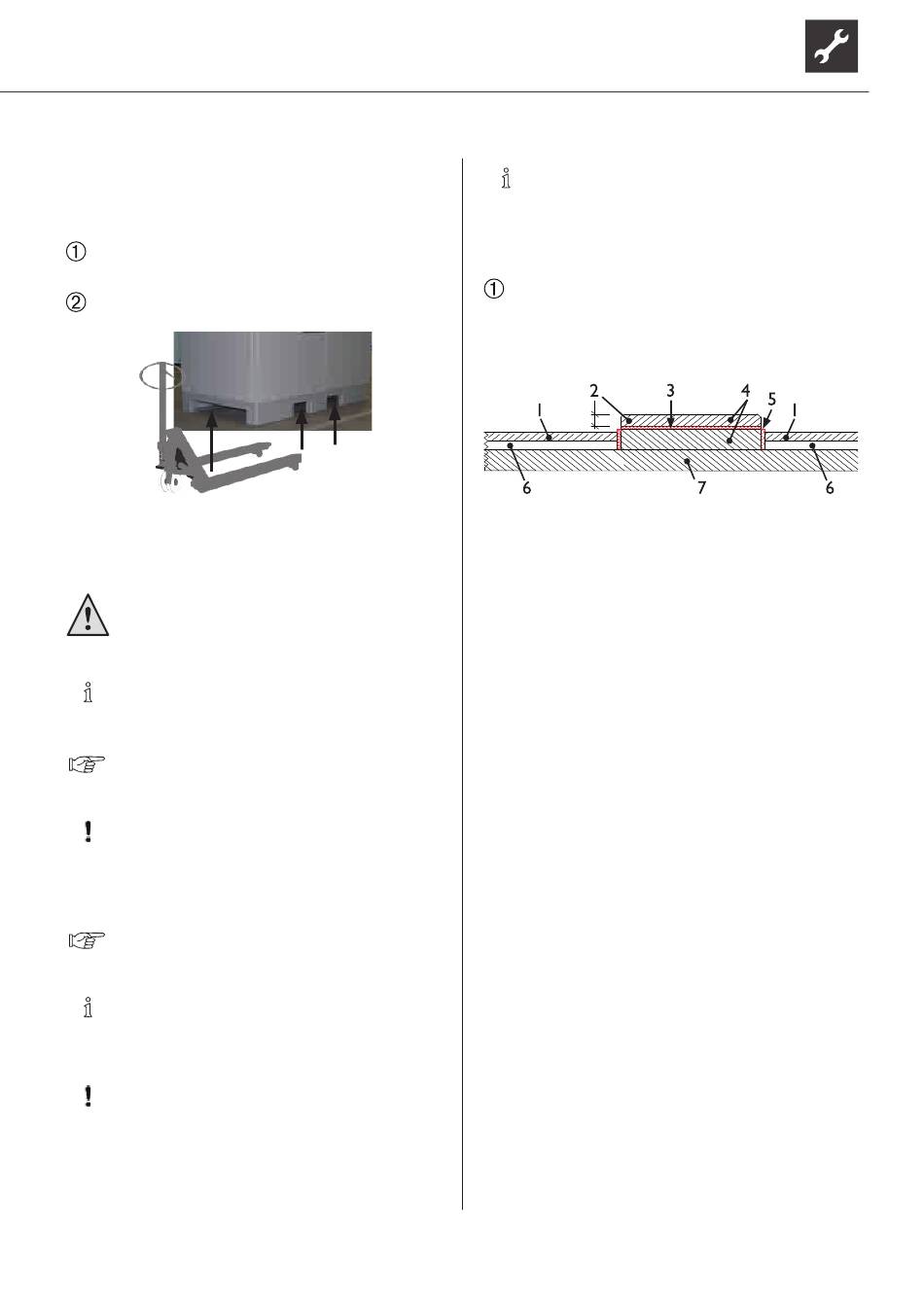

Transport the unit using a lifting truck...

INSTALLATION

CAUTION!
Several people are required to install the
unit.
NOTICE:
Always comply with the dimensional drawings
for the respektive size.
Overview "Dimensional drawings" and "Clear-
ance dimensions".
ATTENTION
The heat pump must be placed on a load-bear-
ing, horizontal base. Ensure that the base is de-
signed for the weight of the heat pump.
Do not use a rigid foam boiler platform!
Overview "Technical data/scope of delivery",
"General unit data" section.
NOTE.
Set up the device so that the control side is ac-
cessible at all times!
ATTENTION
Do not tilt device more than 45° - applies for
every direction!
Subject to change without notice | 83050900dUK – Translation into English of the original German operating manual | ait-deutschland GmbH
NOTE.
The openings for the lifting truck must be closed
with the covering plate supplied!.
Proceed as follows at the installation site:
Place the device on a load-bearing and horizon-
tal base, preferably insulated from structure-borne
sound...
Detail drawing of concrete foundation:
1 Screed
2 Approx. 100 mm according
to weight of heat pump
3 Insulation from structure-
borne sound according to
weight of heat pump
4 Concrete foundation
5 Edge insulation strip
6 Impact sound insulation
7 Concrete cover
