NOTE.
A connection to a computer or a network can
be installed via the left bushing on the bottom
of the control element, thus allowing the heat-
ing and heat pump regulator to be controlled
remotely. One pre-condition is that a screened
network cable (category 6) be installed through
the unit when installing the unit.
Operating manual for the heating and heat pump
regulator, version "Qualified technician", "Web
server" section.
If this network cable is available, insert the net-
work cable's RJ-45 plug into the left bushing of
the control element.
NOTE.
The network cable can be exchanged at any
time. In order to be able to connect it, the
screen must first be removed.
16
Subject to change without notice | 83050900dUK – Translation into English of the original German operating manual | ait-deutschland GmbH
Installation and removal of the
screen
INSTALLING THE SCREEN
NOTE.
The screen is provided at the time of delivery so
that the control element may be inserted in the
upper recesses of the front facade.
If the control element has been inserted in the
lower recesses of the front facade, you must
first remove the screen's temporary cover and
then reinsert it above the logo.

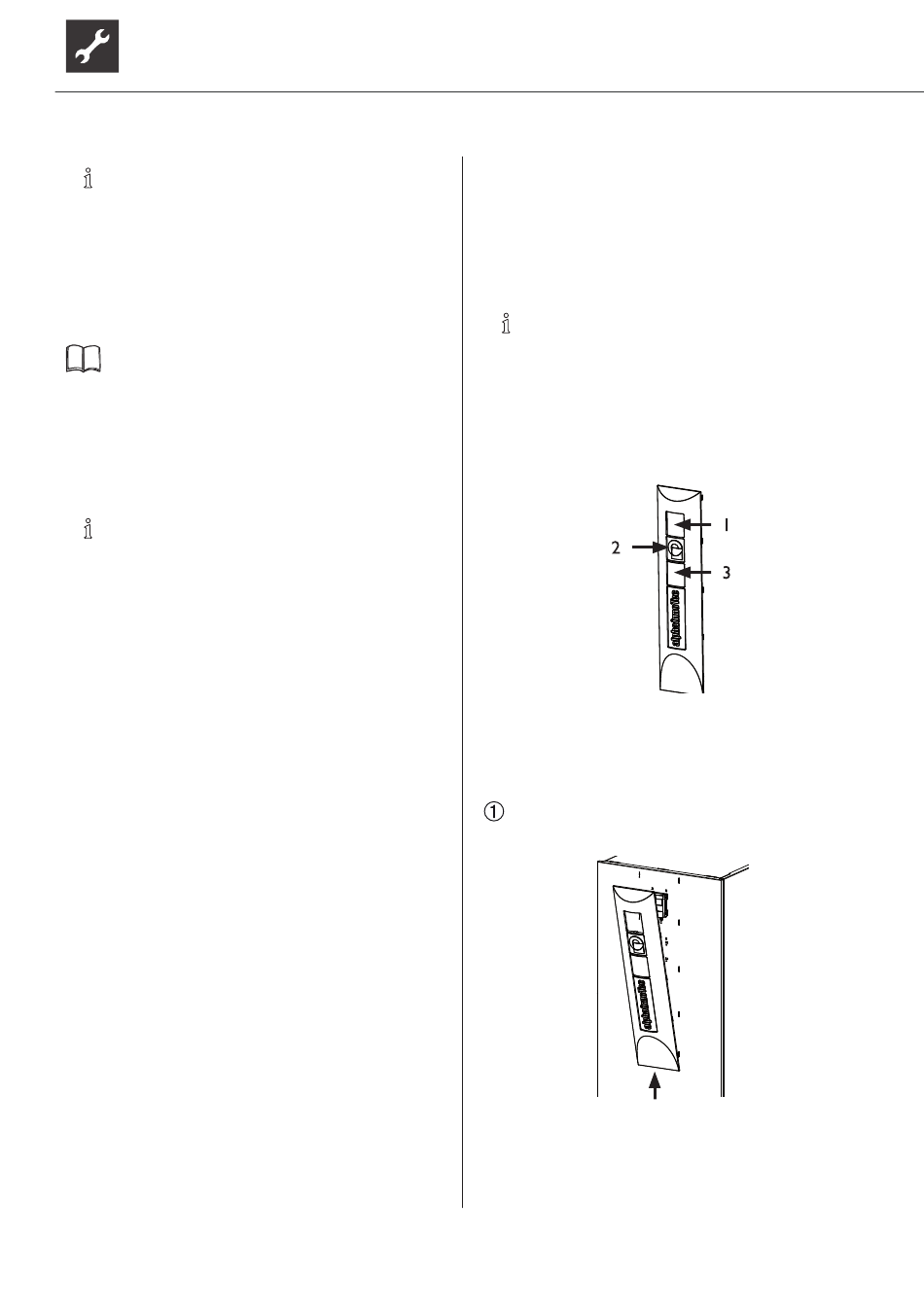

Screen at time of delivery:
1 recess for control element
2 logo
3 temporary cover
First, insert the screen below, in the provided slots
on the front of the facade...
