Front Panel Indicators, Controls, and Operation

Front Panel Indicators and Control Locations (Classic Display)

Queue controls and
indicators for Alarm,
Supervisory, Trouble,
and Monitor
Indicators for AC On,
CPU Fault, and
Ground Fault (GND
FAULT)
16 configurable
bi-coloured zone
indicators and 16
trouble indicators

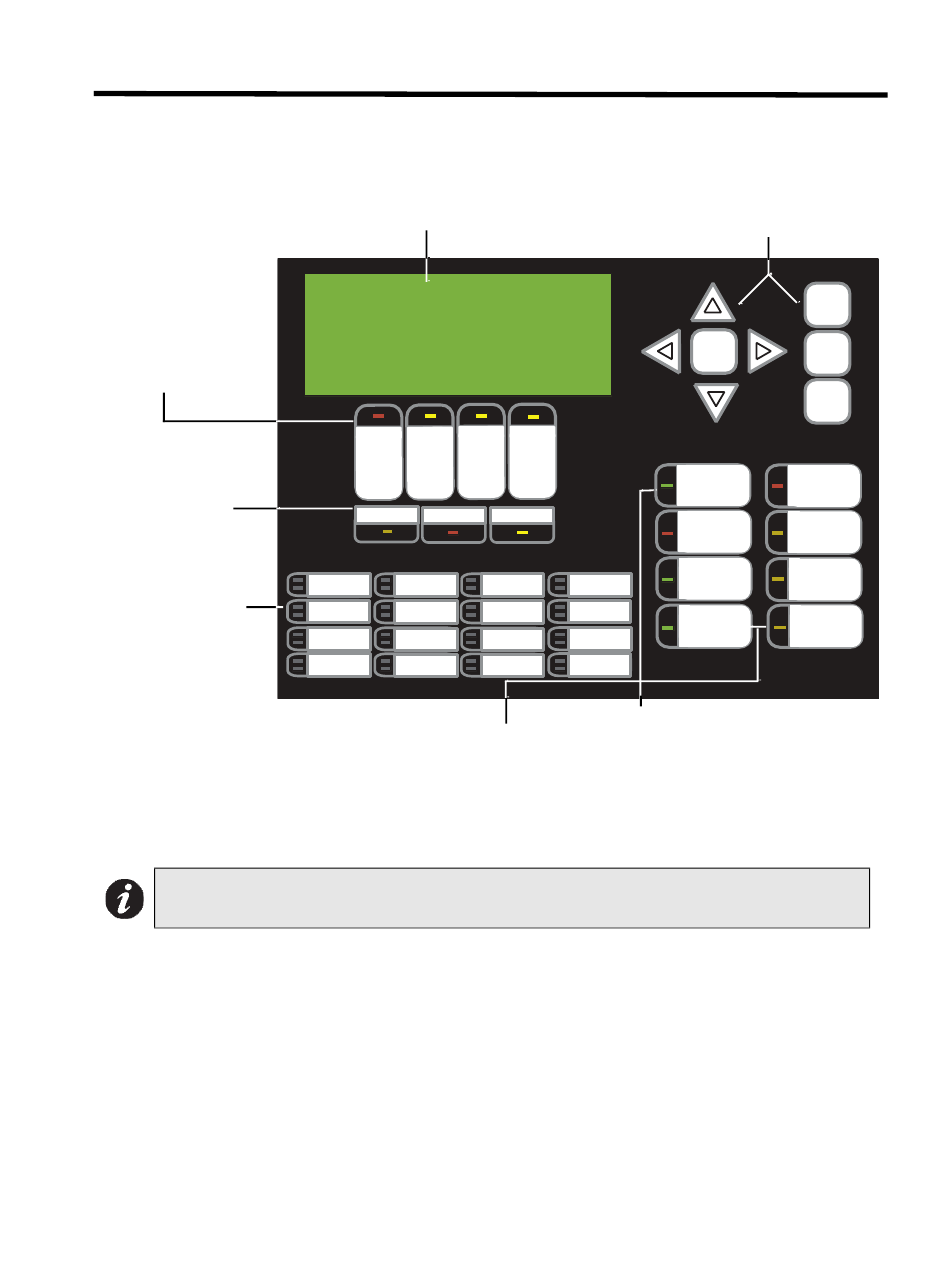

Figure 1 Front Panel Indicators (Classic Display)
Note: The General Alarm LED and pushbutton, and the Acknowledge LED and
LED indicators are amber (trouble or supervisory), red (alarm), or green (AC On), and may
illuminate continuously (steady) or at one of two flash rates:
• Fast flash: 120 flashes per minute, 50% duty cycle
• Trouble flash: 20 flashes per minute, 50% duty cycle
Paper Labels for Buttons and Indicators
Buttons and indicators are supplied with paper labels. These labels slide into the plastic label
templates on the face of the panel. Paper labels allow for easy English / French selection and
custom-printed zone information.
LCD Display - four lines,
20 characters per line
Mircom FX-2000
Fire Alarm Control Panel
Normal Condition
March 4, 2014
TROUBLE
ALARM SUPV.
QUEUE
QUEUE QUEUE
A.C. ON
CPU FAULT
LED 0 LED 4
LED 5
LED 1
LED 2
LED 6
LED 3 LED 7
Two configurable
switches & amber LEDs
pushbutton, are active only on a system configured for two stages.
Cursor buttons, ENTER, MENU,
CANCEL, INFO
MONITOR
QUEUE
GND FAULT
LED 8 LED 12
LED 13
LED 9
LED 10 LED 14
LED 11 LED 15
Controls & Indicators for Signal
Silence, General, Alarm,
Acknowledge, Fire Drill, System
MENU
ENTER
CANCEL
INFO
SIGNAL
FIRE
SILENCE
DRILL
GENERAL SYSTEM
ALARM RESET
LAMP
ACKNOW-
TEST
LEDGE
CONFIGURABLE CONFIGURABLE
SWITCH/LED 3
SWITCH/LED 7
Reset, Lamp Test
