Switch Numbering (New DS Display)

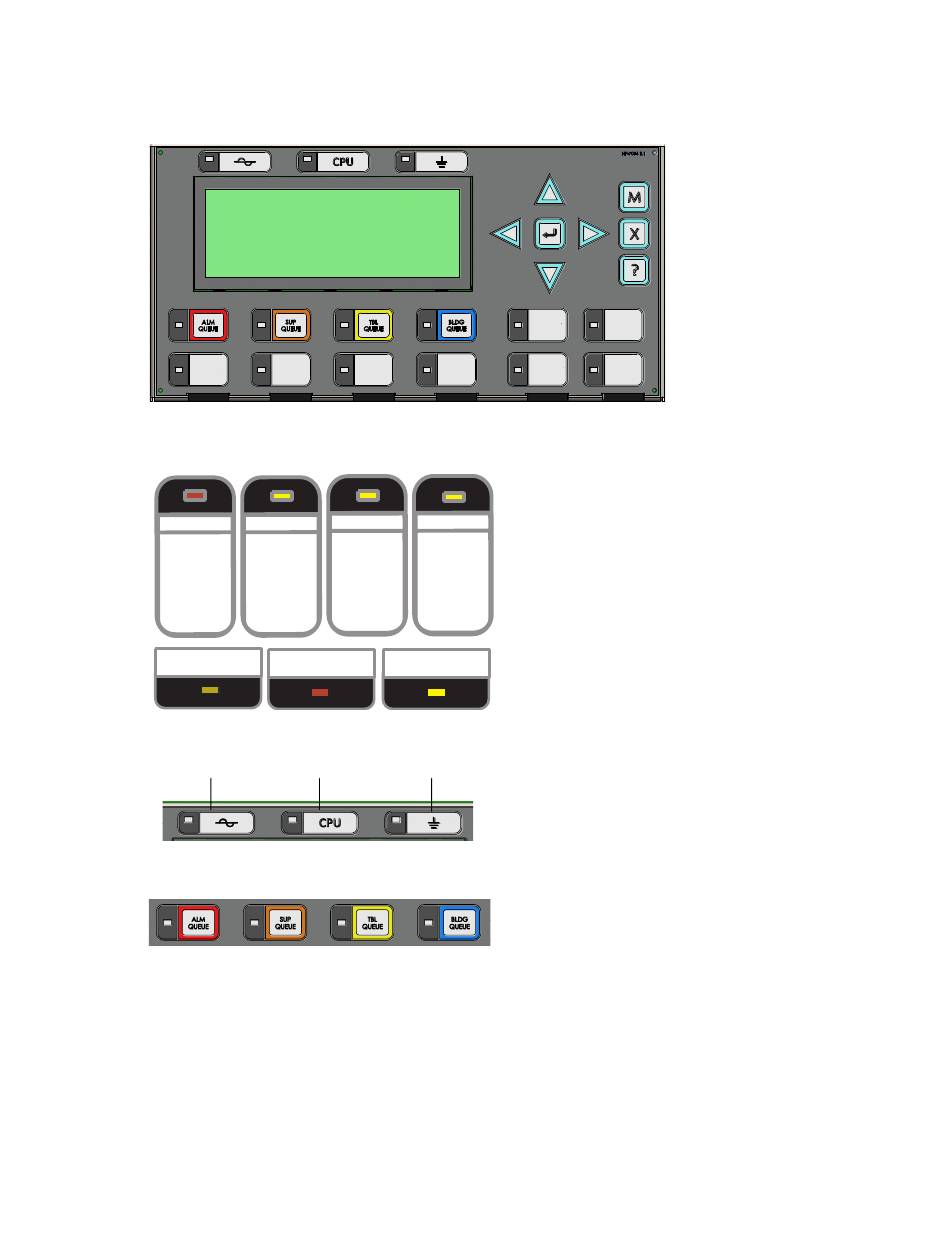

Figure 3 shows the switches as the Configurator numbers them. This display is called 4 x 20
Default in the Configurator.
MCG Network
Fire Control System
- System Normal -
Mar 04, 2014 12:00:00
0
Figure 3 Switch Numbering for New DS Display

Common Indicators

SUPV.
ALARM
QUEUE
QUEUE
A.C. ON
Figure 4 Classic Display: Common Indicators
AC ON CPU FAULT
Figure 5 New DS Display: AC On, CPU Fault, Ground Fault
Figure 6 New DS Display: Alarm Queue, Supervisory Queue, Trouble Queue, Building
Queue
Buzzer
The buzzer is activated by any of the following:
• Fire alarm: steady
• Supervisory alarm: fast flash rate
• Trouble: trouble flash rate
• Monitor/Building: Configurable to sound at trouble flash rate
If the buzzer turns on in response to a non-latching trouble or supervisory, it will turn off if the
condition causing it goes away and there is no other reason for it to be on.
1 2 4
MONITOR
TROUBLE
QUEUE
QUEUE
CPU FAULT
GND FAULT
GROUND FAULT
6 7
5
3
