4. Click the Details link. The Gridstream RF Endpoint Information Screen will open for the
Extender, shown in Figure 4 - 8
The following information is displayed:
•
•
•
•
•
The following tabs are available:
•
•
•
•
General Settings Tab
Installation and User Guide

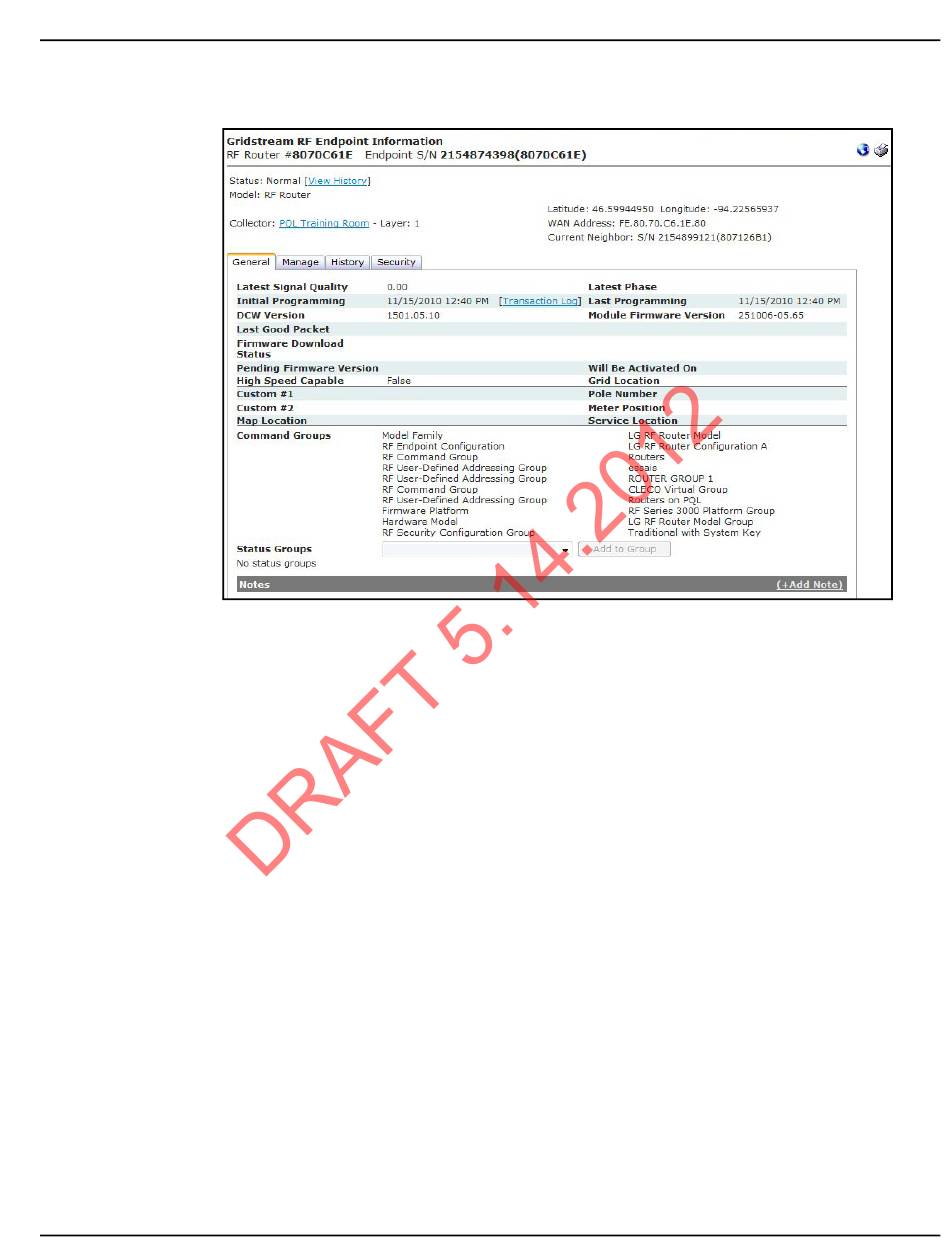

Figure 4 - 8. Gridstream RF Endpoint Information
Status. Displays the current status of the Extender. Select the View History link to see the
Status Changes window.
Model. Displays the model type.
Collector. Displays the name of the collector the Extender has most recently used for
communication. Select the Collector link to view the Collector screen.
Latitude/Longitude. Displays the latitude and longitude of the endpoint.
WAN Address. Displays the mobile WAN address assigned to the Extender.
General. The General Settings screen displays the endpoint's current settings.
Manage. The Manage screen allows the user to issue commands to the current Extender, as
well as, view commands previously issued.
History. The History screen displays history of commands, events and errors logged by the
Extender.
Security. The Security tab will be displayed to only the users with security permissions.
Chapter 4 - Extender Configuration in Command Center
