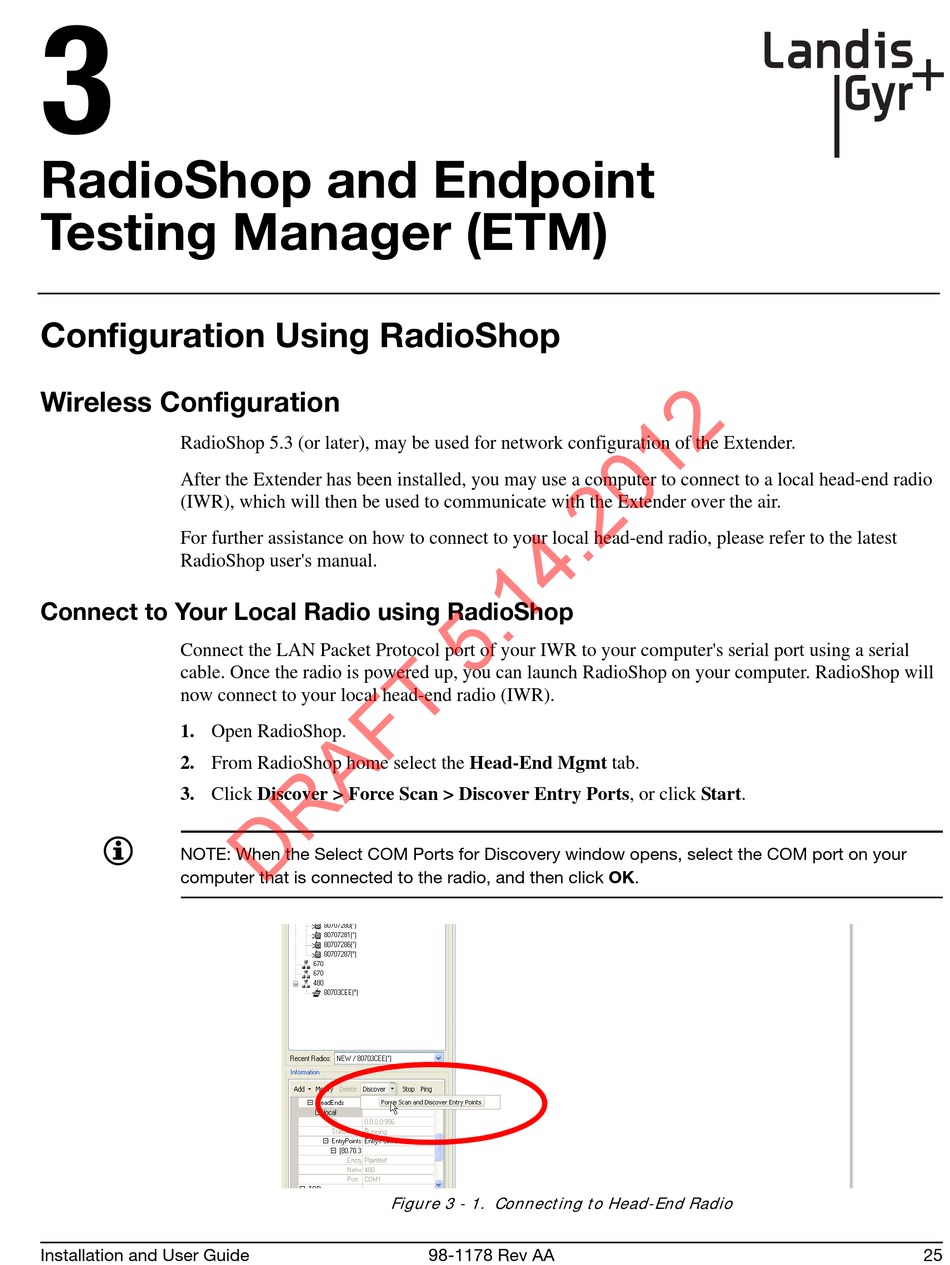

3
RadioShop and Endpoint
Testing Manager (ETM)

Configuration Using RadioShop

Wireless Configuration

RadioShop 5.3 (or later), may be used for network configuration of the Extender.
After the Extender has been installed, you may use a computer to connect to a local head-end radio
(IWR), which will then be used to communicate with the Extender over the air.
For further assistance on how to connect to your local head-end radio, please refer to the latest
RadioShop user's manual.

Connect to Your Local Radio using RadioShop

Connect the LAN Packet Protocol port of your IWR to your computer's serial port using a serial
cable. Once the radio is powered up, you can launch RadioShop on your computer. RadioShop will
now connect to your local head-end radio (IWR).
1. Open RadioShop.
2. From RadioShop home select the Head-End Mgmt tab.
3. Click Discover > Force Scan > Discover Entry Ports, or click Start.

NOTE: When the Select COM Ports for Discovery window opens, select the COM port on your
computer that is connected to the radio, and then click OK.
Installation and User Guide
Figure 3 - 1. Connecting to Head-End Radio
98-1178 Rev AA 25
