Chapter 2 - Installation

Attach Extender to Standard Mounting Bracket

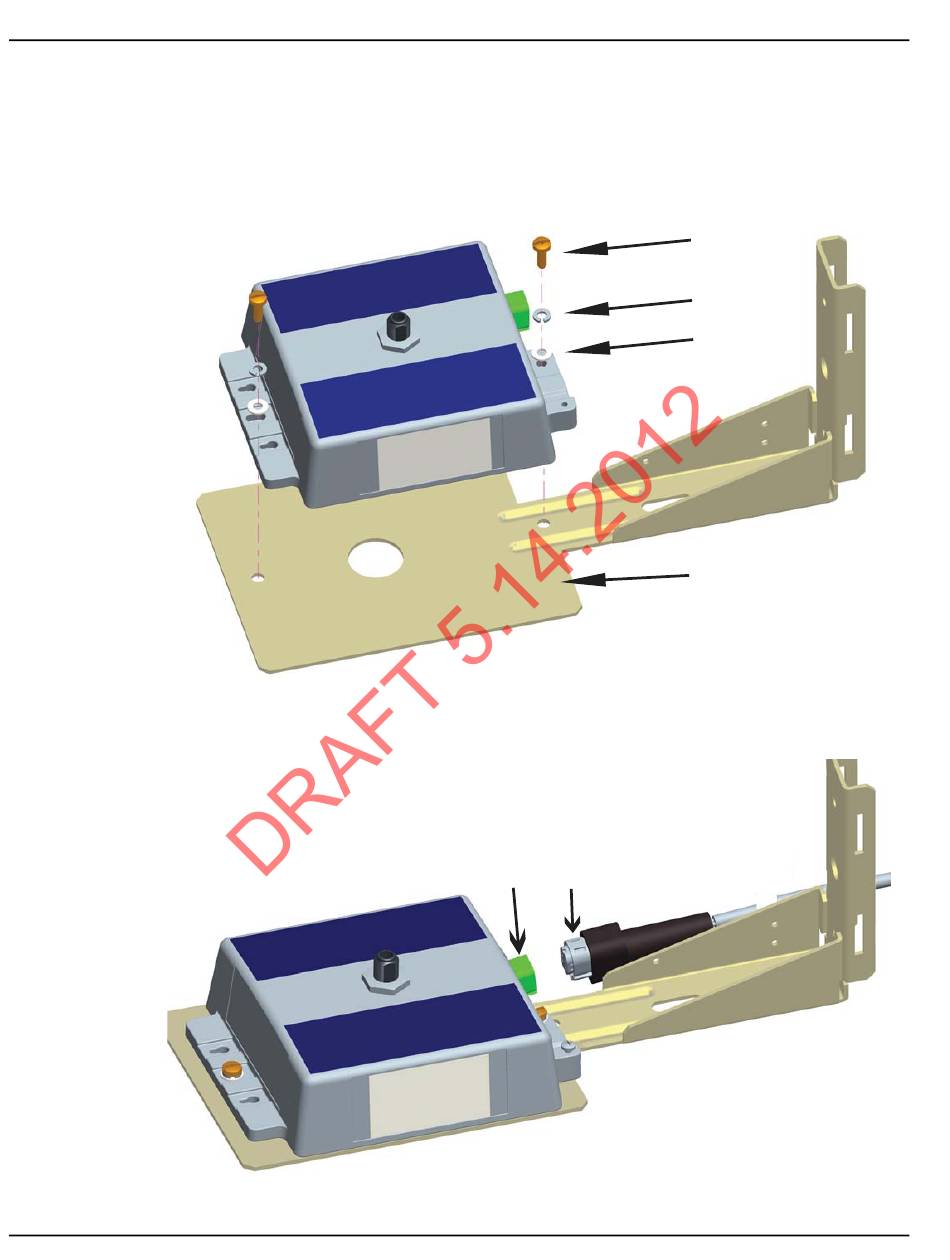

1. Install the Extender to the mounting bracket in the orientation as shown in Figure 2 - 1:
•
2. Insert the plug of the AC cable (E) into the AC socket (F).
12
Insert screw (A), with a spring washer (B) and a flat washer (C) in the center hole of each
side of the Extender and align to the pem nuts in the mounting bracket (D).
Figure 2 - 1. Attach Extender to the Mounting Bracket
F E
Figure 2 - 2. Attach AC Cable
98-1178 Rev AA
Landis+Gyr
A
B
C
D
