Landis+Gyr
•
•
•

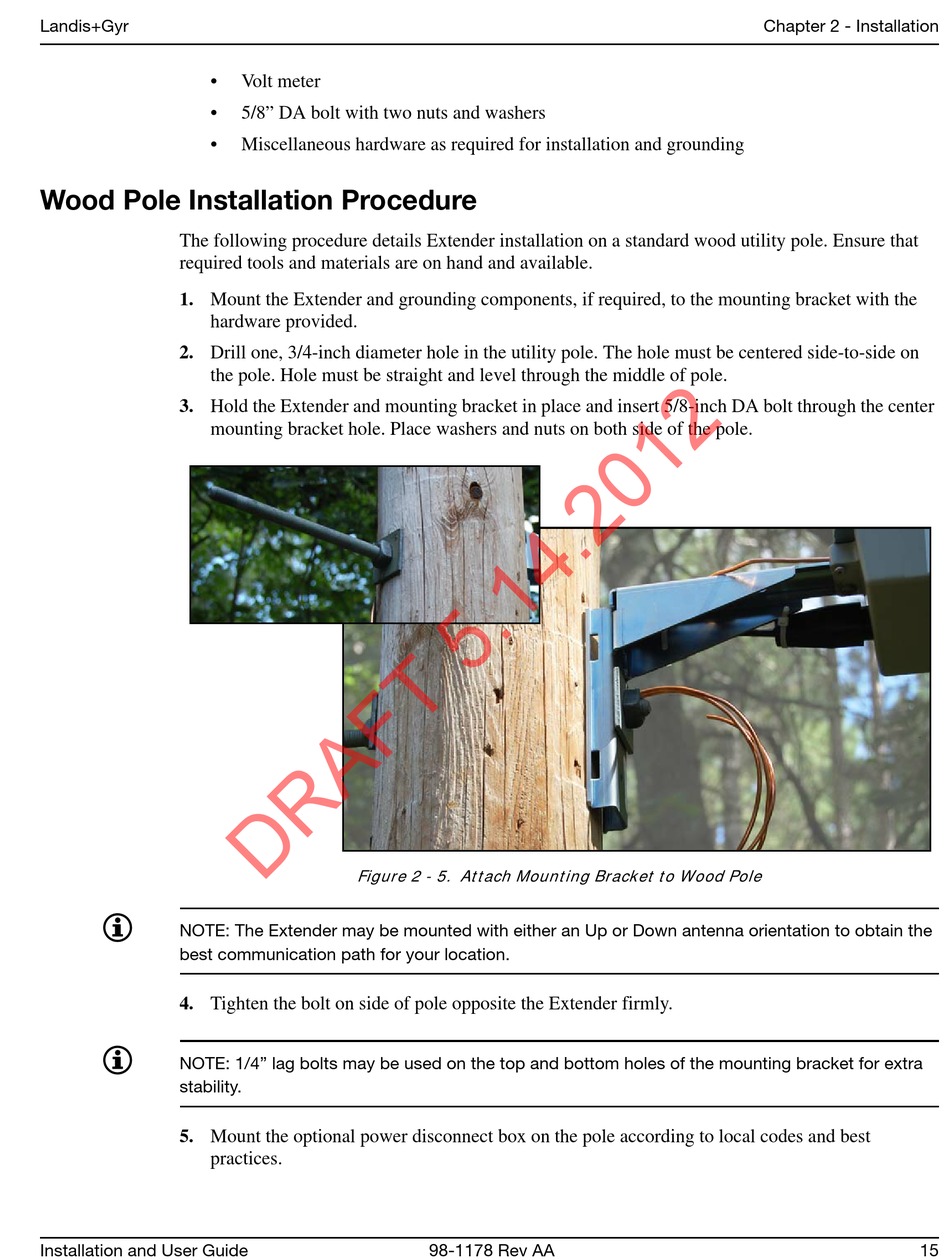

Wood Pole Installation Procedure
The following procedure details Extender installation on a standard wood utility pole. Ensure that
required tools and materials are on hand and available.
1. Mount the Extender and grounding components, if required, to the mounting bracket with the
hardware provided.
2. Drill one, 3/4-inch diameter hole in the utility pole. The hole must be centered side-to-side on
the pole. Hole must be straight and level through the middle of pole.
3. Hold the Extender and mounting bracket in place and insert 5/8-inch DA bolt through the center
mounting bracket hole. Place washers and nuts on both side of the pole.
NOTE: The Extender may be mounted with either an Up or Down antenna orientation to obtain the
best communication path for your location.
4. Tighten the bolt on side of pole opposite the Extender firmly.
NOTE: 1/4" lag bolts may be used on the top and bottom holes of the mounting bracket for extra
stability.
5. Mount the optional power disconnect box on the pole according to local codes and best
practices.
Installation and User Guide
Volt meter
5/8" DA bolt with two nuts and washers
Miscellaneous hardware as required for installation and grounding
Figure 2 - 5. Attach Mounting Bracket to Wood Pole
98-1178 Rev AA
Chapter 2 - Installation
15
