8. Securely hand tighten the included antenna on the antenna mounting connector of the Extender.
•
•
9. Connect the grounding wire, if required, to the pole ground or neutral ground as local code
allows. If no ground wire is present, install a 8' by 5/8" copper clad steel ground rod and connect
with the proper clamp. Attach the ground wire to the pole with the proper staples and standard
spacing.
A. Be sure to avoid right angle or sharp bends in routing the ground wire.
B. Bond this ground wire to the power neutral if local rules require.
Installation and User Guide
If the Extender is mounted upside down (antenna up), always inspect and verify the presence
of an O-ring on the antenna base. The O-ring is included with the antenna. Verify that the O-
ring has no physical deformities that could compromise the water tight seal at the base of the
antenna.
The antenna should never be more than 10° off in any direction from being perpendicular to
the ground.

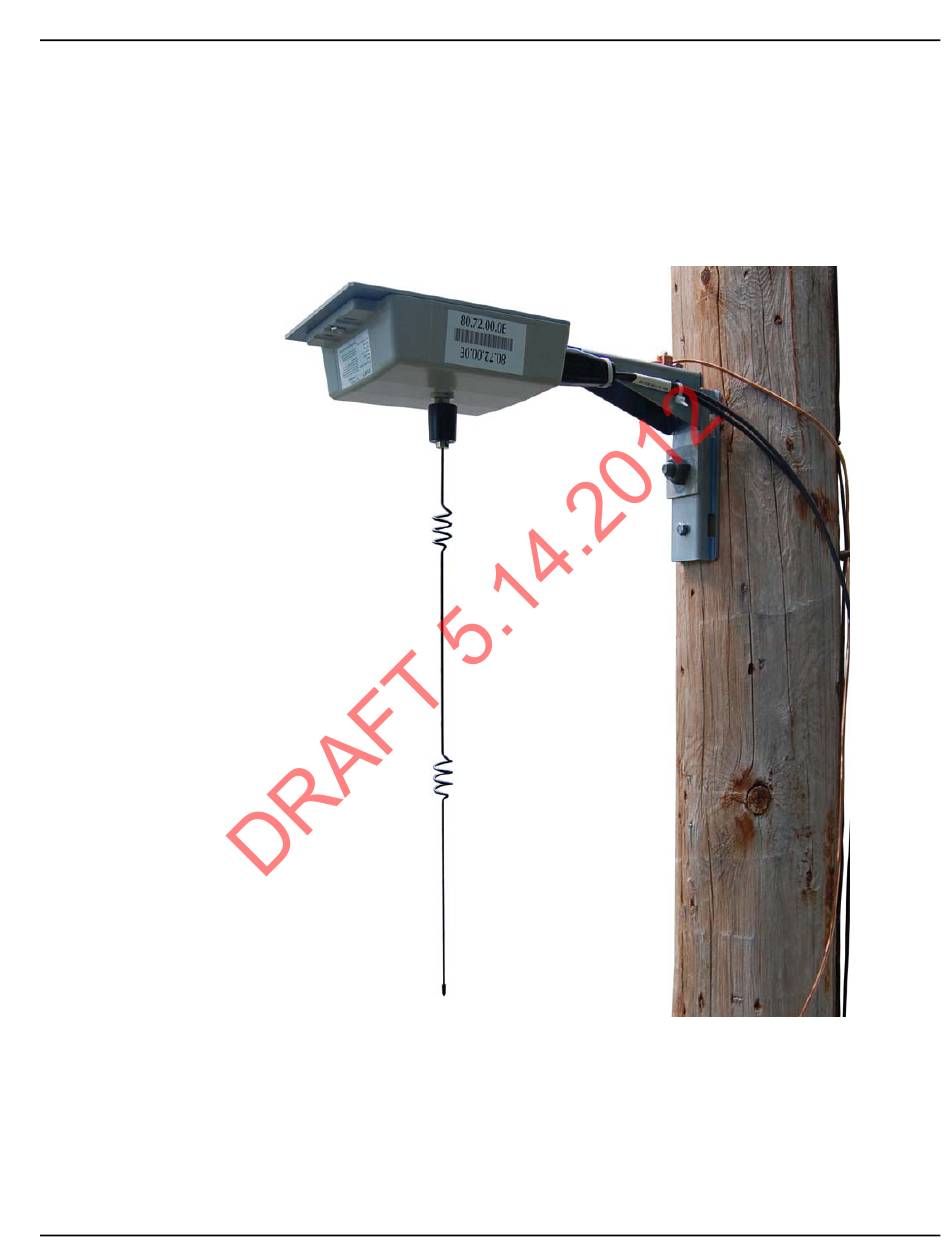

Figure 2 - 7. Attach Antenna
