Description
45-1215 Components
Series IV Mesh Extender, Packaging, Without Power Cable
45-1216 Components
Landis+Gyr RF Mesh Extender Mounting Kit, Street Light Arm
45-1098 Components
Landis+Gyr RF Mesh Extender Hardware Kit
45-1093 Components
Landis+Gyr RF Mesh Extender Antenna, Whip, 5 dBi 915 MHz, N Type
Landis+Gyr RF Mesh Extender AC Power Cable Assembly, 30'
Landis+Gyr RF Mesh Extender Streetlight Cable Assembly, 6'
Landis+Gyr RF Mesh Extender Streetlight Cable Assembly, 18'

NOTE: 45-1216 does not come with a power cable. Your choice of optional cable assemblies
available are 19-1214, 19-1216, or 19-1221.
Installation and User Guide

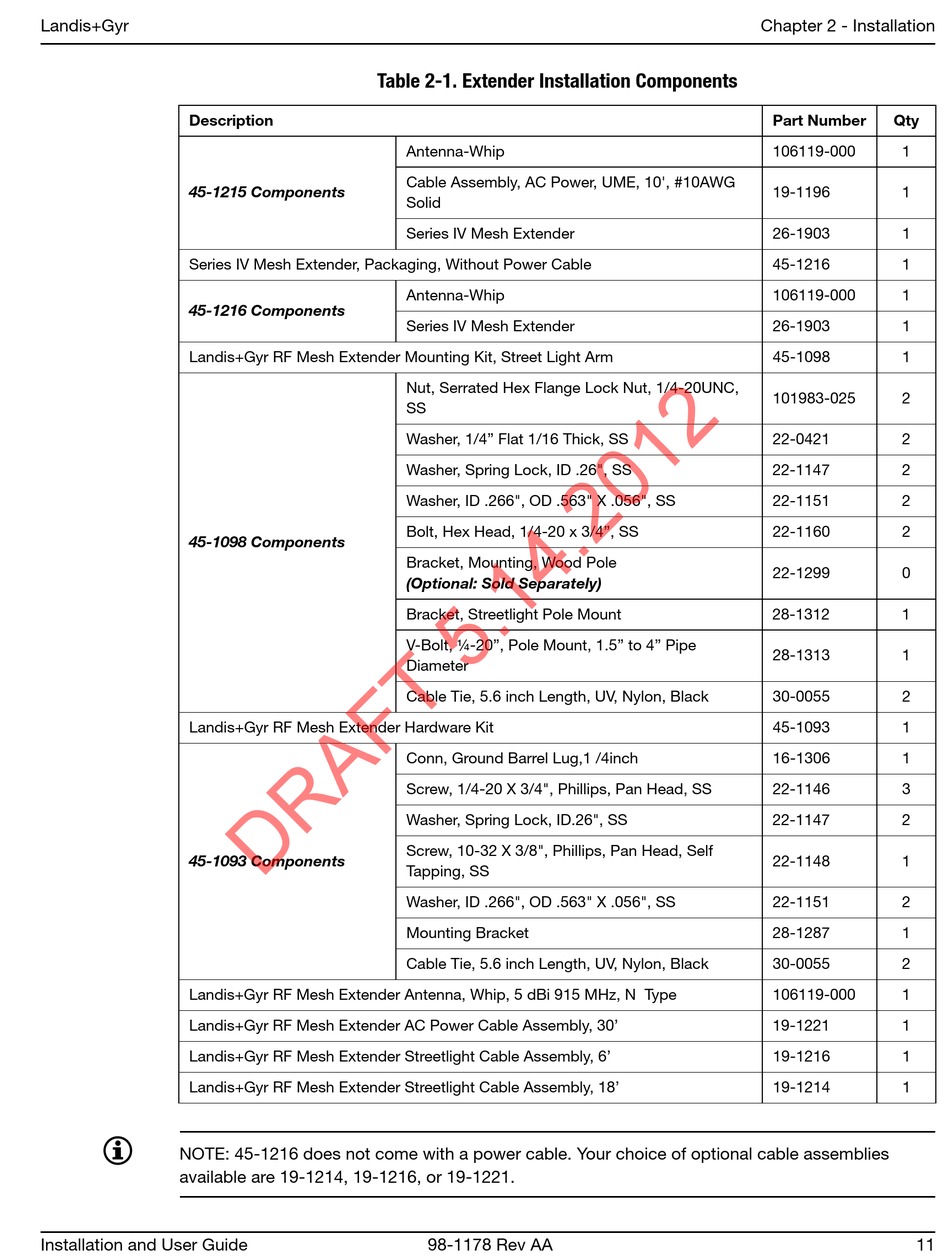

Table 2-1. Extender Installation Components
Antenna-Whip
Cable Assembly, AC Power, UME, 10', #10AWG
Solid
Series IV Mesh Extender
Antenna-Whip
Series IV Mesh Extender
Nut, Serrated Hex Flange Lock Nut, 1/4-20UNC,
SS
Washer, 1/4" Flat 1/16 Thick, SS
Washer, Spring Lock, ID .26", SS
Washer, ID .266", OD .563" X .056", SS
Bolt, Hex Head, 1/4-20 x 3/4", SS
Bracket, Mounting, Wood Pole
(Optional: Sold Separately)
Bracket, Streetlight Pole Mount
V-Bolt, ¼-20", Pole Mount, 1.5" to 4" Pipe
Diameter
Cable Tie, 5.6 inch Length, UV, Nylon, Black
Conn, Ground Barrel Lug,1 /4inch
Screw, 1/4-20 X 3/4", Phillips, Pan Head, SS
Washer, Spring Lock, ID.26", SS
Screw, 10-32 X 3/8", Phillips, Pan Head, Self
Tapping, SS
Washer, ID .266", OD .563" X .056", SS
Mounting Bracket
Cable Tie, 5.6 inch Length, UV, Nylon, Black
98-1178 Rev AA
Chapter 2 - Installation
Part Number Qty
106119-000 1
19-1196 1
26-1903 1
45-1216 1
106119-000 1
26-1903 1
45-1098 1
101983-025 2
22-0421 2
22-1147 2
22-1151 2
22-1160 2
22-1299 0
28-1312 1
28-1313 1
30-0055 2
45-1093 1
16-1306 1
22-1146 3
22-1147 2
22-1148 1
22-1151 2
28-1287 1
30-0055 2
106119-000 1
19-1221 1
19-1216 1
19-1214 1
