Chapter 2 - Installation
6. Attach the wires from the Extender to the screws on the terminal blocks inside the power
disconnect box. Provide enough tension relief and a drip loop on the power cable below the
power disconnnect box.
•
7. With the power disconnect switch in the OFF (open) position, make the connection between the
Extender, power disconnect switch, and power source according to local codes and best
practices.
•
16

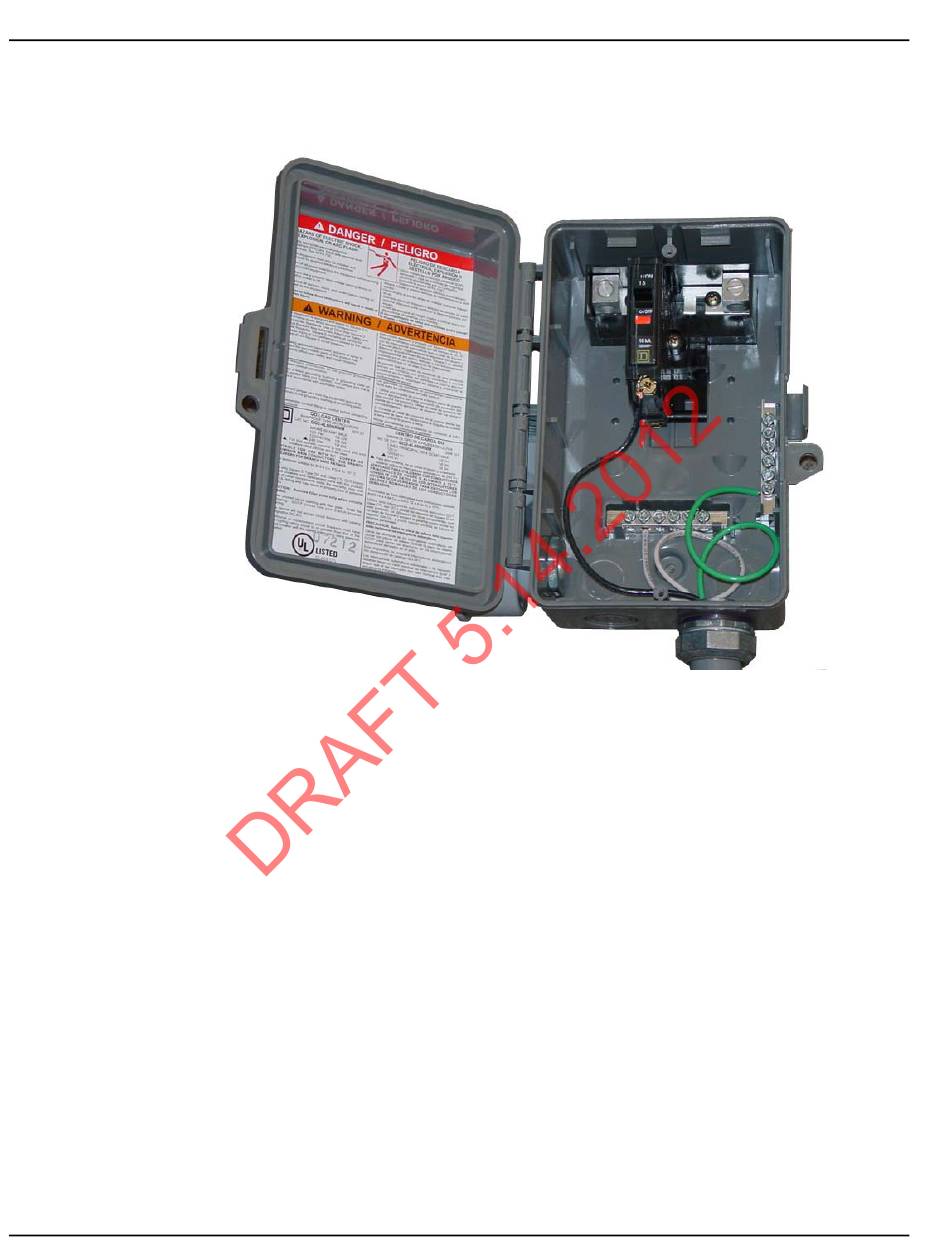

Figure 2 - 6. Sample Power Disconnect Option
For any cables in an assembly, allow some slack to rest below metal parts. The slack is
called a "drip loop". With a drip loop, water from rain and condensation drips from the cable
without damaging associated mechanical equipment.
Installations where the power cable is wired directly to the power source must be sealed with
waterproofing compound to prevent water ingress into the power cable.
