Chapter 4 - Extender Configuration in Command Center
2. Click the CSV Template link.
3. Select Save and designate the file location.
4. Open up the saved .CSV file with Microsoft Excel.
5. Fill in the columns with the appropriate data. Each row in the document represents one Extender
(or Endpoint) and should only contain data related to that specific unit. Required fields are
Customer Number and AMR Serial Number.
6. Click the Save button and close your file.

Import the Meter Manufacturer File

1. Click Operations > Import > Meter Manufacturer Data to display the Import Meter
Manufacturer Data screen.
2. Click the Browse button to navigate to, and select, the file that you just created.
3. Click the Save button to import the file into the database.
The Meter Manufacturer Data Import (Upload Complete) window will appear displaying the
Error Summary (if applicable) and Successful Entries. Figure 4 - 2
4. Successful entries will be added to inventory and will be displayed on the dashboard as
Inventory status.

Generating the Import Installation File (IIF) - Optional

When a Extender has been physically installed in the field, certain data may be reported back to the
Command Center staff in order to generate the IIF. The IIF is not required when deploying a layered
network, but provides useful data for monitoring deployments.
30

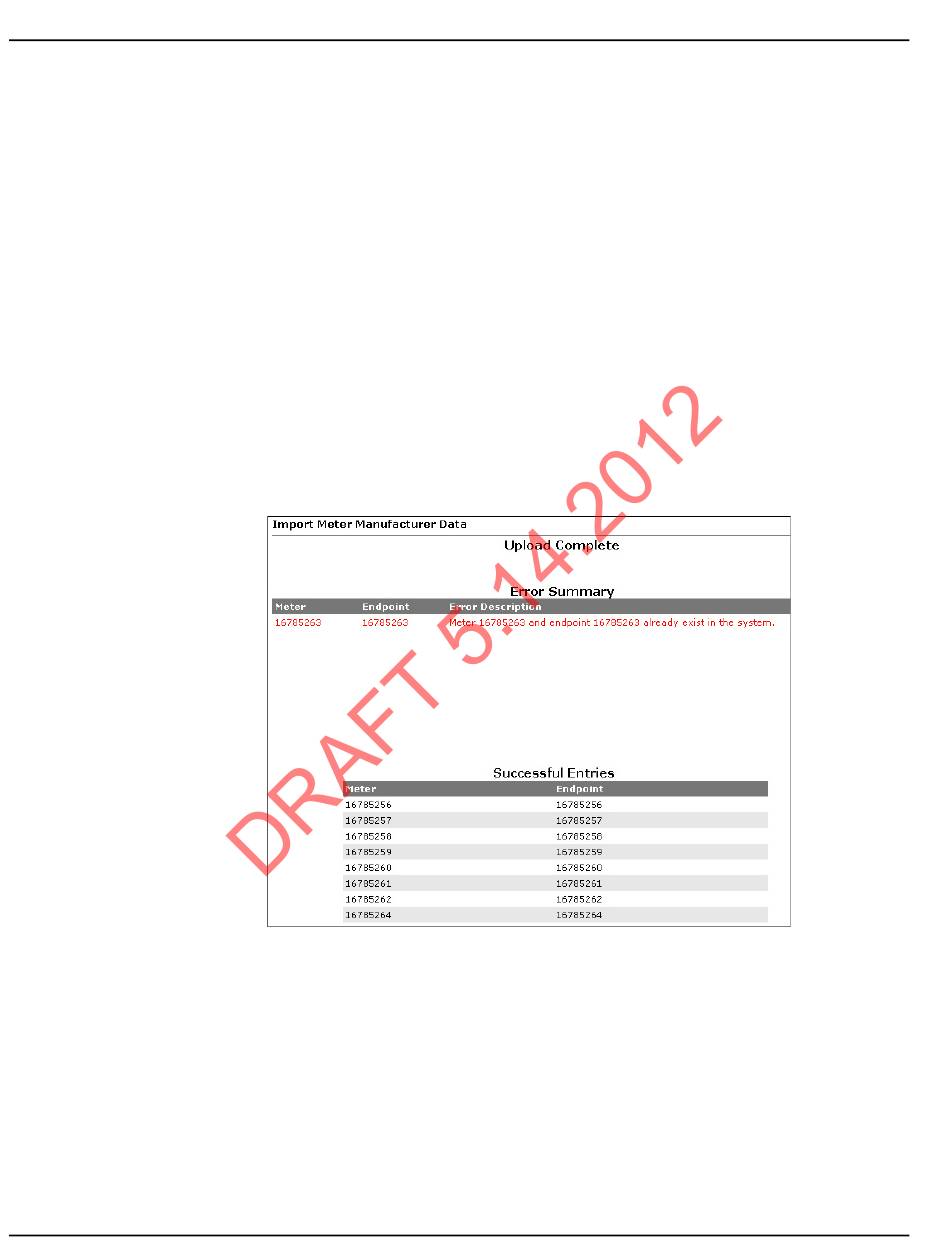

Figure 4 - 2. Upload Complete Window
